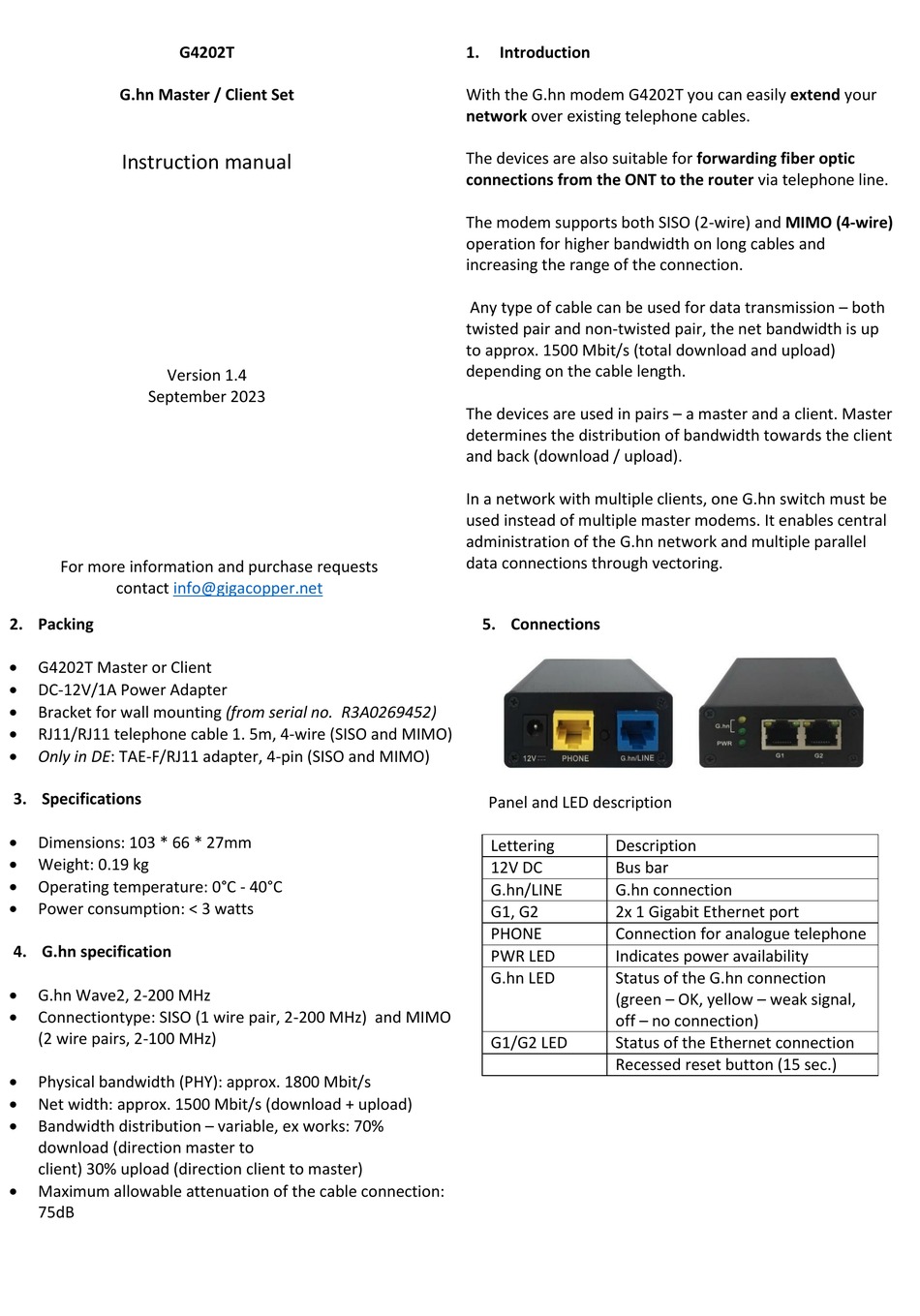

GIGA G4202T Instruction Manual

G4202T
G.hn Master / Client Set
Instruction manual
Version 1.4
September 2023
For more information and purchase requests
contact info@gigacopper.net
2. Packing

G4202T Master or Client

DC-12V/1A Power Adapter

Bracket for wall mounting (from serial no. R3A0269452)

RJ11/RJ11 telephone cable 1. 5m, 4-wire (SISO and MIMO)

Only in DE: TAE-F/RJ11 adapter, 4-pin (SISO and MIMO)
3. Specifications

Dimensions: 103 * 66 * 27mm

Weight: 0.19 kg

Operating temperature: 0°C - 40°C

Power consumption: < 3 watts
4. G.hn specification

G.hn Wave2, 2-200 MHz

Connectiontype: SISO (1 wire pair, 2-200 MHz) and MIMO
(2 wire pairs, 2-100 MHz)

Physical bandwidth (PHY): approx. 1800 Mbit/s

Net width: approx. 1500 Mbit/s (download + upload)

Bandwidth distribution – variable, ex works: 70%
download (direction master to
client) 30% upload (direction client to master)

Maximum allowable attenuation of the cable connection:
75dB
1. Introduction
With the G.hn modem G4202T you can easily extend your
network over existing telephone cables.
The devices are also suitable for forwarding fiber optic
connections from the ONT to the router via telephone line.
The modem supports both SISO (2-wire) and MIMO (4-wire)
operation for higher bandwidth on long cables and
increasing the range of the connection.
Any type of cable can be used for data transmission – both
twisted pair and non-twisted pair, the net bandwidth is up
to approx. 1500 Mbit/s (total download and upload)
depending on the cable length.
The devices are used in pairs – a master and a client. Master
determines the distribution of bandwidth towards the client
and back (download / upload).
In a network with multiple clients, one G.hn switch must be
used instead of multiple master modems. It enables central
administration of the G.hn network and multiple parallel
data connections through vectoring.
5. Connections
Panel and LED description
Lettering Description
12V DC Bus bar
G.hn/LINE G.hn connection
G1, G2 2x 1 Gigabit Ethernet port
PHONE Connection for analogue telephone
PWR LED Indicates power availability
G.hn LED Status of the G.hn connection
(green – OK, yellow – weak signal,
off – no connection)
G1/G2 LED Status of the Ethernet connection
Recessed reset button (15 sec.)
