Before You Begin
Observe all local plumbing and building codes.
Follow local regulations for plumbing and construction to ensure compliance.
Shut off the water supplies.
Ensure water supply is turned off before commencing installation or maintenance.

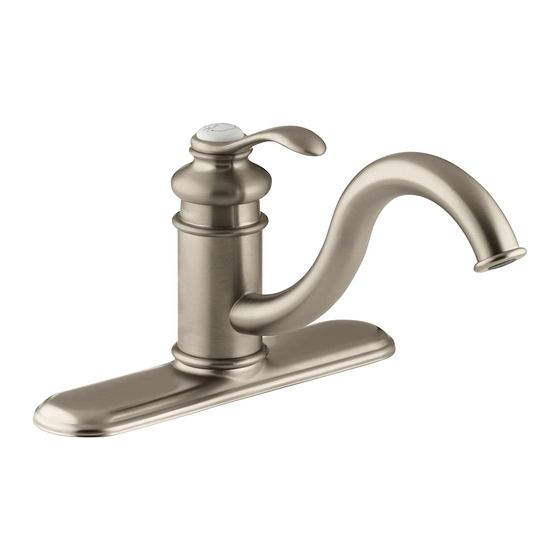

1. Faucet Installation
Place the undercover on the bottom of the large escutcheon.
For three-hole sink installations, position the undercover beneath the large escutcheon.
Secure the appropriate escutcheon to the faucet body with the screws provided.
Attach the correct escutcheon to the faucet body using the supplied screws.
Apply a bead of plumbers putty or other sealant to the underside of the undercover or single hole escutcheon according to the manufacturer's instructions.
Apply sealant to the underside of the undercover or single hole escutcheon as per manufacturer guidelines.
Feed the faucet supply inlets and hose inlet through the sink hole and position the faucet.
Pass supply inlets and hose inlet through the sink opening and place the faucet.
Slide the bracket and washer over the stud mounted to the faucet body. Tighten the nut securely to the stud.
Mount bracket and washer onto the faucet stud and tighten the nut securely.
Remove any excess putty or sealant.
Clean away any surplus plumber's putty or sealant from the installation area.
2. Handspray Installation
Apply a bead of plumbers putty or other sealant to the underside of the spray holder according to the manufacturer's instructions.
Apply sealant to the spray holder underside following manufacturer's guidance.
Insert the handspray hose through the spray holder.
Guide the handspray hose into its designated holder.
Hand tighten the nut to the spray holder from under the sink.
Secure the nut to the spray holder by hand from beneath the sink.
Remove any excess putty.
Wipe away any excess plumber's putty after installation.
Slide the O-ring past the hose guide threads.
Position the O-ring on the hose guide threads for integral handspray.
Insert the hose guide through the escutcheon hole.
For integral handspray, insert the hose guide into the escutcheon opening.
Tighten the nut to the handspray holder from under the sink.
Secure the nut to the handspray holder from beneath the sink.
Position the faucet supply hoses to allow access for the spray hose connection.
Arrange faucet supply hoses to ensure easy access for spray hose connection.
Insert the handspray hose through the hose guide.
Guide the handspray hose into the designated hose guide.
Attach the hose to the hose inlet.
Connect the handspray hose to its corresponding inlet.
3. Supply Installation
Connect the supply hoses to the supply stops. Left is hot, right is cold.
Connect supply hoses to stops, noting left for hot and right for cold water.
Tighten all connections.
Ensure all water supply connections are securely tightened.
4. Checkout Installation
Remove the aerator from the end of the spout by turning it counterclockwise.
Detach the spout aerator by rotating it counterclockwise.
Turn on the main water supply.
Open the primary water supply valve to restore water flow.
Open the faucet handle to the ON position.
Move the faucet handle to the 'ON' position to allow water flow.
Flush hot then cold water through the faucet for about one minute.
Run hot and cold water through the faucet for one minute to flush.
Push the faucet handle down to the OFF position.
Return the faucet handle to the 'OFF' position.
Reattach the aerator by turning it clockwise.
Reinstall the aerator by rotating it clockwise.
5. Optional Temperature Limiting Adjustment
Remove the plug button and screw from the handle.
Detach the plug button and screw from the faucet handle.
Remove the handle and bonnet from the faucet body.
Separate the handle and bonnet from the main faucet body.
Lift the valve stem up and off the stop tab. The water will turn on.
Lift the valve stem from the stop tab; water will begin to flow.
Align the stop tab with the mounting nut to establish the maximum temperature.
Align the stop tab with the mounting nut to set the maximum temperature limit.
Mark the maximum temperature on the mounting nut with a marker or pencil.
Indicate the maximum temperature setting on the mounting nut with a marker.
Lift up the indexer and disk to clear the splines.
Raise the indexer and disk to expose the splines for adjustment.
Turn the indexer, disk and valve stem counterclockwise, until the temperature is properly adjusted.
Rotate indexer, disk, and valve stem counterclockwise to adjust temperature.
Push down the indexer and disk to cover the splines after the temperature is adjusted. Ensure that the disk is fully snapped into the indexer.
Lower indexer and disk to cover splines after adjustment, ensuring proper seating.
Push the valve stem down onto the stop tab. The water will turn off.
Press the valve stem down onto the stop tab to stop water flow.
Reinstall the bonnet, handle, screw, and plug button.
Reassemble the bonnet, handle, screw, and plug button.
Important Information
Observe all local plumbing and building codes.
Adhere to all local plumbing and building codes for safe and compliant installation.
The appearance of the pump assembly may differ from the illustration. The installation instructions still apply.
Pump assembly appearance may vary; installation instructions remain applicable.
Care and Cleaning
Use a mild detergent such as liquid dishwashing soap and warm water for cleaning. Do not use abrasive cleaners that may scratch or dull the surface.
Clean with mild detergent and warm water; avoid abrasive cleaners that can scratch or dull the surface.
Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
Test cleaning solutions on a hidden area before full surface application.
Do not allow cleaners to sit or soak on the surface.
Avoid letting cleaning agents remain on the surface for extended periods.
Wipe surfaces clean and rinse completely with water immediately after cleaner application. Rinse and dry any overspray that lands on nearby surfaces.
Clean and rinse surfaces immediately after applying cleaner, and dry overspray.
Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring pad to clean surfaces.
Use soft, damp materials; never abrasive brushes or scouring pads for cleaning.
