Summary of Contents for RRS BH-40
- Page 1 BALL HEAD User Manual...
- Page 2 (5) years from the date of purchase. Protected by US Patents ®™© 1990-2021 Really Right Stuff, LLC. All rights reserved. Really Right Stuff, LLC Trademarks: Really Right Stuff ® , RRS ® , Ground Pod ® , Rock Claw ® , Anvil™, Ascend™, Versa™, SureGrip™...
- Page 3 CONTENTS 03 | Maintenance 04 | General Use 07 | BH-55 08 | BH-40 09 | BH-30...
-
Page 5: Care & Maintenance
LUBRICATION RRS ball heads are lubricated at the factory and parts that require lubrication are sealed. NO LUBRICATION IS REQUIRED BY THE USER. DO NOT LUBRICATE THE BALL as this will decrease the lock- up capacity. - Page 6 Tighten ball head onto tripod snugly, but do not over-torque or it will be difficult to remove. Reposition Main Lock T-Lever* *Non-applicable to BH-55 Pull the T-Lever out. Rotate T-Lever to new position. Re-seat the T-Lever back in.
- Page 7 Adjust the Drag Set* *Non-applicable to BH-30 Remove your camera or hold it in place. Loosen the Main Lock Knob or T-Lever by rotating in the opposite direction of the arrow (counter-clockwise). Tighten the Main Lock Knob or T-Lever to your preferred amount of resistance by turning in the same direction of the Arrow and Lock symbol (clockwise).
- Page 9 BH-55 RRS 1.5" Dovetail Clamp Drag Set Knob Pan Lock Knob Panning Base Main Lock Knob...

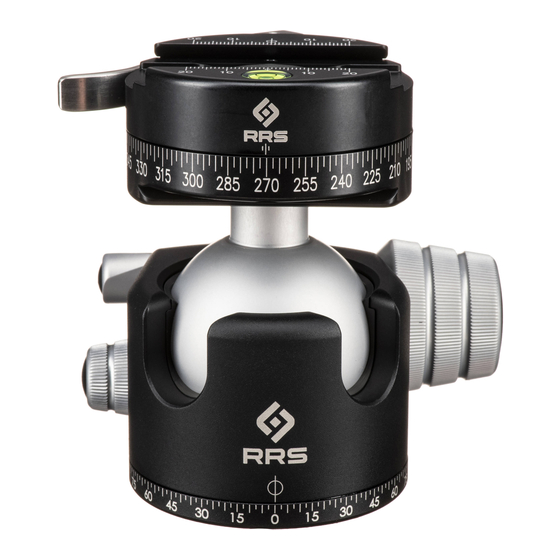

- Page 10 BH-40 RRS 1.5" Dovetail Clamp Drag Set Knob Pan Lock Knob Panning Base Main T-Lock Lever...
- Page 11 BH-30 RRS 1.5" Dovetail Clamp Pan Lock Knob Panning Base Main T-Lock Lever...
