RRS B85-QR Quick Start Manual

1146 Farmhouse Lane, San Luis Obispo, CA 93401 USA
1-805-528-6321 | 1-888-777-5557
www.ReallyRightStuff.com
FLASH BRACKETS, FLASH RINGS,
PORTRAIT PERFECT PACKAGES
AND
FR-87 or FR-91
(Flash Mount
not included)
FR-87-QR
or FR-91-QR
Flash Ring
B87-QR, or B91-QR
Portrait Perfect
Package

SPECIFICATIONS:

Half-Ring Models, one Flash Mount included.............B85-QR Set, B87-QR, B91-QR
Full-Ring Models, one Flash Mount included...........................FR-87-QR, FR-91-QR
Full-Ring Models, no Flash Mount included......................................FR-87, FR-91
Flash Mount Tilt...................................180º (90º for ward, 90º backwards)
Height to Cord Mount...............................varies from 7¼ inches to 9¾ inches
Interior Clearance.......................................varies from 4-5/8 inches to 7 inches
Weight of Half-Ring Models.....................................varies from 7.4 ounces to 8.3 ounces
Weight of Full-Ring Models with Flash Mount...........varies from 10.1 ounces to 11.1 ounces
Weight of Full-Ring Models without Flash Mount..............from 6.1 to 7.2 ounces
Wei gh t o f B8 7- Q R Po r t r a i t Pe r fec t Pack a g e .. . . . . . .. . . . . .. 11.9 o u n ce s ( 3 3 7 g )
Flash Brackets include one each FA-QR1 adapter,¼"-20
hex key. Portrait Packages also include one each MPR-CL rail, M3x6mm safety stop
screw, and M2.5 hex key.
SNAP
QR Latch
1
2
5
Safety Stop
Spring-loaded
safety stop button
keeps Flash Mount
safely on Flash Ring
yet allows quick
and easy removal
without tools.

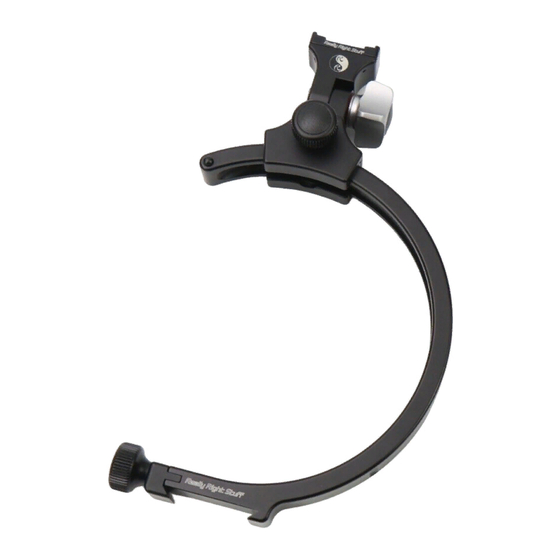

B85-QR Set,
Flash Bracket

MOUNT TO TELEPHOTO LENS FOOT

Attach Flash Bracket to Lens Plate / Rail/Replacement Foot
Loosen QR Lock Knob and slide Flash Bracket into dovetail
groove of quick-release plate. Quick-release plate must
have at least ¾" of dovetail free to mount a flash bracket.
Tighten QR Lock Knob.
3/8 flat head screw, 5/32"
x
1
backside view
5
3
4
—
6
7
telephoto lens
with collar & foot
lens collar
lens foot
Really Right Stuff
lens plate

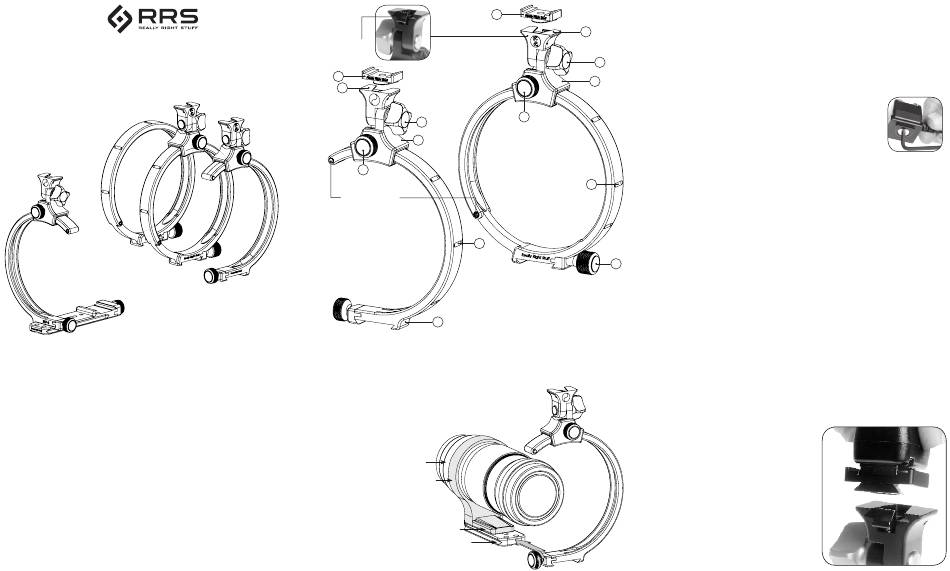

KEY FEATURES

2
Really Right Stuff flash brackets incorporate our patent pending
for fast mounting and positioning of strobes. The system has two elements that
snap together:
3
SNAP
• a QR adapter that mounts to the bottom of your strobe or accessory.
SNAP
4
• a QR mount that accepts the QR adapter.
1. SNAP
QR Adapter
— One FA-QR1 adapter is included with
each flash bracket. Adapter mates perfectly with all Canon &
Nikon* strobe cords; may also fit other strobe cords. Install
adapter to bottom of strobe cord.
2. SNAP
QR Mount
— Allows quick & secure snap-fit for strobes and flash
Accessories. To release, press QR latch at back.
6
3. Tilt Lock Knob
— Ergonomic knob drives locking mechanism to hold even the
heaviest strobe in place. Mount delivers 180° of fore-aft tilt.
4. QR Flash Mount
— Flash Mount orbits around the lens to quickly reposition
the flash above the lens in either portrait or landscape orientation. Flash
brackets marked "87" accept B87-QRFM flash mounts. Flash brackets marked
"91" accept B91-QRFM flash mounts.
7
5. Flash Mount Orbit Lock Knob
anywhere along Flash Ring.
6. Flash Ring with Detents
— Positive position Detents allow Flash Mounts to
be quickly positioned "on the go. " Rings (and Flash Mounts) are reversible.
Choose either fully circular flash rings or half-ring flash brackets.
7. Quick-Release Clamp with QR Lock Knob
Really Right Stuff lens plate, rail, or replacement foot with double-dovetail
design. In order to use your collared telephoto lens with any Really Right Stuff
clamp or flash bracket, you must fit your lens foot with a quick-release lens
plate, rail, or replacement foot; purchase separately.
SNAP
TM QR System at Work
Fasten FA-QR1 adapter to strobe cord. Press
down on the QR Latch at back of Flash Mount
and slide strobe cord into top of Flash Mount
until it snaps into place. Install other end of
strobe cord in camera's hot shoe. Mount strobe
in strobe cord.
*
The Nikon SC-29 strobe cord requires the
Really Right Stuff FA-QR29 adapter. Other
strobes may require adapters; check our
website for compatibility.
SNAP
TM
QR system
— Rotate clockwise to lock Flash Mount securely
— Mount Flash Bracket to any
