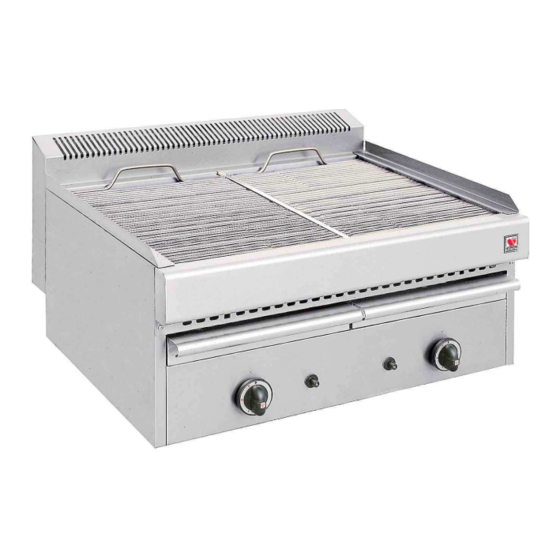

GAS WATER GRILL
MODELS
Τ10 • Τ20 • T30
USE AND MAINTENANCE INSTRUCTIONS
0051 -
SOTIRIOS D. PRODANAS & C.O.
PROFESSIONAL ELECTRIC & GAS EQUIPMENT FOR RESTAURANTS – PATISSERIES – SNACK BARS
NATIONAL ROAD KILKIS – THESSALONIKI. P.C.:61100 GALLIKOS KILKIS CROSSROADS – P.O. BOX: 40070. P.C 56404
TEL : + 30 23410
41991, 41819, - FAX:
+ 30 23410
41539 - email: info@north.gr – Http: //www.north.gr
Carefully read the manual before
installing and operating this gas heated water grill
