R R R R R O O O O O LL
LL LL S RM65b He
LL LL
S RM65b He
S RM65b He xMix
S RM65b He
S RM65b He

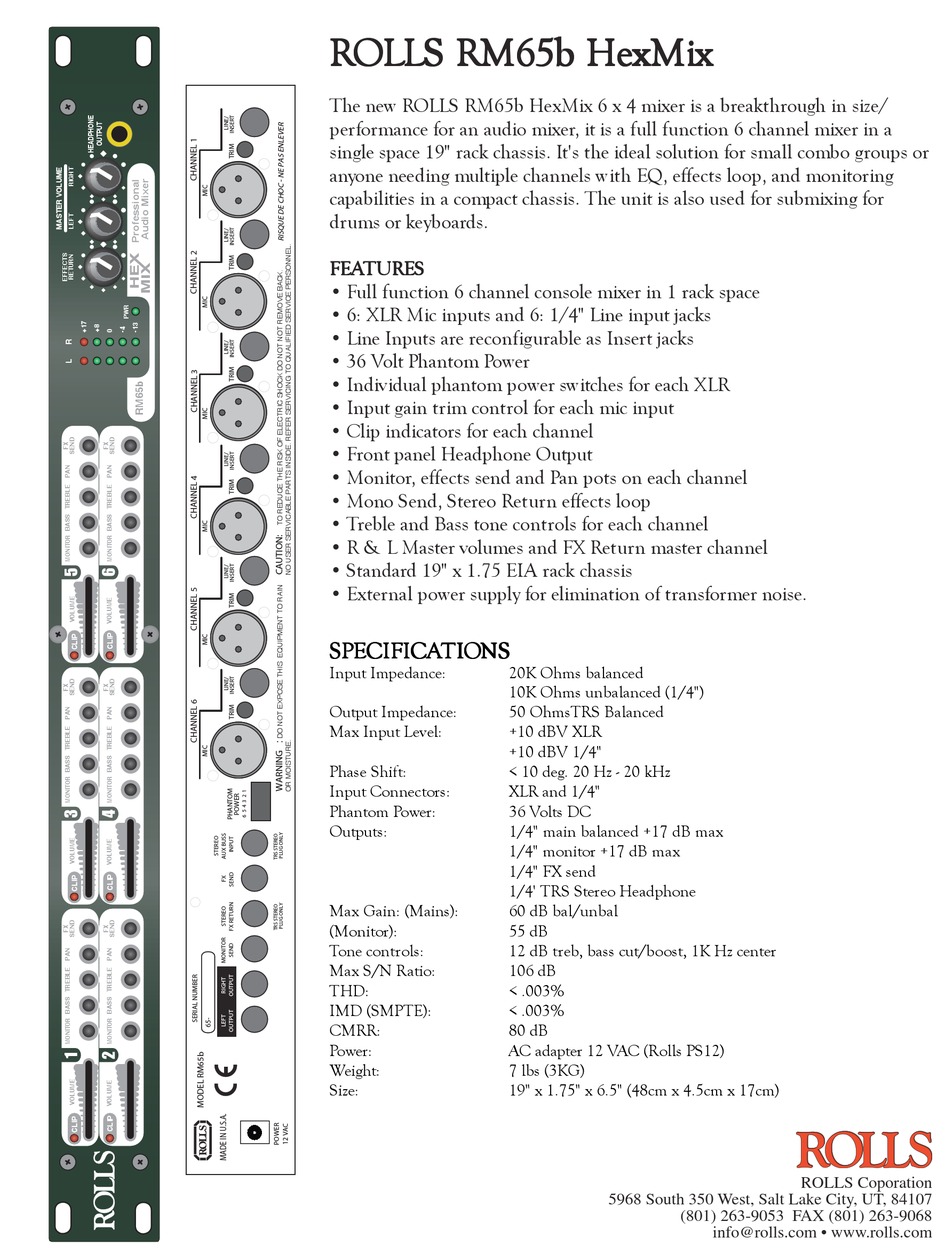

The new ROLLS RM65b HexMix 6 x 4 mixer is a breakthrough in size/
performance for an audio mixer, it is a full function 6 channel mixer in a
single space 19" rack chassis. It's the ideal solution for small combo groups or
anyone needing multiple channels with EQ, effects loop, and monitoring
capabilities in a compact chassis. The unit is also used for submixing for
drums or keyboards.
FE
FEA A A A A T T T T T URES
FE
FE
FE
URES
URES
URES
URES
• Full function 6 channel console mixer in 1 rack space
• 6: XLR Mic inputs and 6: 1/4" Line input jacks
• Line Inputs are reconfigurable as Insert jacks
• 36 Volt Phantom Power
• Individual phantom power switches for each XLR
• Input gain trim control for each mic input
• Clip indicators for each channel
• Front panel Headphone Output
• Monitor, effects send and Pan pots on each channel
• Mono Send, Stereo Return effects loop
• Treble and Bass tone controls for each channel
• R & L Master volumes and FX Return master channel
• Standard 19" x 1.75 EIA rack chassis
• External power supply for elimination of transformer noise.
SPECIFICAT T T T T I I I I I O O O O O NS
SPECIFICA
SPECIFICA
NS
NS
NS
SPECIFICA
SPECIFICA
NS
Input Impedance:
20K Ohms balanced
10K Ohms unbalanced (1/4")
Output Impedance:
50 OhmsTRS Balanced
Max Input Level:
+10 dBV XLR
+10 dBV 1/4"
Phase Shift:
< 10 deg. 20 Hz - 20 kHz
Input Connectors:
XLR and 1/4"
Phantom Power:
36 Volts DC
Outputs:
1/4" main balanced +17 dB max
1/4" monitor +17 dB max
1/4" FX send
1/4' TRS Stereo Headphone
Max Gain: (Mains):
60 dB bal/unbal
(Monitor):
55 dB
Tone controls:
12 dB treb, bass cut/boost, 1K Hz center
Max S/N Ratio:
106 dB
THD:
< .003%
IMD (SMPTE):
< .003%
CMRR:
80 dB
Power:
AC adapter 12 VAC (Rolls PS12)
Weight:
7 lbs (3KG)
Size:
19" x 1.75" x 6.5" (48cm x 4.5cm x 17cm)
xMix
xMix
xMix
xMix
5968 South 350 West, Salt Lake City, UT, 84107
(801) 263-9053 FAX (801) 263-9068
info@rolls.com • www.rolls.com
ROLLS Coporation
