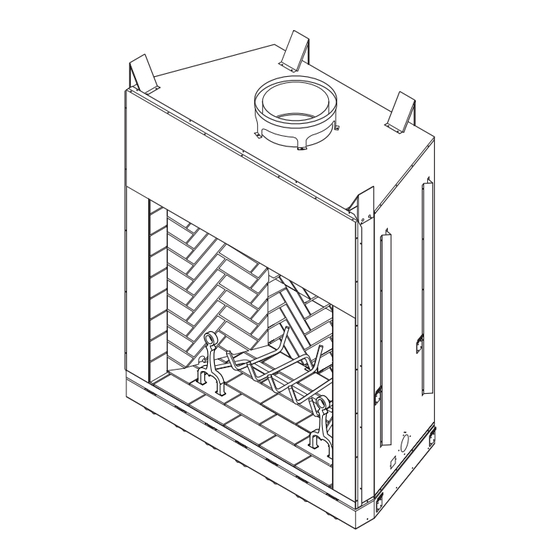

Residential Wood BuRning FiReplace
oWneR's opeRation and installation Manual
F48H(i)(R), VF48H(i)(R)
and WcM-48F
plantation
48" Wood BuRning
O-TL REPORT #114-F-23-2
FiReplace
WitH HeRRingBone
MasonRy BRick
IF FIREPLACE IS TO BE INSTALLED DIRECTLY ON
ANY COMBUSTIBLE MATERIAL, A HEARTH SPACER
IS REQUIRED.
SAVE THIS BOOK
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain re-
placement parts or accessory items when needed. Keep
it with your other important papers.
This fireplace is approved for use as a wood burning fire-
place or for use with a vented gas log approved to ANS
Z21.60, Z21.84 or RGA 2-72 standards or for use with a vent-
free gas log heater approved to ANS Z21.11.2 standard.
This wood burning fireplace complies with UL127-CAN/ULC-
S610-M87 standard as a FACTORY BUILT APPLIANCE.
FOR CANADA: The authority having jurisdiction (such
as the municipal building department, fire department,
etc.) should be contacted before installation to deter-
mine the need to obtain a permit.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
For more information, visit www.desatech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F48H(i)(R) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Desa F48H(i)(R)

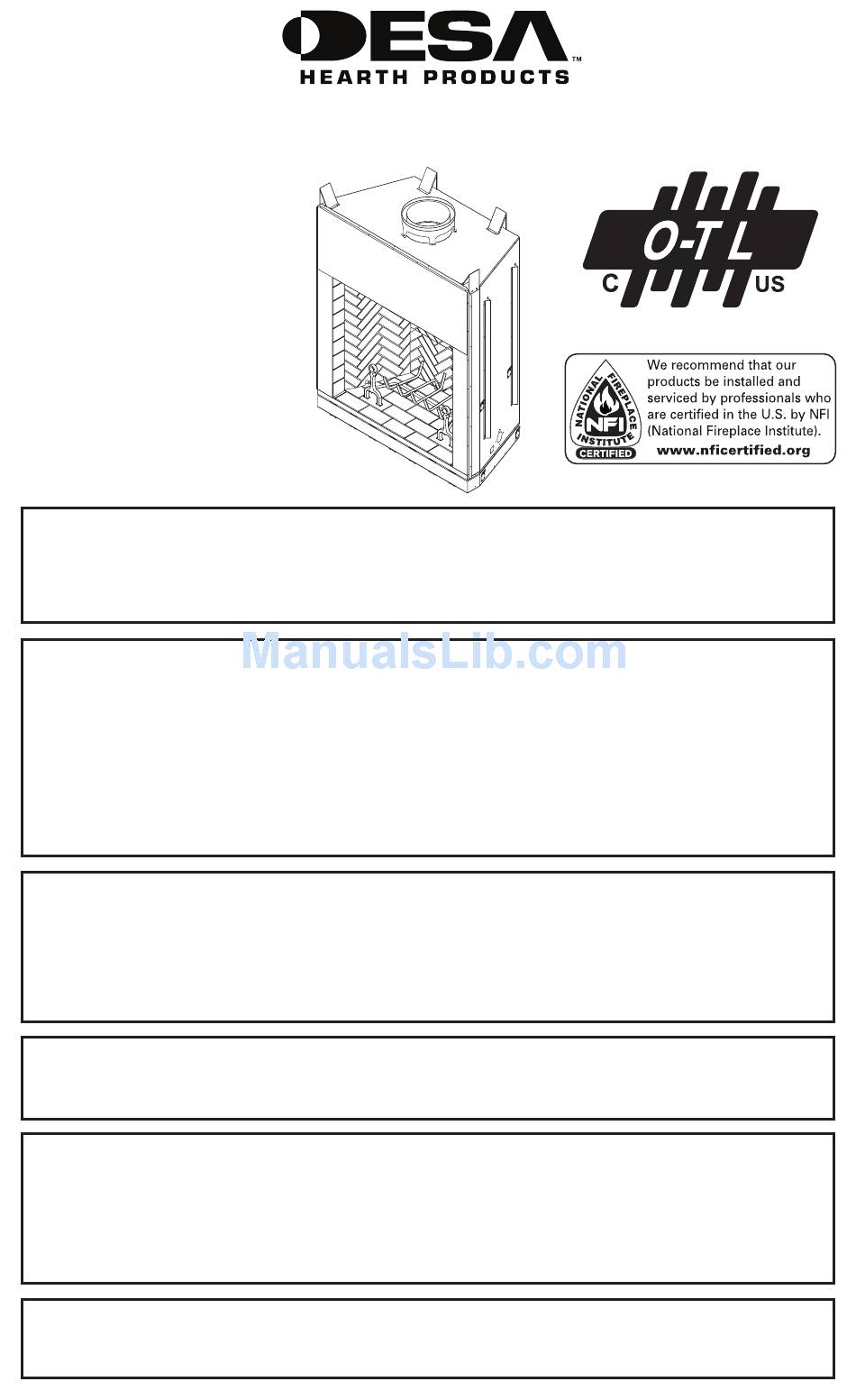

  • Page 1 Residential Wood BuRning FiReplace oWneR’s opeRation and installation Manual F48H(i)(R), VF48H(i)(R) and WcM-48F plantation 48" Wood BuRning O-TL REPORT #114-F-23-2 FiReplace WitH HeRRingBone MasonRy BRick IF FIREPLACE IS TO BE INSTALLED DIRECTLY ON ANY COMBUSTIBLE MATERIAL, A HEARTH SPACER IS REQUIRED. SAVE THIS BOOK This book is valuable.
  • Page 2: Table Of Contents

    Before beginning the installation of the fireplace, read these instructions through completely. • This DESA Heating, LLC fireplace and its components are safe when installed ac- cording to this installation manual. Unless you use DESA Heating, LLC components,...
  • Page 3: Specifications

    WARNING: Always leave glass doors fully opened or fully closed when operating fireplace. MODELS F48H(I)(R) AND VF48H(I)(R) Material on Front Mantel Applications PLANTATION FIREPLACE WITH HEARTH SPACER (REQUIRED FOR COMBUSTIBLE FLOORS) 33.5" 24" 48" 7.625" 8.875" 14.375" 17.5" 122272-01C saFety Continued to be installed on combustible material, a Hearth Spacer must...
  • Page 4: Selecting Fireplace Location

    SELECTING FIREPLACE LOCATION To determine the safest and most efficient location for the fireplace, you must take into consideration the following guidelines: 1. The location must allow for proper clear- ances (see Figures 1 and 2). 2. Consider a location where the fireplace will not be affected by drafts, air condition- ing ducts, windows or doors.
  • Page 5: Hearth Extension

    HEARTH ExTENSION A hearth extension projecting a minimum of 20" in front of and a minimum of 12" beyond each side of the fireplace opening is required to protect combustible floor construction in front of the fireplace. Fabricate a hearth extension using a material which meets the following specifications: a layer of noncom- bustible, inorganic material having a thermal...
  • Page 6: Chimney Pipe

    Before Installing in a Vented Crawl Space) Figure 5 - Outside Air Kit CHIMNEY PIPE DESA Heating, LLC chimney system consists of 12", 18", 24", 36"' and 48" snap-lock, double- wall pipe segments, planned for maximum adaptability to individual site requirements.
  • Page 7 USING ELBOW OFFSETS (30E-12DM) 1. To achieve desired offset, you may install combinations of 12", 18", 24", 36" and 48" length of double wall pipe (see offset chart and Figure 7). OFFSET RISE CHIMNEY LENGTH 12" 18" " " ELBOW SET ONLY "...
  • Page 8 Screws Figure 9 - Elbow Offset FIRESTOP SPACERS (FS-10) Firestop spacers are required at each point where chimney penetrates a floor space. Their purpose is to establish and maintain required clearance between chimney and combustible materials. When pipe passes through a framed opening into a living space above, firestop must be placed onto ceiling from below as shown in Figure 10.
  • Page 9: Chase Installations

    FLASHING INSTALLATION (V6F-10DM OR V12F-10DM) Determine flashing to be used with roof open- ing chart. Slide flashing over pipe until base is flat against roof. Replace as many shingles as needed to cover exposed area and flashing base. Secure in position by nailing through shingles (see Figure 13).
  • Page 10: Optional Gas Line Installation

    24" Min. 24" Min. Figure 16 - Multiple Chase Installation 10 FOOT RULE All flue gas outlet chimney terminations must extend a minimum of 3 feet in height above highest point where it passes through the roof and must be at least 2 feet above highest point of the roof that is within a horizontal distance of 10 feet (see Figure 17).
  • Page 11: Brick Installation

    CAUTION: All gas piping and connections must be tested for leaks after the installation is completed. After ensuring that the gas valve is on, apply soap and water solution to all connections and joints. Bubbles forming show a leak. Correct all leaks at once.
  • Page 12 HERRINGBONE BRICK INSTALLATION Rear Upper Refractory Rear Lower Refractory F054 S042 F050 F049 F049 F049 F049 F049 F049 F049 F049 F049 S012 F055 F052 S033 or S005 F025 If using Ash Lip Kit, this row of bricks will be replaced. F061 installation Continued...
  • Page 13 REAR UPPER REFRACTORY FULL (112140-02) F054R S002R S005R S006R S007R S008R S011R S013R S014R S015R S016R S017R S018R S020R LEFT REFRACTORY FULL (112140-02) F049R F050R F052R F054R F055R S005R S006R S012R S015R S016R S020R S031R S032R S033R S034R S035R S036R S037R S038R S039R...
  • Page 14: Installing Screen

    GROUTING INSTRUCTIONS Material provided: 1 or 2 - 10 lb. bags of cement (depending on model) 1 or 2 - 10 lb. bags of sand (depending on model) Material required: 1 - Piping bag 1 - Joints striker 1 - Heavy duty mixing bucket 1 - Trowel 1.
  • Page 15 Screen Fireplace Front Bracket Screen Screen Figure 21 - Installing Fireplace Screen INSTALLING GLASS DOOR AND RAIL IMPORTANT: Install top and bot- tom rails and hardware before installing glass door panels. IMPORTANT: This optional glass door kit can NOT be used with your fireplace if you have installed the optional Ash Lip Kit.
  • Page 16: Door Adjustment

    Installing Glass Doors After spring clips have been installed some adjustments may be needed. Install the doors using the following steps: 1. With bi-fold doors completely folded, insert bottom pivot pin into bottom retaining clip located at far left and far right side of bot- tom rail.
  • Page 17 Open and close damper door slowly to avoid injury. WARNING: Risk of fire! Re- place grate with DESA Heating, LLC model 109496-01 grate only. This grate has been designed to keep the operation of your fire- place safe and efficient.
  • Page 18: Technical Service

    GRATE 109496-01 (for F48 Series) 123277-01 (for WCM-48F Series) EMBER PROTECTOR - 20093 tecHnical seRVice You can also visit DESA Heating, LLC’s web site at www.desatech.com. OPTIONAL OUTSIDE AIR KIT FOR FLOOR INSTALLATION - AK4F OPTIONAL OUTSIDE AIR KIT FOR...
  • Page 19 ReplaceMent and accessoRy paRts SQUARE CHASE-TOP TERMINATION - STL-12D ROUND TOP TERMINATIONS RLT-12D AND RLT-12HT OPTIONAL ASH LIP KIT (BRICKS) AL48 - Red Brick AL48I - Ivory Brick 122272-01C Continued OPTIONAL HEARTH SPACER HS48 24" ROUND WOODNOOK - DHR-24 SCREEN - 118115-01 ROD - 110146-02 PUSH-ON NUT - 11418 www.desatech.com...
  • Page 20 DESA Heating, LLC 2701 Industrial Drive Bowling Green, KY 42101 www.desatech.com 1-866-672-6040 122272 01 NOT A UPC 122272-01 Rev. C 09/08...
