HBD-E385/E390/T39
SERVICE MANUAL
Ver. 1.0 2012.03
• HBD-E385 is the amplifi er, video, HDMI, BD/DVD/CD system, USB, LAN, wireless LAN and FM tuner section in BDV-E385.
• HBD-E390 is the amplifi er, video, HDMI, BD/DVD/CD system, USB, LAN, wireless LAN and FM tuner section in BDV-E390.
• HBD-T39 is the amplifi er, video, HDMI, BD/DVD/CD system, USB, LAN, wireless LAN and FM tuner section in BDV-T39.
Amplifier Section
BDV-E385/BDV-E390/BDV-T39
US models:
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(FTC)
Front L + Front R:
With 3 ohms loads, both
channels driven, from 180
Hz - 20 kHz; rated 50 watts
per channel minimum
RMS power, with no more
than 1% total harmonic
distortion from 250 milli
watts to rated output.
Other models:
POWER OUTPUT (rated)
Front L/Front R:
75 W + 75 W (at 3 ohms,
1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Surround L/Surround R:
125 W (per channel at
3 ohms, 1 kHz)
Center:
250 W (at 6 ohms, 1 kHz)
Subwoofer:
250 W (at 6 ohms, 80 Hz)
Inputs (Analog)
AUDIO (AUDIO IN)
Sensitivity: 1 V/400 mV
Inputs (Digital)
TV (Audio Return Channel/OPTICAL)
Supported formats: LPCM
2CH (up to 48 kHz), Dolby
Digital, DTS
9-890-584-01
Sony Corporation
2012C80-1
©
2012.03
Published by Sony EMCS (Malaysia) PG Tec

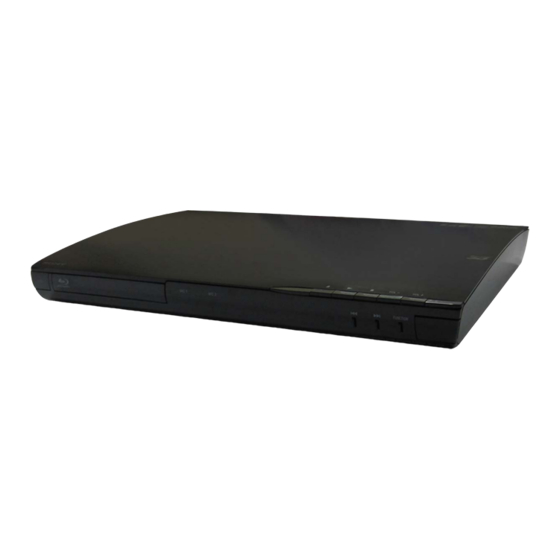

Photo: HBD-E390
SPECIFICATIONS
Video Section
Outputs
VIDEO: 1 Vp-p 75 ohms
HDMI Section
Connector
Type A (19pin)
BD/DVD/Super Audio CD/CD System
Signal format system
NTSC
USB Section
(USB) port:
Type A (For connecting
USB memory, memory
card reader, digital still
camera, and digital video
camera)
LAN Section
LAN (100) terminal
100BASE-TX Terminal
Wireless LAN Section
Blu-ray Disc/DVD receiver (HBD-E390/HBD-
E385/HBD-T39)
Standards Compliance
IEEE 802.11 b/g/n
Frequency and Channel
2.4 GHz - 2.4835 GHz
[CH1 -11]
FM Tuner Section
System
PLL quartz-locked digital
synthesizer
Tuning range
87.5 MHz - 108.0 MHz
(100 kHz step)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Canadian Model
Model Name Using Similar Mechanism
Mechanism Type
Optical Pick-up Block Name
General
Power requirements
Power consumption
BDV-E385/BDV-E390/
BDV-T39
Dimensions (approx.)
Mass (approx.)
Design and specifications are subject to change
without notice.
Standby power consumption 0.3W.
Over 85% power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
BLU-RAY DISC/DVD RECEIVER
US Model
HBD-E385/E390/T39
HBD-E390
BDP-S390
BPX-7
KEM480AAA
120 V AC, 60 Hz
On: 130 W
Standby: 0.3 W (at the
Power Saving mode)
430 mm × 50 mm × 275
mm (17 in × 2 in ×
10
7
/
in) (w/h/d) incl.
8
projecting parts
3
2.8 kg (6 lb 2
/
oz)
4
