Accessing the Camera
Configure IP Addresses
Ensure PC and camera are in the same network segment for communication.
DHCP Server IP Assignment
Automatic IP assignment via DHCP server for camera and PC network access.
Default Camera IP Address
Manually configure PC IP to match camera's default IP for network access.
Accessing Camera via Web Browser
How to access the camera's functionalities using a web browser.
Precautions and Liability
General Safety Instructions
Read and follow all safety and operating instructions before product use.
Warning Adherence
Follow all warnings to prevent personal injury or equipment damage.
Servicing Safety
Refer servicing to qualified personnel; do not attempt self-repair.
Trademarks and Liability
Information on ACTi trademarks and manual liability, including error reporting.
Regulatory Compliance Statements
FCC Compliance Statement
Statement on FCC Part 15 compliance and potential interference.
European Community Compliance
Product compliance with European standards for IT equipment.
Detailed Safety Instructions
Cleaning and Maintenance Safety
Disconnect power before cleaning; use only recommended parts.
Installation and Servicing Safety
Install in dry areas; refer servicing for damage to qualified personnel.
Damage Requiring Service
Conditions that require immediate service and post-repair safety checks.

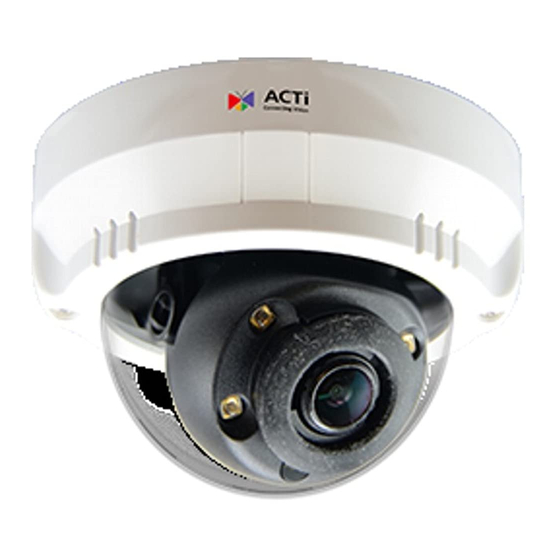

Introduction to ACTi Outdoor Mini Dome
List of Supported Camera Models
Details of supported models: A88, A92, A94, and A96.
Package Contents and Important Notes
Included Camera Items
Lists camera, screw kit, drill template, wrench, cable gland, and QIG/warranty card.
Lens Cover Protection Film Advisory
Important note: Do not remove lens cover film until after installation is complete.
Physical Description: ACTi A92
A92 Camera Components
Details of A92 camera items: Power Input, Ethernet Port, System LEDs, Memory Card Slot, Reset Button.
Physical Description: ACTi A88, A94, A96
A88, A94, A96 Camera Components
Details of A88, A94, A96 camera items: Power Input, Ethernet Port, Memory Card Slot, Reset Button.
Camera Mounting Options
Available Mounting Solutions
Describes Surface, Wall, Pendant, and Pole Mount options for camera installation.
Installation Procedures: Preparation
Step 1: Prepare for Installation
Steps for installation preparation, including drilling holes and routing cables.
Installation Procedures: Camera Installation
Step 2: Install the Camera
Procedure for physically installing the camera to the surface using screws.
Memory Card Installation
Instructions for inserting a memory card into the camera's slot.
Installation Procedures: Cable Management
Step 3: Waterproof Cables
Methods to waterproof camera cable connections for outdoor use.
Waterproofing A92 Connection
Using waterproof tape to secure the A92 camera's Ethernet connection.
Waterproofing A88, A94, A96 Connections
Using a cable gland to waterproof connections for A88, A94, A96 models.
Installation Procedures: Connectivity
Step 4: Connect to Network
Connecting the camera to the network via switch or injector.
Network Connection Diagram
Diagram illustrating network connection with PoE or power adapter.
Installation Procedures: Live View
Step 5: Access Camera Live View
Procedure to access the camera's live video feed.
Installation Procedures: Viewing Angle
Step 6: Adjust Viewing Angle
How to adjust the camera lens orientation and tilt for optimal viewing.
Installation Procedures: Finalizing
Step 7: Close Dome Cover
Securing the dome cover using the supplied hexagon wrench.
Other Installation and Accessories
Moving Camera Cable Between Holes
Guide on how to reroute the camera cable between side and bottom holes.
Power and Storage Options
Connecting a Power Adapter
Guidance on using an external power adapter for camera operation.
Installing a Memory Card
Detailed steps for inserting a memory card into the camera for local recording.
Memory Card Removal
Safely Remove Memory Card
Procedure to safely unmount and remove the memory card via the Web Configurator.
