What's in the Box:
Talon
• Talon deck with three vacuum mounts
attached
• (1) HUSKE Fork Mount Body
• (2) 1.25x1/4-20 hex head bolts
• (2) 1/4-20 nylon insert lock nuts
• (2) flat washers
• (1) Rear Wheel Strap
• (1) Crank Arm Strap
• (1) spare vacuum pump
• 5g Lube Tube
• 7/16 box wrench
• 5/32 Allen wrench

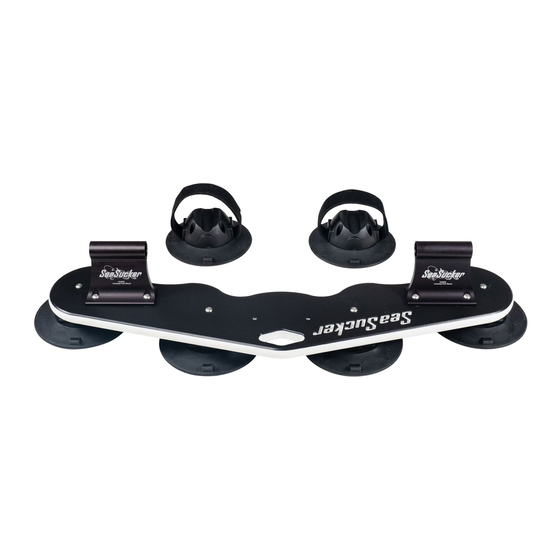

Mini Bomber
• Mini Bomber deck with four vacuum
mounts attached
• (2) HUSKE Fork Mount Bodies
• (4) 1.5x1/4-20 hex head bolts
• (4) 1/4-20 nylon insert lock nuts
• (4) flat washers
• (2) Rear Wheel Straps
• (2) Crank Arm Straps
• (1) spare vacuum pump
• 5g Lube Tube
• 7/16 box wrench
• 5/32 Allen wrench
Bomber
• Bomber deck with five vacuum mounts
attached
• (3) HUSKE Fork Mount Bodies
• (1) 3/4" Riser Block
• (4) 1.5x1/4-20 hex head bolts
• (2) 2.25x1/4-20 hex head bolts
• (6) 1/4-20 nylon insert lock nuts
• (6) flat washers
• (3) Rear Wheel Straps
• (3) Crank Arm Straps
• (1) spare vacuum pump
• 5g Lube Tube
• 7/16 box wrench
• 5/32 Allen wrench
1/21
Mini Bomber
Ce qu'll y a dans la boite:
Talon
• Plate-forme Talon avec trois ventouses
attachées
• support de fourche 9mm standards
• (2) 1/4-20 boulons à tête hexagonale
• (2) 1/4-20 contre-écrous
• (2) rondelles plates
• (1) Sangle pour roue arrière
• (1) ventouse de remplacement
• (1) Sangle de sécurité
• Tube de lubrifiant 5g
• 7/16 clé polygonale
• 5/32 clé Allen
Mini Bomber
• Plate-forme Bomber Mini avec quatre
ventouses attachées.
• (2) supports de fourche 9mm standards
• (4) 1/4-20 boulons à tête hexagonale
• (4) 1/4-20 contre-écrous
• (4) rondelles plates
• (2) Sangle pour roue arrière
• (1) ventouse de remplacement
• (2) Sangle de sécurité
• Tube de lubrifiant 5g
• 7/16 clé polygonale
• 5/32 clé Allen
Bomber
• Plate-forme Bomber avec cinq ventouses
attachées
• (3) supports de fourche standards 9mm
• (2) 3/4 " (approx. 19 mm) blocs
d'élévation
• (6) 1/4-20 boulons à tête hexagonale
• (6) 1/4-20 contre-écrous
• (6) rondelles plates
• (3) Sangle pour roue arrière
• (1) ventouse de remplacement
• (3) Sangle de sécurité
• Tube de lubrifiant 5g
• 7/16 clé polygonale
• 5/32 clé Allen
Talon
Bomber
Designed and manufactured by:
SeaSucker, LLC
Bradenton, Florida
www.SeaSucker.com
1-Bike Rack
2-Bike Rack
3 Bike Rack
