INSTALLATIEVOORSCHRIFTEN EN GEBRUIKSAANWIJZING
INSTALLATION INSTRUCTIONS AND OPERATING MANUAL
INSTALLATION ET MODE D'EMPLOI
EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG
INSTRUCCIONES DE INSTALACIÓN Y USO
ISTRUZIONI PER L'INSTALLAZIONE E L'USO
MONTERINGS- OG BRUKSANVISNING

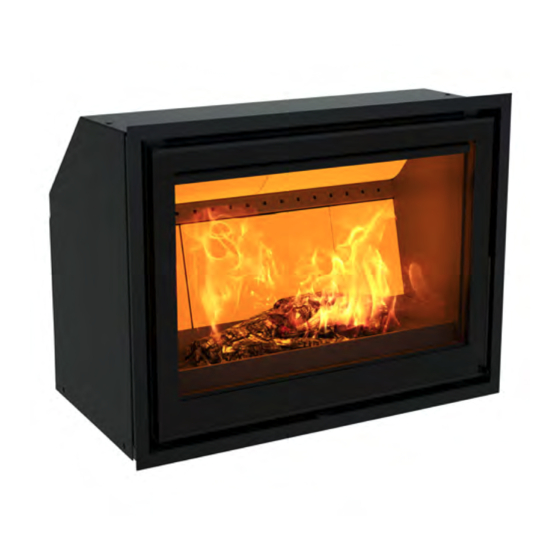

VISTA 700i
KACHEL
STOVE
POELE
FEUERSTÄTTE
ESTUFA
STUFA
PEISOVN
VISTA 800i
03.27190.000 - 10/2016
Advertisement
Table of Contents
Related Manuals for Dovre VISTA 800i
Summary of Contents for Dovre VISTA 800i
- Page 1 INSTALLATIEVOORSCHRIFTEN EN GEBRUIKSAANWIJZING KACHEL INSTALLATION INSTRUCTIONS AND OPERATING MANUAL STOVE INSTALLATION ET MODE D’EMPLOI POELE EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG FEUERSTÄTTE INSTRUCCIONES DE INSTALACIÓN Y USO ESTUFA ISTRUZIONI PER L'INSTALLAZIONE E L'USO STUFA MONTERINGS- OG BRUKSANVISNING PEISOVN VISTA 700i VISTA 800i 03.27190.000 - 10/2016...
-
Page 2: Table Of Contents
Table of contents Introduction Performance declaration Safety Installation requirements General Flue Room ventilation Floor and walls Product description Installation Preparation Building into an existing hearth Building into a new hearth Preparing the outside air connection First use Fuel Lighting Burning wood Maximum amount of wood Controlling air combustion Extinguishing the fire... -
Page 3: Introduction
Observe the following safety regulations when installing and using the appliance. In this manual, you can read how the DOVRE heating appliance can be installed, used and maintained safely. Should you require additional information or technical data, or should you experience an install- ation problem, please first contact your supplier. -
Page 4: Performance Declaration
4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address for the authorised whose mandate covers the tasks spe- cified in article 12, subsection 2: 6. - Page 5 9. Declared performance: EN 13229:2001/A2; The harmonised norm 2004/AC:2007 Performance Essential characteristics Wood Fire safety Fire resistance Distance from combustible material Rear: 100 (minimum distance in mm) Side: 100 Risk of glowing particles falling out Conform Emission of combustion products CO: 0.10% (13%O Surface temperature Conform...
- Page 6 4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address for the authorised whose mandate covers the tasks spe- cified in article 12, subsection 2: 6.
- Page 7 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...
-
Page 8: Safety
Safety Ensure that there is adequate ventilation in the room in which the appliance is installed. If vent- Please note: All safety regulations must be ilation is insufficient, combustion will be incom- complied with strictly. plete whereby toxic gases can spread through the room. -
Page 9: Room Ventilation
The flue or chimney must be airtight and well cleaned and guarantee sufficient draught. A draught/vacuum of 15 - 20 Pa during normal operation is ideal. Starting from the flue spigot, the flue must run as vertically as possible. Changes in direction and horizontal pieces disrupt the outward flow of com- bustion gases and may cause soot deposits. -
Page 10: Product Description
All flammable materials must be removed from Product description under the appliance or protected by at least a 6 cm concrete slab. Flammable walls bordering the appliance must be protected by at least a 10 cm stone wall and 5 cm insulation. Protect non-flammable walls bordering the appliance with at least 2.5 cm insulation to avoid cracking. -
Page 11: Installation
space to be built and the use of air inlet and outlet Note the location of the removable parts, so grates for convection is not necessary. that you can re-position the parts in the correct place later on. The space between the hearth and the steel convection cabinet serves as convection 1. -
Page 12: Building Into An Existing Hearth
6. Right baffle plate The fireplace insert must be isolated from the 7. Left rear inner plate mains by a 2-pole switch. 8. Centre rear inner plate Ensure that the fireplace insert is properly 9. Right rear inner plate earthed. 10. -
Page 13: Building Into A New Hearth
Placing and connecting the fireplace Building up the hearth around the fireplace. Placing and connecting the fire- place insert 1. Place the appliance at the proper height, flat and level. 2. If you are going to put an outsider frame around the appliance, you should fit the included magnets to the sides of the appliance;... - Page 14 Tapping convection air 09-200021-234 1. Remove the two push-out plates on top of the con- vection box by tapping them loose with a hammer. 2. Attach the two included connection collars (1) with 125 mm diameter to the resulting openings with the provided M8x16 bolts and M8 nuts.
-
Page 15: Preparing The Outside Air Connection
materials that conduct heat. 09.20015.057 Follow the instruction below when building the hearth: 1. Lay the floor of the hearth. Make sure the door of the appliance can swing freely over the hearth floor. 2. Build the hearth up to the smoke dome. Ensure that a clearance of 2 mm is maintained between the appliance and the masonry to accommodate the thermal expansion of the fire-... - Page 16 length (12 m) must be reduced by 1 m for each access- ory used. 09-200021-236 The outside air connection can be placed underneath 09-200021-235 or at the back. If you decide to use the outside air connection (A) or 1. Break the relevant cover from (A) at the back or (B), you must use the two screws (1) to attach the (B) underneath.
-
Page 17: Use
Never use the appliance without the fire-res- dries more easily. Store the wood under a roof istant inner plates. where the wind has free access. Do not use damp wood. Damp logs do not produce The appliance is now ready for use. heat as all the energy is used in the evaporation of moisture. -
Page 18: Burning Wood
Allowable maximum amount of fuel when using wood with a moisture content of 15%: VISTA 700i can be filled with a maximum of 2.25 kg wood every 45 minutes. VISTA 800i can be filled with a maximum of 09-20500-017 2.75 kg wood every 45 minutes. -
Page 19: Extinguishing The Fire
air inlet. If the air slide is slid completely to the right, a instead of having a low intensity fire for a long small air vent remains open to allow for post-com- period of time. bustion under the baffle plate. Regulate the air supply using the secondary air inlet. -
Page 20: Fog And Mist
Checking fire-resistant inner plates Fog and mist The fire-resistant inner plates are consumables that Fog and mist hinder the flow of flue gases through the are subject to wear and tear. Vermiculite inner plates flue. Smoke can blow back and cause a stench. If it is are fragile. - Page 21 Lubrication Although cast-iron is slightly self-lubricating, you will still need to lubricate moving parts frequently. Lubricate the moving parts (such as guide sys- tems,hinge pins, latches and air slides) with heat- resistant grease that is available in the specialist trade. Touching-up the paint finish Small areas of damaged paint finish can be touched- up with a spray can of special heat-resistant paint,...
-
Page 22: Appendix 1: Technical Data
Appendix 1: Technical data Model VISTA 700i / VISTA 800i Model 700i 800i Nominal output 10 kW 11 kW Flue connection (diameter) 150 mm 180 mm Weight 90 kg 105 kg Recommended fuel Wood Wood Fuel property, max. length wood... -
Page 23: Appendix 2: Connection Diagrams
Appendix 2: Connection diagrams The codes in the diagrams below have the following meaning: thermoswitch VISTA 700i / 800i 1 2 3 4 5 6 230 V 1. Disconnection of fan plate 2. Connection of fan plate Subject to change because of technical improvements... -
Page 24: Appendix 3: Dimensions
Appendix 3: Dimensions VISTA 700i 09-20021-239 Subject to change because of technical improvements... - Page 25 VISTA 800i 09-20021-240 Subject to change because of technical improvements...
-
Page 26: Appendix 4: Distance From Combustible Material
Appendix 4: Distance from combustible material Minimum ventilation outside the radiation range Dimensions of fireproof floor plate in centimetres 09-20020-321 Minimum dimensions of fireproof floor plate > H + 30 > 60 > H + 20 > 40 Subject to change because of technical improvements... -
Page 27: Appendix 5: Diagnosis Diagram
Appendix 5: Diagnosis diagram Problem Wood will not stay lit Gives off insufficient heat Smoke emissions into the room when adding wood Fire in appliance is too intense, is hard to adjust Deposit on the glass possible cause possible solution A cold flue usually fails to create sufficient draught. -
Page 28: Index
Index Dimensions Door sealing rope Adverse weather conditions, do not burn wood 20 Draught Aerating the fire Drying wood Air combustion control Air control Efficiency 5, 7, 22 Air inlets External air supply Air leak connecting to Extinguishing the fire removing Ash removal electric... - Page 29 necessary amount suitable Removing ash topping up unsuitable wood Sealing rope for door Secondary air inlet Glass Smoke cleaning during first use Smoke emissions into the room Softwood Heat, insufficient Solving problems Stacking logs Storing wood Inner plate vermiculite Stove glass cleaner Installing Suitable fuel dimensions...
- Page 30 requirements stove glass cleaner terms and conditions for insurance ventilation Weight Wood damp drying right sort storing Subject to change because of technical improvements...
