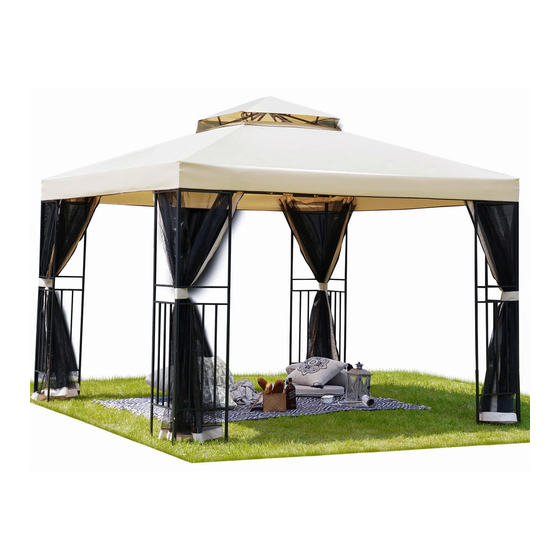

10x10 Feet GAZEBO / 3x3m PAVILLON
3
x
90MIN
!
READ & SAVE BELOW INSTRUCTIONS
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Assemble the items on a stable, non-abrasive surface such as carpeting to avoid damage.
This item is heavy. Use care when handling. May require three or four adults for safe assembly.
!
GEBRAUCHSANLEITUNG
Vergewissern Sie sich vor Beginn der Montage des Produkts, dass alle Teile vorhanden sind. Vergle-
ichen Sie die Teile mit der Packungsinhaltsliste und der Hardware-Inhaltsliste. Wenn ein Teil fehlt oder
beschädigt ist, versuchen Sie nicht, das Produkt zusammenzubauen.
Montieren Sie die Artikel auf einer stabilen, nicht scheuernden Oberfläche wie Teppichboden, um
Beschädigungen zu vermeiden.
Dieses Produkt ist schwer,Seien Sie bei der Handhabung vorsichtig. Für eine sichere Montage sind
möglicherweise zwei Erwachsene erforderlich.
1-13
Advertisement
Related Manuals for Grand PATIO PAVILLON
Summarization of Contents
General Instructions and Safety
Pre-Assembly Instructions
Crucial steps before assembly: verify all parts, use a non-abrasive surface, and note the need for multiple adults due to weight.
Care and Maintenance
Cleaning and Storage Guidelines
Use mild soap and water for cleaning. Avoid abrasive products. Store canopy in a dry area during inclement weather or winter.
Product Identification
Package Contents Overview
Visual guide to all parts included in the package, essential for checking completeness before starting assembly.
Hardware Components
Detailed listing of all hardware, including screw types (M6x16, M6x25, M6x42) and tools (Allen key, wrench) for assembly.
Assembly Instructions
Frame Assembly Steps
Initial steps involve assembling the corner frames and connecting them to form the base structure of the gazebo.
Connecting Upper Frame
Instructions for attaching the upper horizontal bars (C) using hardware (I) to the vertical frame sections.
Securing Main Structure
Steps 5 and 6 detail attaching parts (C) and (P) to the frame, using screws (N), to build the main canopy support.
Roof Support Assembly
Assembly of the roof structure using parts (D), (E), and (G), connecting them to the main frame for canopy support.
Attaching Roof Beams
Connecting additional frame pieces (E, H) to the roof structure, ensuring stability and proper alignment.
Final Frame Connections
Completing the frame by attaching parts (D) and (P) with hardware (M) to the existing structure, as shown in step 10.
Canopy Attachment
Finalizing the frame structure and preparing for the canopy installation, as shown in step 11 and 12.
Installing Canopy and Sides
Steps 13-16 cover attaching the canopy (K) and side panels (L) using relevant hardware and supports (F, Q).
Weather Protection
Instruction to remove and store the canopy during inclement weather to prevent damage.
