YORKVILLE YCV80Q Parts List

2
3
8
12
17
16
*NOTE: Replacement grilles are 'Special-Order' and are only available while the model is in production.
‡ Grilles & Support replacements are for CURRENT models only.
Parts-Serv-YCV80Q-1v0.xls
1
4
5
6/7
6/7
22/23/24
25
9
13
19
20
21
ftp.yorkville.com
# Part# Description
Labeled Components

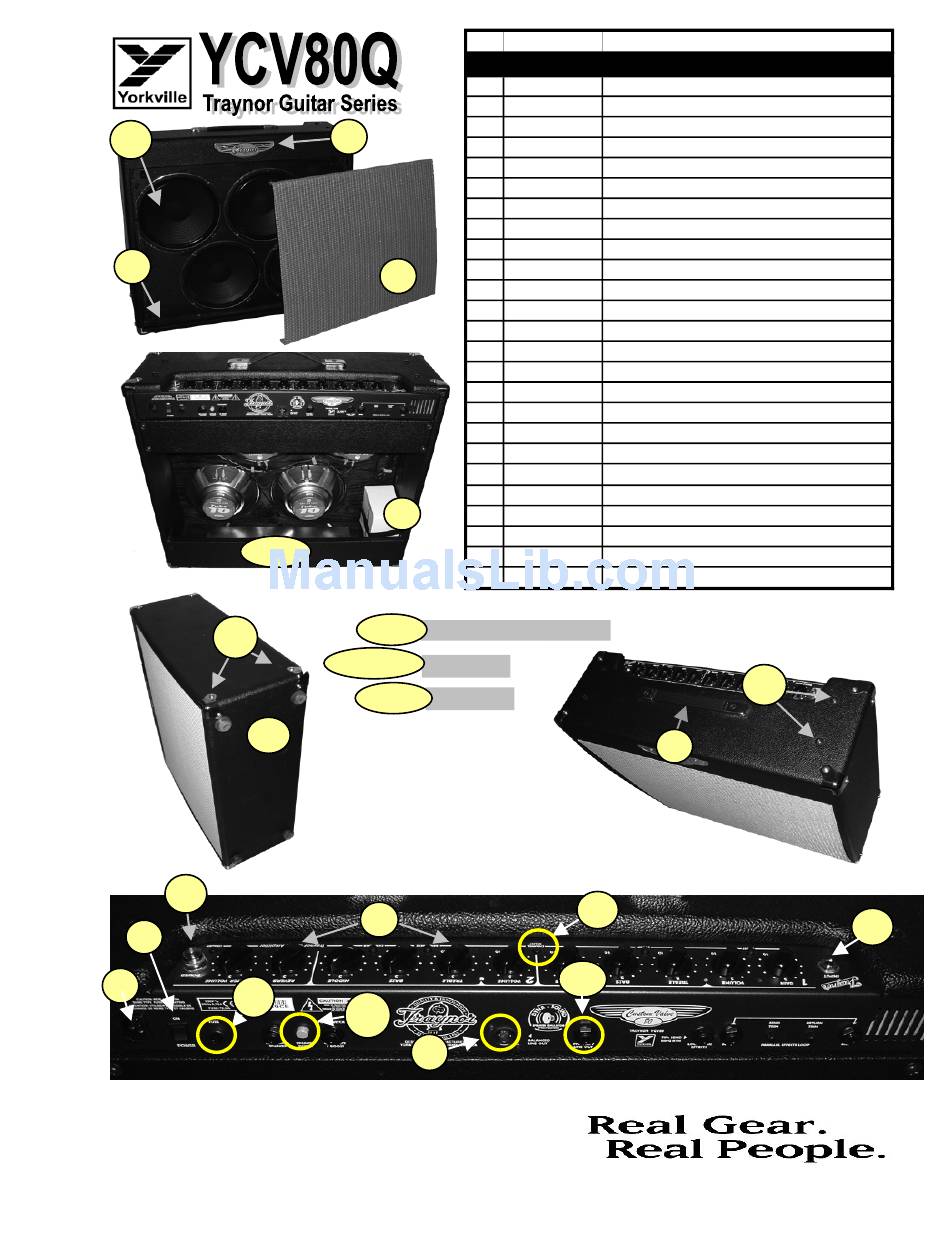

1 8260 TRAYNOR LOGO
2 TUBE10 10" 8R 30WPGM SPEAKER CELESTION (QTY: 4)
3 8461 TRIM CLIP (PLATED BLK ZINC)
4 YCV80Q GRILLE* ‡ current model only!
Z460
5
TFS-2B TRAYNOR DUAL FOOTSWCH 10' CORD
6 8522 72" RCA PREFAB CABLE STEREO
7
3537 ACC# 4EB3C1B LONG REVERB
8
8504 CORNER, 2 LEGS NOTCED LIP NICKEL PLATED
9
8522 RUBBER BUMPER WITH WASHER -SMALL-
10
8770 1/4-20 X 1 5/16 TRUSS PH MS JS5
11 8456 10.0" STRAP HANDLE, NICKEL COVERS
12
6397 JEWELED PILOT LAMP AMBER REG
13 8430 CHICKEN-BEAK KNOB
14
8633 ROUND PUSH BUTTON 1/4" BLACK
1/4" JCK PCB MT VERT STER RT SWT
15 3921
16 3663 SNAP IEC PWR SOC W/.250TAB FOR .060
3698 SPST ROKR SW QUIK 180" AC PWR
17
1/4" ALL GOLD PC MNT JK SKT
3450 & 3450NUT
18
3482 LOWPROFILE FUSEHOLDER 1/4" BUSSMANN
19
20 8638 PUSH SW BUTTON GREY
21
3923 XLR MALE PCB MT HORZ MTHOLE-V SNAP
22 3731 SPRING RETAINER FOR OUTPUT TUBE
7025A OR 7025B
23 12AX7 DUAL TRIODE PREAMP TUBE
24 6L6B 6L6GB OUTPUT POWER TUBE
25 3428 8' 3/18 SJT AC LINE CORD REMOVABLE
REVERB CABLE AND UNIT
TUBES
AC Cord
14
18
10
11
Speaker Enclosure
15
