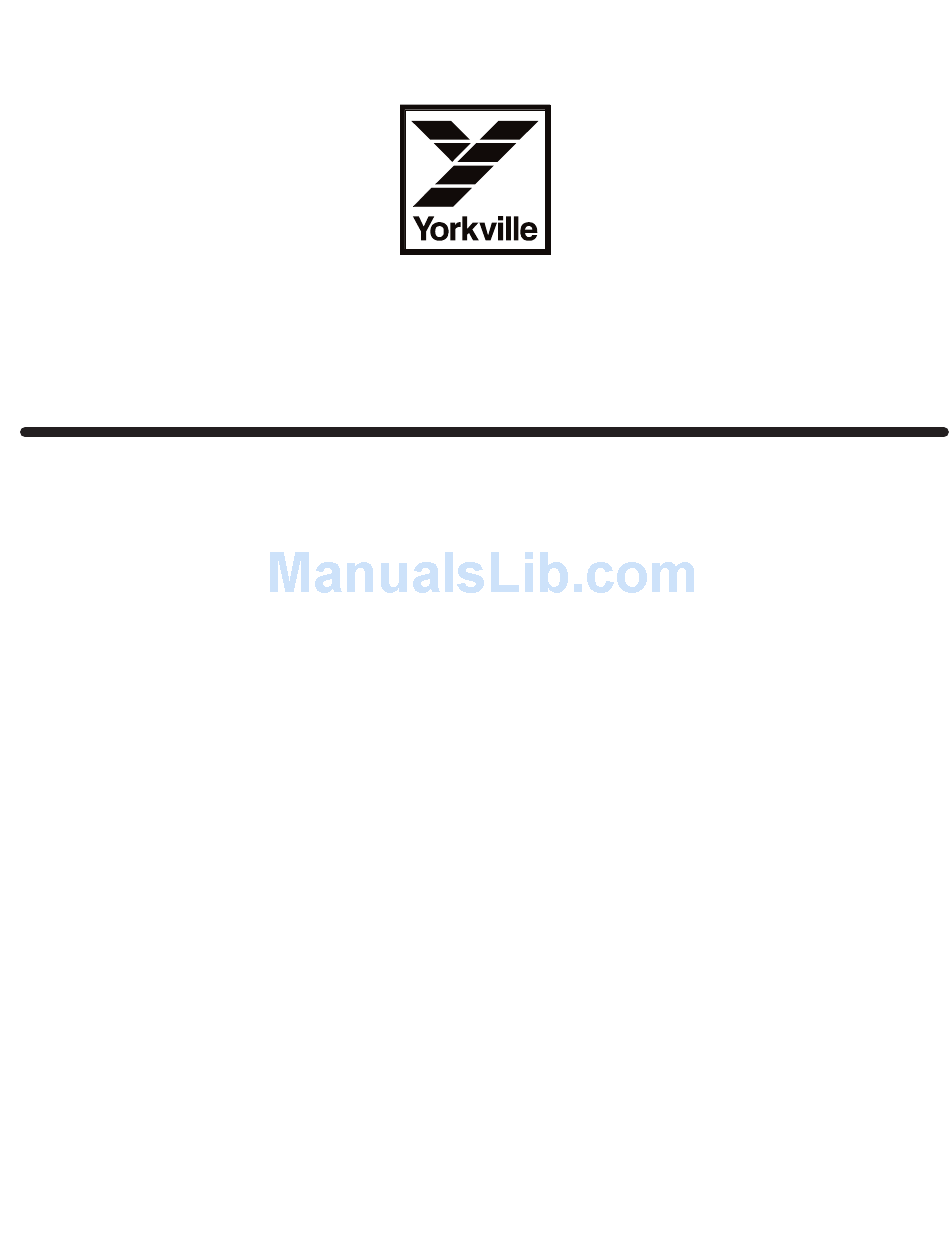

- Page 1 SERVICE MANUAL YCS412...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, The exclamation point within an equilatereal within an equilateral triangle, is intended to alert triangle is intended to alert the user to the the user to the presence of uninsulated presence of important operating and “dangerous voltage”...
- Page 3 2-column Parts List 3/25/2008 YS No. Description Qty. YS No. Description Qty. 8522 RUBBER BUMPER WITH WASHER -SMALL- 8538 RUBBER BUMPER W/ WASHER 1.375X1.375 8570 CORNER,2 LEGS NOTCED BLACK POWDER C 3450 1/4" JCK PCB MT ALL-GOLD SKT 3417 6-32 SCREW TERMINAL PC MNT SNAP-IN 8565 BAR HANDLE ALL METAL RECTANGULAR 8807...
- Page 4 IN MONO: - ONLY 1 INPUT JACK IS TO BE USED, EITHER THE 4OHM OR 16OHM INPUT #7082 12" 16R #7082 12" 16R WOOFER WOOFER TO DRIVE ALL 4 SPEAKERS IN STEREO: - EACH JACK IS 8OHMS AND DRIVES 2 SPEAKERS #7082 12"...
- Page 5 StepAndRepeat - X3@4.450Y4@1.700 BlankSize - 14250x7700 M12302V00 - LEFT + RIGHT + LEFT 4 Ohm 16 Ohm DPDT SLID 4 Ohm / 16 Ohm Gold Gold 3424 MONO STEREO Gold Gold 3417 3417 YCS412 M1230 2V00 CLINCH Pcb Mech M1230 2V00 .005"...
- Page 6 SEE LAYOUT DIAGRAM PRODUCTION NOTES M1230.PCB_DATABASE_HISTORY MODEL(S):- YCS412 1. RIGHT AND LEFT DESIGNATIONS REFER TO DATE VER# DESCRIPTION OF CHANGE "STAGE RIGHT AND STAGE LEFT" 5-JUL-2006 1.00 FIRST RELEASE (I.E. AS WHEN FACING THE CABINET SPEAKERS FROM THE FRONT) 15-FEB-5007 2.00 MOVE ROUTE GAUGE, PREVENT BREAKING THE BITS M1230 PENDING CHANGES MODEL(S):-...
- Page 7 DATE ISSUED 31-01-07 YORKVILLE SOUND WIRE LIST MODEL: YCS412 mm/dd/yy M1230 QUANTITY________/ ______ WIRE PT# COLOUR LENGTH COMMENTS WIRE CUTTING LIST WIRE PROCESS TO FIN. 3937 YELLOW 18" 26" ADD #3489 1 END, STRIP OTHER 1/4" 3941 BLACK 18" 26" ADD #3489 1 END, STRIP OTHER 1/4"...
- Page 8 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Mar 26/2008 • Manual-Service-YCS412-00-1v0...
