ORIGINAL SERVICE MANUAL
This additional service manual is designed to be used to-
gether with Original model.
Original model
PN-2165M-A,B,C
DEFFARENCE FROM ORIGINAL MODEL
1.Difference fix equalizer curcuit of the main PWB section.
SPECIFICATIONS
Radio section
Tuning system: PLL Frequency synthesizer system
Receive range: AM
FM
Intermediate frequency:
AM
FM
Quieting sensitivity: AM
FM
Separation: FM
Auto tuning stop sensitivity:
AM
FM
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Manual No.
298-5779-00
530kHz to 1,710kHz
87.9MHz to 107.9MHz
450 +3/ -3kHz
10.7 +0.2/ -0.2MHz
Less than 32dBu(at 20dB S/N)
Less than 10dBu(at 30dB S/N)
More than 20dB(at 1kHz)
36 +6/ -6dBu
25 +6/ -6dBu
- 1 -
Service Manual
NISSAN Automobile Genuine
AM/FM Radio CD Stereo
PN-2165M-N
Model
(Genuine No. 28185 4Z560)
(ID CY448 / Black Escutcheon)
PN-2165M-P
Model
(Genuine No. 28185 4Z570)
(ID CY458 / Brown Escutcheon)
PN-2165M-Q
Model
(Genuine No. 28185 4Z580)
(ID CY468 / Gray Escutcheon)
CD section
Disc:
Frequency response:
Separation:
S/N ratio:
Distortion:
General
Output power:
Power supply voltage: DC14.4V(10.8V to 15.6V)
Back-up consumption: Less than 3mA
Dimensions(mm):
Weight:
* Specifications and design are subject to change without
notice for further improvement.

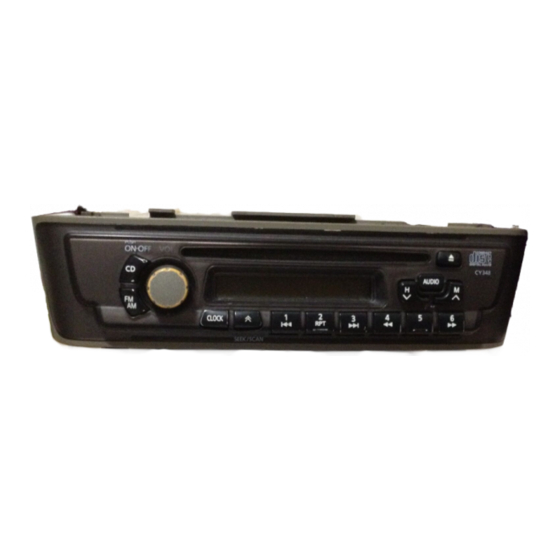

COMPONENT
PN-2165M-N / M-P / M-Q
Main unit
NOTE
We cannot supply PWB with component parts in principle.
When a circuit on PWB has failure , please repair it by com-
ponent parts base. Parts which are not mentioned in ser-
vice manual are not supplied.
Published by Service Dept.
298-6148-00 Feb.2004
Printed in Japan
12cm,8cm Disc
17Hz to 20kHz(+3/ -3dB)
More than 50dB(1kHz,0.5W)
More than 74dB(1kHz,5W)
Less than 0.4%(1kHz,0.5W)
30W x4
Negative ground
264.2(W) x63.6(H) x171.9(D)
1.7kg
-----------
PN-2165M-N,P
PN-2165M-Q
