Summarization of Contents
Clamp Models Overview
PC-LR Clamp Details
Description of the Full-Size Lever-Release Panning Clamp with labeled components.
PC-LR-40 Clamp Details
Description of the Compact Lever-Release Panning Clamp with labeled components.
Lever Positions Explained
Details three lever positions: Fully Open, Halfway Open, and Fully Closed for clamp operation.

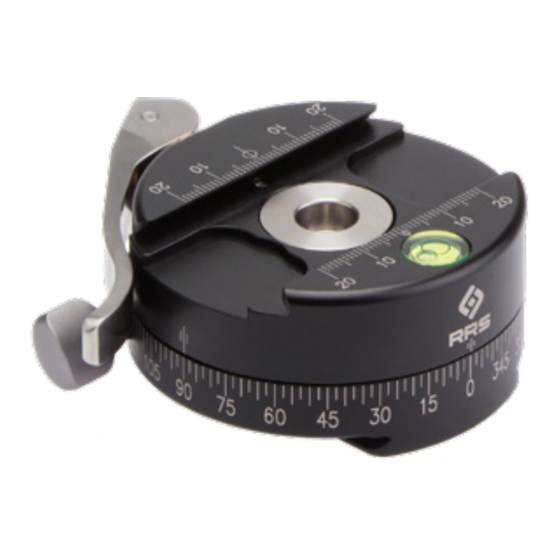

PC-Pro Clamp Details
Description of the Full-Size Screw-Knob Panning Clamp with labeled components.
Using Screw-Knob Clamp
Instructions for Top Loading, Side Loading, and Locking with a screw-knob clamp.
BPC-16 Ball Head with Panning Clamp
Description of the Compact Ball Head with Panning Clamp and its labeled parts.
BPC-16 Tension Adjustment
Instructions for adjusting ball lock lever tension using a T8 Torx key.
Care and Maintenance
General Care
Anodized plating protects aluminum from corrosion and mild abrasion, but not from scraping or drops.
Cleaning Instructions
Blow off dust; rinse mud/salt water with fresh water, dry thoroughly. Do not submerge or use high-pressure water.
Lubrication Policy
Clamps are factory lubricated and sealed; no user lubrication is required.
