LP8
SPECIFICATIONS
Supply Voltages ..............................................per selected power supply
P115/277 Power Supply ............................................... 115 or 277VAC
P240 Power Supply ................................................................. 240VAC
P115/347 Power Supply ............................................... 115 or 347VAC
Load Ratings
@120VAC, 50/60Hz ....................................... 20A Tungsten or Ballast
@277/347VAC, 50/60Hz .....................................................20A Ballast
@250VAC .......................................................................................1HP
Accessory Power Ouput ..................................800mA @24VDC/VAC/ACR
Environmental
Maximum Ambient Temperature ................................................60°C
Maximum Humidity ........................ 5% to 90% RH, non-condensing
UL & cUL Listed for receptacle rated circuit control

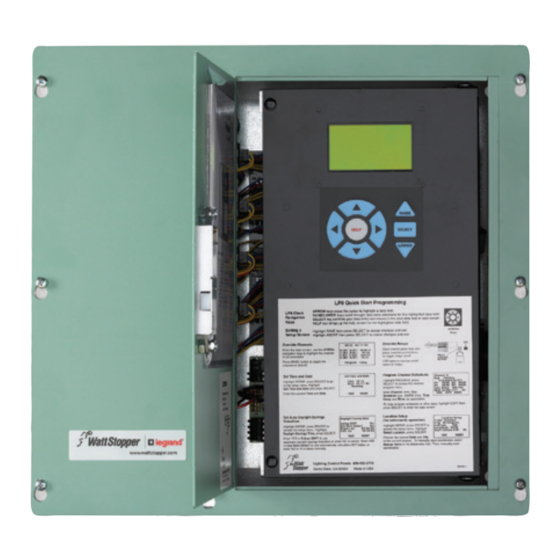

LP8 & LP24
Lighting Control Panel
LP24
Advertisement
Table of Contents
Related Manuals for wattstopper LP8
Summarization of Contents
INSTALLATION
General Installation Information
Key safety and installation guidelines for the LP8/LP24 panel.
Mount the Enclosure
Steps for securely mounting the LP8/LP24 enclosure to a wall.
Install Interior
Procedures for installing the interior assembly within the enclosure.
CONNECT THE LP8 POWER SUPPLY
CONNECT LINE VOLTAGE
Instructions for connecting line voltage to the LP8 power supply.
Power Up and Test Relays
Procedures for powering up and testing the LP8 relays.
Confirm Nominal Operation
Steps to verify normal operation of the LP8 panel after power-up.
LOW VOLTAGE WIRING
Hardwire Low Voltage Switches (Optional)
Wiring instructions for low voltage switches connected to LP panels.
Install and Wire Exterior Photocell (Optional)
Connecting the EM-24A2 exterior photocell to the LP8 panel.
Using Low Voltage Sensors with LP Panels
Guidance on connecting sensors to LP panels for control.
Group Switching (GS Card) and Smartwire Procedure (Optional)
How to use GS card for group switching and Smartwire setup.
