REMOVAL
PROCEDURE
S E R V I C E
6.0/7.1/8.5/9.5/10.0 kW Class
30000/36000 Btu/h Class

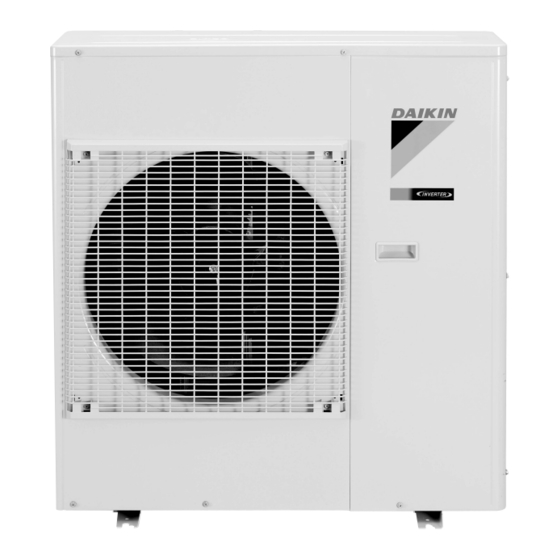

Outdoor Unit
Inverter
Pair Type
Si001169
M A N U A L
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Need help?
Do you have a question about the RXS60LBVMA and is the answer not in the manual?
Ask a question
Questions and answers
Related Manuals for Daikin RXS60LBVMA
Air Conditioner Daikin C-Series Service Manual
Inverter pair duct connected type c-series (147 pages)
Air Conditioner Daikin SiBE07-618_D Service Manual Field
C-series inverter pair duct connected type (150 pages)
Air Conditioner Daikin RXS60E2V1B Installation Manual
R410a split series (14 pages)
Air Conditioner Daikin RXS50K2V1B Installation Manual
R410a split series (21 pages)
Air Conditioner Daikin RXS50K2V1B Installation Manual
R410a split series (20 pages)
Air Conditioner Daikin RKS18JV2S Service Manual
4.0/4.5/5.0/6.0 kw class 18000 btu/h class (29 pages)
Air Conditioner Daikin RXS50J2V1B Installation Manual
(15 pages)
Air Conditioner Daikin FTXS60GV1B Service Manual
Inverter pair wall mounted type g-series (141 pages)
Air Conditioner Daikin RXS71E3V1B Installation Manual
(14 pages)
Air Conditioner Daikin SiEN04-306D Service Manual
Inverter pair wall mounted type b-series (224 pages)
Air Conditioner Daikin FTKS50BVMA Service Manual
(210 pages)
Air Conditioner Daikin AT12BV1LS Pocket Manual
Service diagnosis split & multi (169 pages)
Air Conditioner Daikin F-Series Service Manual
F-series inverter pair wall mounted type (244 pages)
Air Conditioner Daikin RXS60FVMA Service Manual
4.2/5.0/6.0/7.1 kw class (25 pages)
Air Conditioner Daikin RKM33NV2S Service Manual
6.0/7.0/7.1/8.0/8.5/9.0 kw class 33000 btu/h class (21 pages)
Air Conditioner Daikin FTKS L Series Engineering Data
Split, cooling only/heat pump, r-410a, inverter (248 pages)
Summarization of Contents
Removal of Outer Panels (Pattern 1)
Remove Suction Grille
Detach suction grille by unfastening hooks at upper, middle, and bottom.
Remove Top Panel
Remove top panel by unscrewing 9 screws.
Remove Right Side Panel
Unfasten 5 screws and 2 hooks to remove right side panel.
Remove Front Panel (2)
Remove front panel (2) by unscrewing a screw and unfastening 3 hooks.
Remove Front Panel (1)
Remove front panel (1) by removing discharge grille, fan, and 4 screws.
Remove Rear Panel Fasteners
Remove partition plate (2) screws and detach the partition plate.
Remove Rear Panel Wiring and Frame Screws
Remove wire fixing plate, terminal board, and bottom frame screw.
Detach Rear Panel Hooks and Thermistor Holder
Remove stop valve mounting plate screw, unfasten hooks, detach thermistor holder.
Removal of Outer Panels (Pattern 2)
Remove Suction Grille (Pattern 2)
Detach suction grille by unfastening hooks at upper, middle, and bottom.
Remove Top Panel (Pattern 2)
Remove top panel by unscrewing 9 screws.
Remove Right Side Panel (Pattern 2)
Unfasten 5 screws and 2 hooks to remove right side panel.
Remove Front Panel (2) (Pattern 2)
Remove front panel (2) by unscrewing a screw and unfastening 3 hooks.
Remove Front Panel (1) (Pattern 2)
Remove front panel (1) by removing discharge grille, fan, and 4 screws.
Remove Rear Panel Fasteners (Pattern 2)
Remove partition plate (1) screws and detach the partition plate.
Prepare Rear Panel for Removal (Pattern 2)
Cut clamp, remove 3 screws to prepare for rear panel detachment.
Removal of Electrical Box
Prepare Electrical Box Removal
Remove screws from stop valve mounting plate and partition plate (1), detach earth wires.
Disconnect Fan Motor Connector
Disconnect fan motor connector and release 4 clamps.
Disconnect Front Side Connectors
Disconnect connectors [S20], [S90], [S80] from the front side.
Release Compressor Lead Wire
Pull out clamp and release the compressor lead wire.
Disconnect Overload Protector Connector
Disconnect the relay connector for the overload protector and compressor.
Release Thermistor Harness
Release thermistor harness from the hook and pull out the clamp.
Remove Electrical Box
Slide electrical box leftward to unfasten hook, lift and remove the box.
Removal of PCBs
Remove Service Monitor PCB Cover and Connections
Remove cover, disconnect connectors [S52], [S102].
Detach and Remove Service Monitor PCB
Detach 4 clamps with pliers and remove the service monitor PCB.
Prepare for Main PCB Removal
Remove terminal board screws, earth wire, and unfasten right side hook.
Disconnect Main PCB Harnesses
Open terminal board and disconnect harnesses L1, L2, N1, N2.
Disconnect Reactor Harnesses
Disconnect 2 harnesses for the reactor [HR1] [HR2].
Remove Main PCB
Remove 3 screws, release 4 hooks to lift and remove the main PCB.
Removal of Fan Motor
Cut Fan Motor Clamps
Cut the clamps at 2 locations to free the fan motor.
Remove Fan Motor Screws
Remove the 2 lower screws first, then the 2 upper screws.
Remove Fan Motor
Remove the fan motor.
Removal of Coils / Thermistors
Remove Electronic Expansion Valve Coil
Pull the electronic expansion valve coil out.
Remove Outdoor Heat Exchanger Thermistor
Pull out the outdoor heat exchanger thermistor.
Open Sound Blanket and Remove Thermistor
Open sound blanket (outer), remove discharge pipe thermistor, and open thermistor holder.
Remove Four Way Valve Coil
Remove the screw and then the four way valve coil.
Removal of Sound Blankets
Remove Outer Sound Blanket
Open the sound blanket (outer) and remove the sound blanket (top upper).
Remove Inner Sound Blanket
Open the sound blanket (inner) and remove the sound blanket (inner).
Removal of Compressor
Disconnect Compressor Wiring
Remove terminal cover, pull out lead wires, and remove overload protector.
Remove Compressor Piping
Heat brazed part and withdraw piping with pliers, remove 3 mounting nuts.
