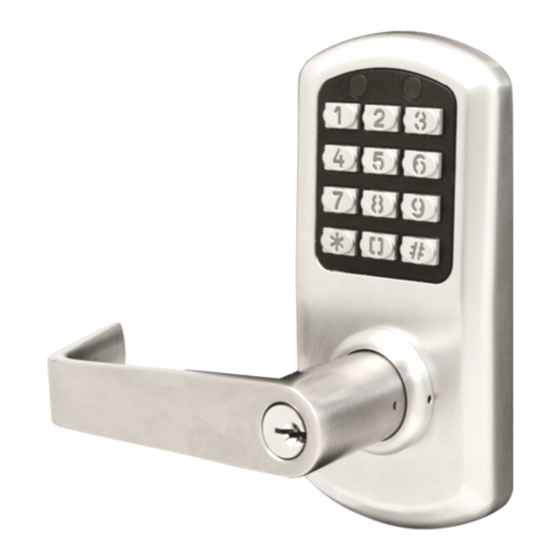

- Page 1 TS Smart Cylindrical Lock e-Elite 5000-RF...
-
Page 2: Table Of Contents
Index RF Information ······························································ 2 Definitions ···································································· 3 Factory Default Settings ·················································· 3 Important Notes ····························································· 4 Change Master Code ······················································ 5 Add Credentials ····························································· 5 Add a User Code Add Multiple User Codes Add User Keycards Delete Credentials ·························································· 7 Delete User Code Delete User Keycard Reset to Factory Default Settings... - Page 3 GENERAL LOCK INFORMATION FOR THE RF FUNCTION APP TS Home 915 wireless smart lock introduction 2019/04/30 TS Home APP can be used as Admin to manage the door locks and management tasks. APP functionality Unlocking Manage wireless gateway Manage clients ...
-
Page 4: Rf Information
Activate TS Home account Register as a TS Home user by phone or email address Add a gateway Add a networked device→Smart gateway→WI-FI router→Initialize the gateway→Connect WIFI→Binding device→ Set the gateway name→Completed Add lock Add a networked device→Gateway lock→Press the reset button→Pairing success→Set the door lock name→Add completed Add key User→Key management→Add key→Password key→Enter new password→Completed... -
Page 5: Definitions
Definitions Credential: The lock requires a valid credential to operate. A credential can be a Master Code, User Code, or Keycard/Fob. LED Indicator: The LED indicators are located around the keypad of the lock. Lock flashes green LED and/or dependent on inputs. While unlocking, a LED followed by a green LED means the lock is not programmed and can... -
Page 6: Important Notes
Important Notes To wake up the touch keypad from idle mode, gently swipe or tap the keypad. While in Factory Default Settings any credential will open the lock until a Master Code is programmed into the lock. When any credential is presented the lock will flash and then green and unlock. -
Page 7: Change Master Code
Change Master Code Key Sequence For example, to change Master Code to “555555”, press: Notes • Factory Default Setting’s Master Code is 123456. It must be changed with the user’s own Master Code immediately. Manufacturer assumes no liability, direct or indirect, due to failure to change Master Code. •... -
Page 8: Add Multiple User Codes
Add Multiple User Codes Key Sequence User Code Key Sequence Additional User Codes Key Sequence: For example, to add User Codes “202020”, “303030”, and “404040”, press: Notes The input of additional credentials must start before lock goes into Idle Mode (12 seconds). If the lock goes into Idle Mode, start the key sequence from the beginning. -
Page 9: Delete Credentials
Delete Credentials Delete User Codes Key Sequence For example, to delete User Code “202020”, assuming the Master Code is “555555”, press: Delete User Key Cards Key Sequence Notes The Master Code cannot be deleted. Multiple Keycards/Fobs can be deleted during the same programming sequence (like Additional User Codes Key Sequence). •... -
Page 10: System Settings
System Settings Passage Mode Key Sequence Notes After creating a Passage Code, entering it will activate the Passage Mode function. The lock will remain actively unlocked until the Passage Code or Master Code is entered to deactivate (or Disable) the function. Dual Verification Mode Key Sequence Notes... -
Page 11: Reset To Factory Default Settings W/O Master Code
Reset Lock to Factory Default Settings without a Master Code Steps 1. Locate the reset button on the battery holder. 2. Press and hold the reset button. After approximately 4 seconds, the lock will beep 2 times, and you can release the reset button. 3. - Page 12 CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
