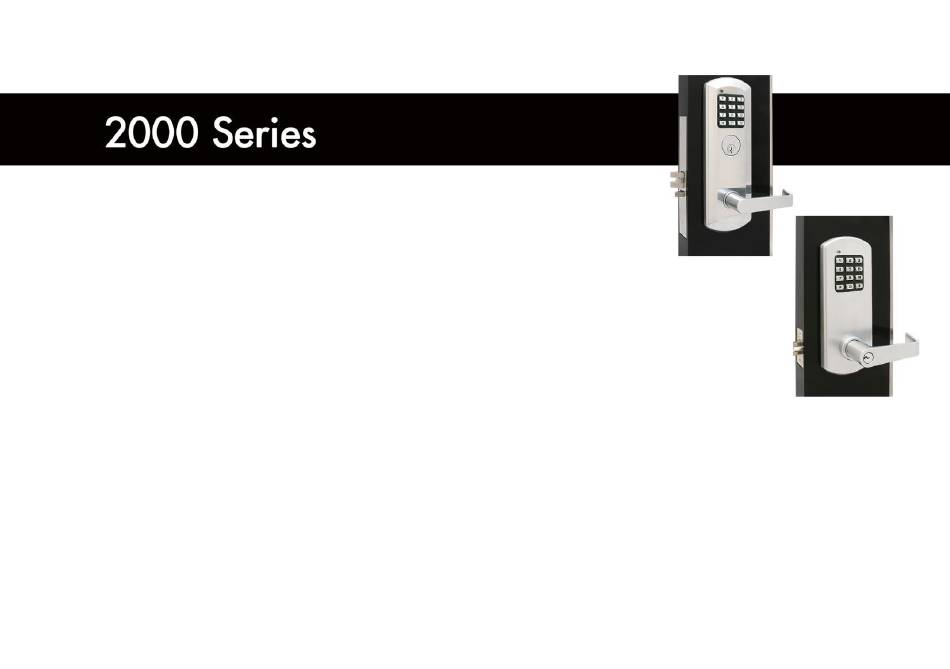

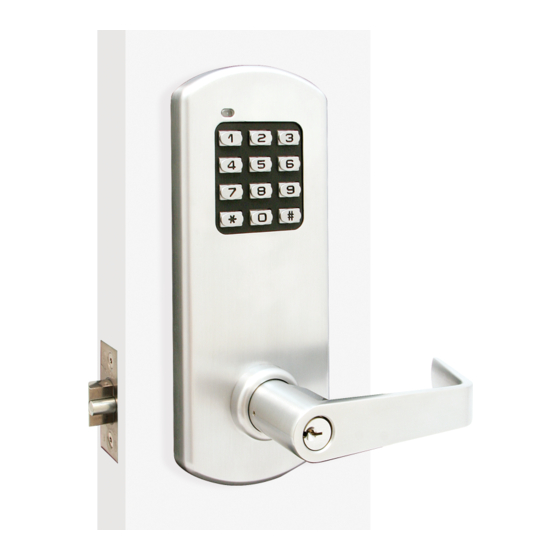

- Page 1 XCE and XME 2000 Series Locks YW2012...
-
Page 2: Table Of Contents
Index Definitions Factory Default Settings Important Notes Change Master Code Add Manager Code Add Codes Add a User Code Add Multiple User Codes Add Service Code Delete Codes Delete User Code Delete Manager Code Delete All Manager Codes Delete Service Code Delete All Service Codes Disable Codes Disable all Codes... -
Page 3: Definitions
Definitions Code Length: Length of Master Code defines the length of all other codes. Length of codes can be 4, 5, or 6 digits. Master Code and User Codes must be the same length. LED Indicator: LED indicators are located at the top outside of the lock. Lock flashes both green and red LED dependent on user inputs. -
Page 4: Factory Default Settings
Factory Default Settings Master Code: 12345 Passage Mode: Disabled Pass Time: 5 seconds Sound: Enabled Lock Status Indicator: Disabled Penalty Time (Keypad Anti-Tamper Lockout Time): 60 seconds after 3 Invalid Code Entries Important Notes Master Code must be changed from Factory Default Setting before programming any other codes. ... -
Page 5: Change Master Code
Change Master Code Key Sequence [#] [Master Code] ● [01] ● [1-digit Code Length] ● [New Master Code] ● [New Master Code] ●● For example, to change Master Code to “5555”, Press: [#] [12345] ● [01] ● [4] ● [5555] ● [5555] ●● ... -
Page 6: Add Codes
Add Codes Add a User Code Key Sequence [#] [Master Code or Manager Code] ● [02] ● [2-digit User ID] ● [New User Code] ●● For example, to add User Code of “2010” with User ID 01, Press: [#] [5555] ● [02] ● [01] ● [2010] ●● Add Multiple User Codes Key Sequence [#] [Master Code or Manager Code] ●... -
Page 7: Delete Codes
Delete Codes Delete a Code Key Sequence [#] [Master Code or Manager Code] ● [03] ● [2-digit User ID] ●● For example, to delete User Code “2040” with User ID “04”, Press: [#] [5555] ● [03] ● [04] ●● Delete a Manager Code Key Sequence [#] [Master Code] ●... -
Page 8: Disable Codes
Disable a Code Disable a User Code Key Sequence [#] [Master Code or Manager Code] ● [04] ● [2-digit User ID] ●● For example, to disable User Code “2030” with User ID “03”, Press [#] [5555] ● [04] ● [03] ●● ... -
Page 9: Passage Mode
Passage Mode Enable Passage Mode Key Sequence [#] [Master Code or Manager Code] ● [40] ●● Disable Passage Mode Key Sequence [#] [Master Code or Manager Code] ● [41] ●● Lock will stay in unlocked position until Passage Mode is disabled. ... -
Page 10: Sound Settings
Sound Disable Keypad Sound – Sound Off Key Sequence [#] [Master Code] ● [73] ●● Enable Keypad Sound – Sound On Key Sequence [#] [Master Code] ● [71] ●● Lock Status Indicator Enable Lock Status Indicator – Status Locked (Red LED) Key Sequence [#] [Master Code] ●... -
Page 11: Penalty Time
Penalty Time (Keypad Anti-Tamper Lockout Time) Adjust Penalty Time Key Sequence [#] [Master Code] ● [92] ● [1-digit invalid codes entry] ● [1-digit X0 seconds] ●● For example, to adjust Penalty Time for 70 seconds after 5 invalid entries, Press [#] [5555] ●... -
Page 12: Next Free User Id
Next Free User Code ID Locator Key Sequence [#] [Master Code or Manager Code] ● [10] ●● If a free user ID is recognized, the following sequence will occur: At the start of the Next Free User ID Location function, the lock will flash both the green and red LED and emit 2 beeps. ... - Page 13 YW2012...
