Summary of Contents for TownSteel Prodigy SmartLock Interconnect 2000 Series

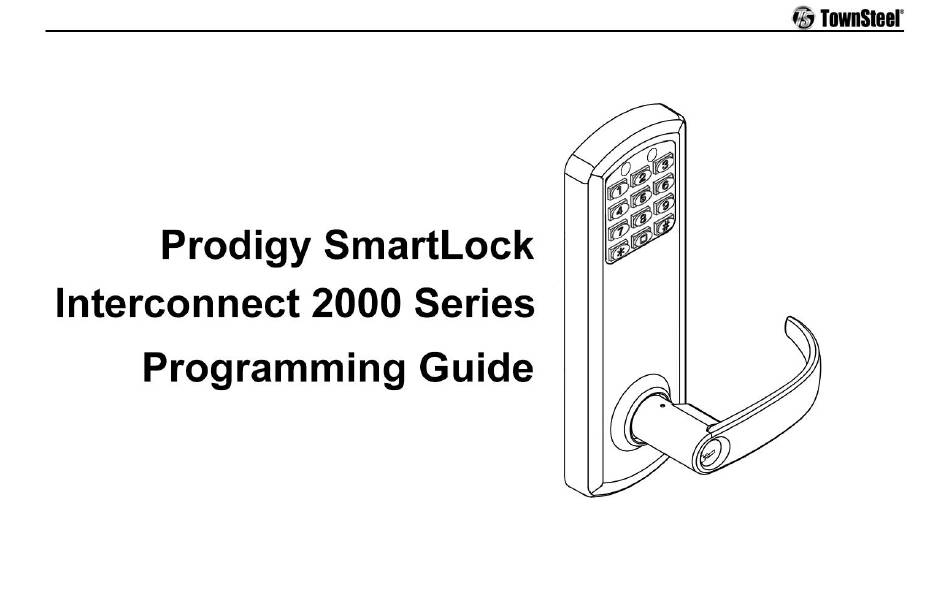

- Page 1 YW1838...
-
Page 2: Table Of Contents
Index Definitions······································································2 Factory Default Settings··················································· 3 Important Notes ···························································· 3 Change Master Code······················································ Add Codes·····································································4 Add a User Code Add Multiple User Codes Add Service Code Delete Codes ································································ 5 Delete User Code Delete Service Code Delete All Service Codes Disable Codes ·······························································... -
Page 3: Definitions
Definitions • Code Length: Length of Master Code defines the length of all other codes. Length of codes can be 4, 5 or 6 digits. Master Code and User Codes must be the same length. • LED Indicator: LED indicators are located at the top outside of the lock. Lock flashes green LED and/or red LED dependent on inputs. -
Page 4: Factory Default Settings
Factory Default Settings Master Code: 12345 Passage Mode: Disabled Pass Time: 5 seconds Sound: Enabled Lock Status Indicator: Disabled Penalty Time (Keypad Anti-Tamper Lockout Time): 60 seconds after 3 Invalid Code Entries Important Notes • Factory Default Settings Master Code must be changed before programming any other codes. •... -
Page 5: Change Master Code
Change Master Code Key Sequence [#] [Master Code] ● [01] ● [1-digit Code length] ● [New Master Code] ● [New Master Code] ●● • For example, to change Master Code to “5555”, Press: [#] [12345] ● [01] ● [4] ● [5555] ● [5555] ●● •... -
Page 6: Delete Codes
Delete Codes Delete a Code Key Sequence [#] [Master Code] ● [03] ● [2-digit User ID] ●● • For example, to delete User Code “2040” with User ID “04”, Press: [#] [5555] ● [03] ● [04] ●● Delete a Service Code Key Sequence [#] [Master Code] ●... -
Page 7: Disable All Codes
Disable all User Codes Disable all User Codes Key Sequence [#] [Master Code] ● [06] ●● • For example, to disable all User Codes, Press [#] [5555] ● [06] ●● • All User Codes are disabled, and Service Codes are deleted. Enable all User Codes Key Sequence [#] [Master Code] ●... -
Page 8: Pass Time
Pass Time Key Sequence [#] [Master Code] ● [42] ● [2-digit XX seconds] ●● • Pass Time changes to XX seconds and XX is programmable from 2 seconds to 20 seconds. Sound Disable Keypad Sound – Sound Off Key Sequence [#] [Master Code] ●... -
Page 9: Penalty Time
Penalty Time (Keypad Anti-Tamper Lockout Time) Adjust Penalty Time Key Sequence [#] [Master Code] ● [92] ● [1-digit invalid codes entry] ● [1-digit X0 seconds] ●● • For example, to adjust Penalty Time for 70 seconds after 5 invalid entries, press [#] [5555] ●... -
Page 10: Next Free User Id
Next Free User ID Key Sequence [#] [Master Code] ● [10] ●● If a next free user ID is recognized, the following sequence will occur: • At the start of the Next Free User Code Location function, the lock will flash both the green and red LEDs and will emit 2 beeps. -
Page 11: Low Battery
Low Battery Warning • When the battery voltage is low, the red LED will flash 5 times before the green LED flashes to signal acceptance of the code. Batteries should be changed as soon as this happens. Only 200 operations are allowed under low battery condition. After 200 operations, User Codes will be disabled under low battery condition. - Page 12 YW1838...
