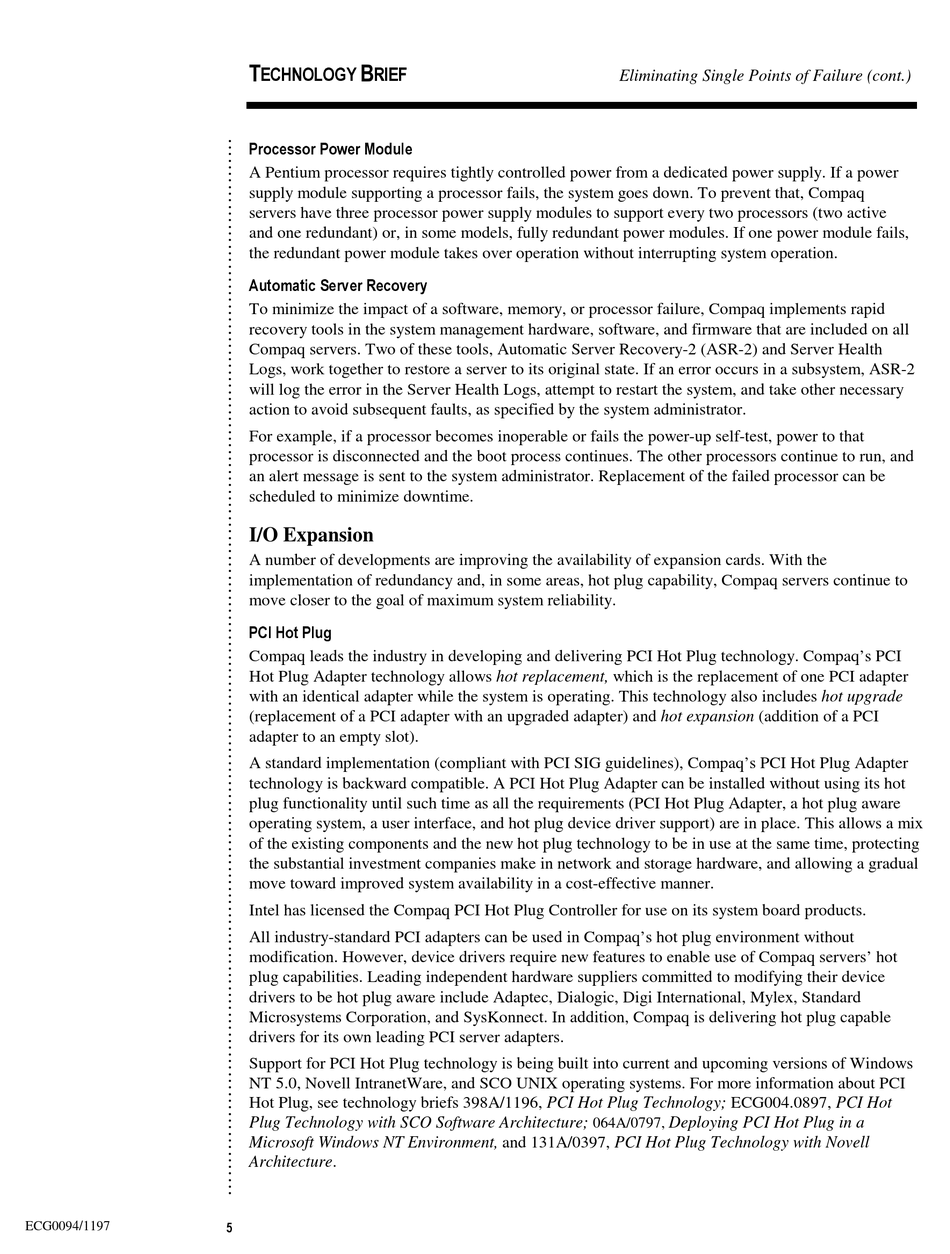

A Pentium processor requires tightly controlled power from a dedicated power supply. If a power
. .
. .
supply module supporting a processor fails, the system goes down. To prevent that, Compaq
. .
servers have three processor power supply modules to support every two processors (two active
. .
. .
and one redundant) or, in some models, fully redundant power modules. If one power module fails,
. .
the redundant power module takes over operation without interrupting system operation.
. .
. .
. .
. .
. .
To minimize the impact of a software, memory, or processor failure, Compaq implements rapid
. .
recovery tools in the system management hardware, software, and firmware that are included on all
. .
. .
Compaq servers. Two of these tools, Automatic Server Recovery-2 (ASR-2) and Server Health
. .
Logs, work together to restore a server to its original state. If an error occurs in a subsystem, ASR-2
. .
. .
will log the error in the Server Health Logs, attempt to restart the system, and take other necessary
. .
action to avoid subsequent faults, as specified by the system administrator.
. .
. .
For example, if a processor becomes inoperable or fails the power-up self-test, power to that
. .
. .
processor is disconnected and the boot process continues. The other processors continue to run, and
. .
an alert message is sent to the system administrator. Replacement of the failed processor can be
. .
. .
scheduled to minimize downtime.
. .
. .
. .
I/O Expansion
. .
. .
A number of developments are improving the availability of expansion cards. With the
. .
implementation of redundancy and, in some areas, hot plug capability, Compaq servers continue to
. .
. .
move closer to the goal of maximum system reliability.
. .
. .
. .
. .
Compaq leads the industry in developing and delivering PCI Hot Plug technology. Compaq's PCI
. .
. . Hot Plug Adapter technology allows hot replacement, which is the replacement of one PCI adapter
. .
with an identical adapter while the system is operating. This technology also includes hot upgrade
. .
(replacement of a PCI adapter with an upgraded adapter) and hot expansion (addition of a PCI
. .
. .
adapter to an empty slot).
. .
. .
A standard implementation (compliant with PCI SIG guidelines), Compaq's PCI Hot Plug Adapter
. .
. . technology is backward compatible. A PCI Hot Plug Adapter can be installed without using its hot
. .
plug functionality until such time as all the requirements (PCI Hot Plug Adapter, a hot plug aware
. .
. .
operating system, a user interface, and hot plug device driver support) are in place. This allows a mix
. .
of the existing components and the new hot plug technology to be in use at the same time, protecting
. .
. . the substantial investment companies make in network and storage hardware, and allowing a gradual
. .
move toward improved system availability in a cost-effective manner.
. .
. .
Intel has licensed the Compaq PCI Hot Plug Controller for use on its system board products.
. .
. .
All industry-standard PCI adapters can be used in Compaq's hot plug environment without
. .
. .
modification. However, device drivers require new features to enable use of Compaq servers' hot
. .
plug capabilities. Leading independent hardware suppliers committed to modifying their device
. .
. .
drivers to be hot plug aware include Adaptec, Dialogic, Digi International, Mylex, Standard
. .
Microsystems Corporation, and SysKonnect. In addition, Compaq is delivering hot plug capable
. .
. .
drivers for its own leading PCI server adapters.
. .
. .
Support for PCI Hot Plug technology is being built into current and upcoming versions of Windows
. .
NT 5.0, Novell IntranetWare, and SCO UNIX operating systems. For more information about PCI
. .
. .
Hot Plug, see technology briefs 398A/1196, PCI Hot Plug Technology; ECG004.0897, PCI Hot
. .
Plug Technology with SCO Software Architecture;
. .
. .
Microsoft Windows NT Environment, and 131A/0397, PCI Hot Plug Technology with Novell
. .
Architecture.
. .
. .

Eliminating Single Points of Failure (cont.)
Deploying PCI Hot Plug in a
064A/0797,
