ECG0094/1197
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .

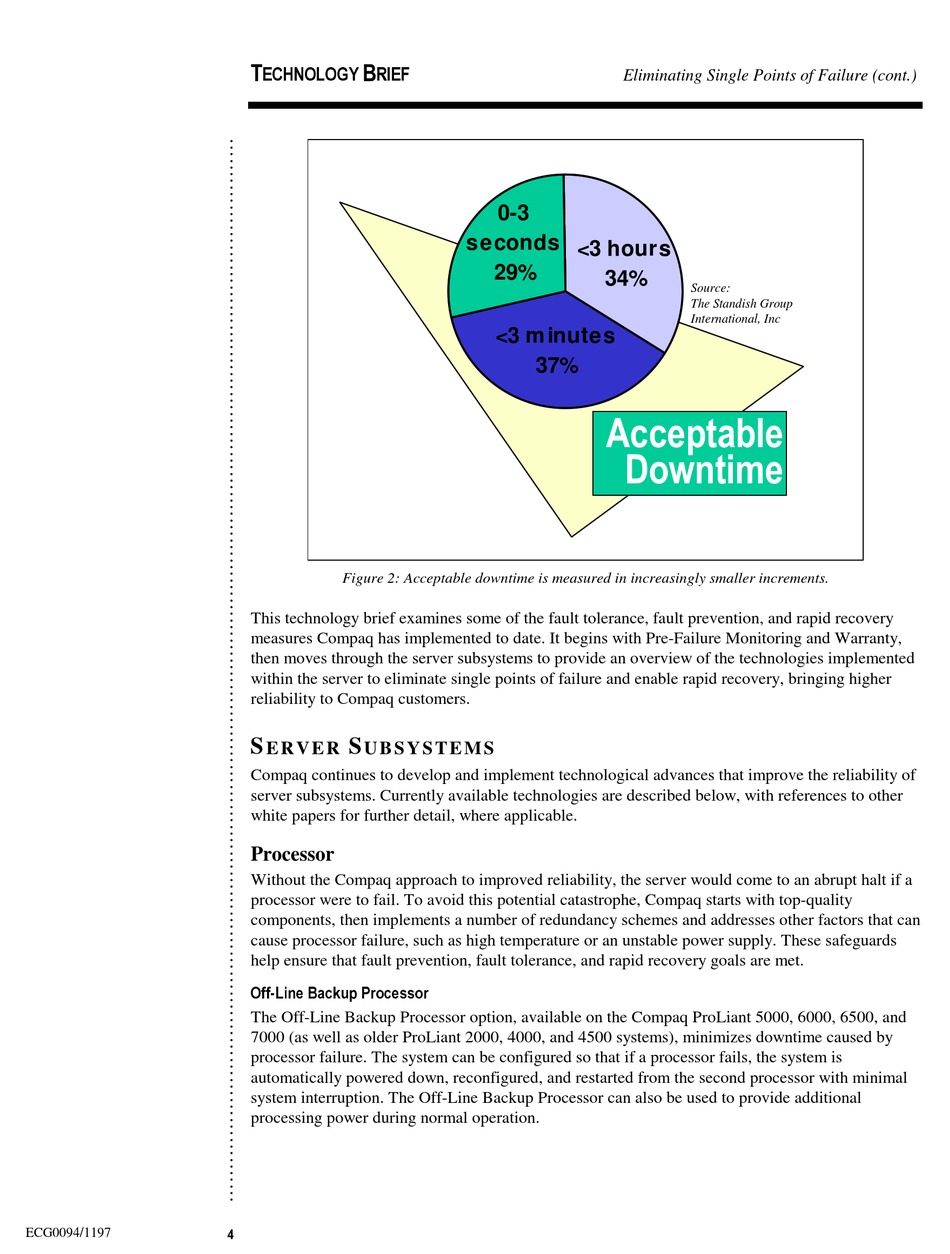

Figure 2: Acceptable downtime is measured in increasingly smaller increments.
. .
. .
. .
This technology brief examines some of the fault tolerance, fault prevention, and rapid recovery
. .
measures Compaq has implemented to date. It begins with Pre-Failure Monitoring and Warranty,
. .
. .
then moves through the server subsystems to provide an overview of the technologies implemented
. .
within the server to eliminate single points of failure and enable rapid recovery, bringing higher
. .
. .
reliability to Compaq customers.
. .
. .
. .
S S
. .
E R V E R U B S Y S T E M S
. .
. .
Compaq continues to develop and implement technological advances that improve the reliability of
. .
server subsystems. Currently available technologies are described below, with references to other
. .
. .
white papers for further detail, where applicable.
. .
. .
. . Processor
. .
Without the Compaq approach to improved reliability, the server would come to an abrupt halt if a
. .
. .
processor were to fail. To avoid this potential catastrophe, Compaq starts with top-quality
. .
. . components, then implements a number of redundancy schemes and addresses other factors that can
. .
cause processor failure, such as high temperature or an unstable power supply. These safeguards
. .
. . help ensure that fault prevention, fault tolerance, and rapid recovery goals are met.
. .
. .
. .
. .
The Off-Line Backup Processor option, available on the Compaq ProLiant 5000, 6000, 6500, and
. .
7000 (as well as older ProLiant 2000, 4000, and 4500 systems), minimizes downtime caused by
. .
. .
processor failure. The system can be configured so that if a processor fails, the system is
. .
automatically powered down, reconfigured, and restarted from the second processor with minimal
. .
. .
system interruption. The Off-Line Backup Processor can also be used to provide additional
. .
processing power during normal operation.
. .
. .
. .
. .
. .
. .

Eliminating Single Points of Failure (cont.)
0-3
seconds
<3 hours
29%
34%
<3 m inutes
37%
Source:
The Standish Group
International, Inc
