GENERAL INFORMATION
The ADEMCO 6150V and ADEMCO 6160V are addressable
remote keypads designed for use with ADEMCO control
panels and provide the following features:
•
Backlit Display
•
Programmable Function
Keys
•
Built-in Sounder
Notes:
•
When used with the ADEMCO VISTA-15P/VISTA-
20P control panels, address 16 must be assigned to
the first keypad.
assigned to address 17 – 23. Refer to Setting The
Keypad Options.
•
Keypad keys are continuously backlit for convenience.
•
Permanent display backlighting is an option on some
controls (refer to the control panel's instructions for
details).
•
Voice Chime should only be enabled when used with
control panels that support the "chime by zone" mode
(e.g., VISTA-15P/VISTA-20P).
enabled at the control panel. Refer to the control panel's
installation and setup guide for information on how to
program the chime mode.
•
Use only zone descriptors supported by this
keypad. If using zone descriptors not supported
by this keypad, you must turn voice status and
voice chime off. Table 1 is a list of applicable zone
descriptors and index entries. Refer to the control
panel's installation and setup guide for information
about how to program zone descriptors.
KEYPAD DISPLAYS AND LEDS
The keypads have the following display features:
Model Fixed 2-Line
Word Alpha
Display Display
6150V X
6160V X
The following table identifies the keypad's LEDs and
associated functions:
LED Function
ARMED Lights red when the system is armed in any mode.
READY Lights green when the system is "ready" to be
armed.
MESSAGE Flashes red when message waiting or lights red
(steady) when in record mode.
PROGRAMMABLE FUNCTION KEYS
The keypad's programmable function keys [A, B, C] are
normally used for keypad panic functions, but they can be
programmed for other special functions instead. If they are
programmed for other special functions, the associated
keypad key pairs still provide the respective panic alarm (if
programmed). Refer to the control panel's Installation &
Setup Guide for details.
INSTALLATION AND SETUP GUIDE
•
Voice Chime
•
Voice Status
•
Message Center
Additional keypads must be
This mode must be
2-Digit Custom
Zone Zone
Identifier Descriptors
X
X
ADEMCO 6150V & 6160V
Voice Remote Keypads
Function Equivalent Key Pairs
Keys
A
B
C
D
•
Function keys must be held down for at
least 2 seconds to activate the programmed
function.
•
If functions other than panics are assigned
to the
programmed panics must be initiated by
pressing the programmed key pair.
FUNCTION KEY LABELS
A set of adhesive-backed labels with some typical function
symbols (i.e., fire, police, personal emergency, etc.) is
provided. These labels can be placed on or next to the keys
to identify each key's function for the end user (as
determined by the capability and programming of the
control panel; refer to the installation and setup guide for
the control panel).
A
B
C
D

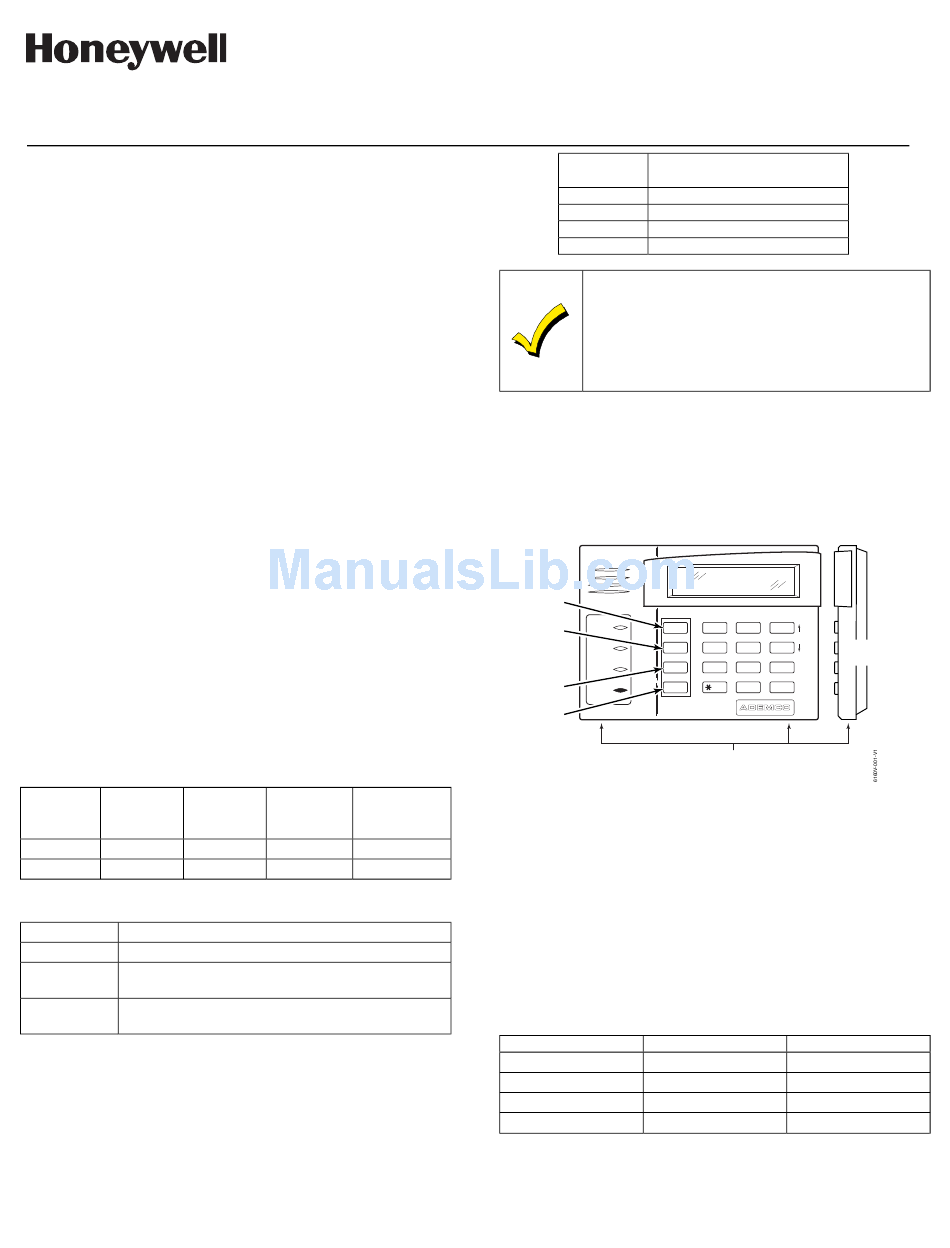

MOUNTING RELEASE SNAPS
(Remove case back by pushing up the 2 "snaps" along
the keypad's bottom edge and pulling the case apart.)
WIRING AND INSTALLATION
Keypads can be surface mounted using drywall anchors or
to a single- or double-gang electrical box.
1. Remove the case back by pushing up the two "snaps"
along the keypad's bottom edge and pulling the case
apart. See diagram above.
2. Route wiring from the control panel through the
opening in the case back.
3. Mount the case back to a wall or electrical box.
4. Wire directly from the keypad's terminal block to
the terminal block on the control board. (See Wiring
Table that follows.)
Wiring Table (All Keypads)
Keypad Control Panel
G Data In
– – Aux Pwr (GND)
+ + Aux. Pwr
Y Data Out
5. Re-attach the keypad to the case back.
6. Remove clear protective film from LEDs (6160V
only).
K0022V2 12/01 Rev. B
[1] and [*]
[*] and [#]
[3] and [#]
NONE
programmable function
1 2 3
OFF AWAY STAY
4 5 6 SIDE
MAX TEST BYPASS
VIEW
7 8 9
INSTANT CODE CHIME
0 #
READY
Wire Color
Green
Black
Red
Yellow
keys,
