Settings
(continued)

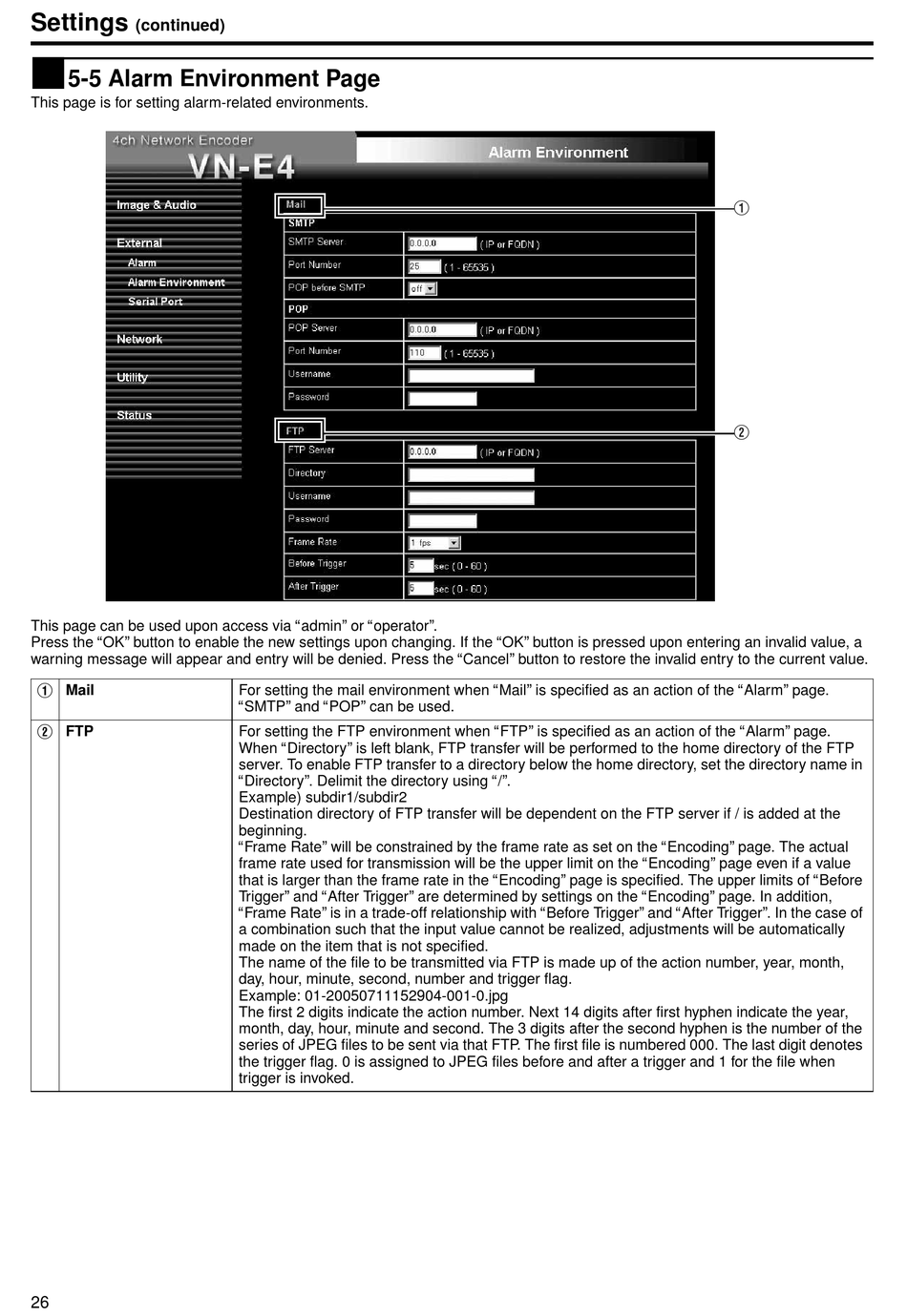

5-5 Alarm Environment Page
This page is for setting alarm-related environments.
This page can be used upon access via AadminB or AoperatorB.
Press the AOKB button to enable the new settings upon changing. If the AOKB button is pressed upon entering an invalid value, a
warning message will appear and entry will be denied. Press the ACancelB button to restore the invalid entry to the current value.
A Mail
B FTP
26
For setting the mail environment when AMailB is specified as an action of the AAlarmB page.
ASMTPB and APOPB can be used.
For setting the FTP environment when AFTPB is specified as an action of the AAlarmB page.
When ADirectoryB is left blank, FTP transfer will be performed to the home directory of the FTP
server. To enable FTP transfer to a directory below the home directory, set the directory name in
ADirectoryB. Delimit the directory using A/B.
Example) subdir1/subdir2
Destination directory of FTP transfer will be dependent on the FTP server if / is added at the
beginning.
AFrame RateB will be constrained by the frame rate as set on the AEncodingB page. The actual
frame rate used for transmission will be the upper limit on the AEncodingB page even if a value
that is larger than the frame rate in the AEncodingB page is specified. The upper limits of ABefore
TriggerB and AAfter TriggerB are determined by settings on the AEncodingB page. In addition,
AFrame RateB is in a trade-off relationship with ABefore TriggerB and AAfter TriggerB. In the case of
a combination such that the input value cannot be realized, adjustments will be automatically
made on the item that is not specified.
The name of the file to be transmitted via FTP is made up of the action number, year, month,
day, hour, minute, second, number and trigger flag.
Example: 01-20050711152904-001-0.jpg
The first 2 digits indicate the action number. Next 14 digits after first hyphen indicate the year,
month, day, hour, minute and second. The 3 digits after the second hyphen is the number of the
series of JPEG files to be sent via that FTP. The first file is numbered 000. The last digit denotes
the trigger flag. 0 is assigned to JPEG files before and after a trigger and 1 for the file when
trigger is invoked.
A
B
