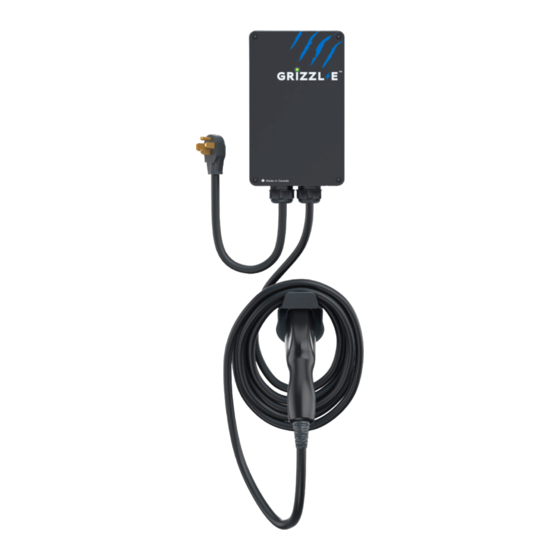

Electric vehicle charging station
Hide thumbs
Table of Contents

Advertisement

Quick Links

GRIZZL E
EV charger
Version 2
User Manual
& Installation Guide
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR1-14-18 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Grizzl-E GR1-14-18 Series

Summary of Contents for Grizzl-E GR1-14-18 Series

  • Page 1 ™ GRIZZL E EV charger Version 2 User Manual & Installation Guide...
  • Page 2 Grizzl-E Manual Grizzl-E Version 2: All units sold after June 15, 2021*. All Grizzl-E Refurbished Units. Manual Revision: 1.0 Model Numbers: Grizzl-E Classic: Grizzl-E Refurbished Grizzl-E Avalanche Edition: Grizzl-E Special Edition: GR1-6-18-XX GR1-6-18-XX GR1-14-24-AW GR1-14-24-PC GR1-6-24-XX GR1-14-24-AB GR1-6-24-XX GR1-14-18-XX GR1-14-18-XX...
  • Page 3 Grizzl-E provides up to 10 KW of power to your vehicle. Physical switches inside can be set to provide 16 Amps, 24 Amps, 32Amps or 40 Amps adjustable maximum current.
  • Page 4 Basic precautions should always be followed when using electrical products, including the following: • Read all the instructions before using this product. • Children should not use this device. • Do not put fingers into the EV connector. • Do not touch live electrical parts. •...
  • Page 5 Security and Tamper Feature In addition to the security pin that secures the GRIZZL-E charging station to the wall mount bracket, the GRIZZL-E Classic can also be used with a coupler lock and key with a length of 90mm and diameter of 7mm...
  • Page 6 United Chargers GRIZZL-E™ Electric Vehicle Charging Station (EVSE) Description Specifications GR1-6-18-XX: GRIZZL-E™ EVSE, 18 ft. J1772 Cordset, Plug-in: NEMA 6-50 Plug GR1-6-24-XX: GRIZZL-E™ EVSE, 24 ft. J1772 Cordset, Plug-in: NEMA 6-50 Plug Model Numbers GR1-14-18-XX: GRIZZL-E™ EVSE, 18 ft. J1772 Cordset, Plug-in: NEMA 14-50 Plug GR1-14-24-XX: GRIZZL-E™...

  • Page 7: Table Of Contents

    INSTRUCTIONS Manual United Chargers GRIZZL-E ™ Smart Electric Vehicle Charging Station (EVSE) Table of Contents 1. Introduction & Unpacking ................8 2. Installation Planning and Service Wiring: ............9 2.1 Electrical Source Requirements ..............9 2.2 Grounding Instructions ................9 3.

  • Page 8: Introduction & Unpacking

    1. Introduction & Unpacking This user manual applies to the GRIZZL-E™ EVSE for Plug-in Hybrid Electric Vehicles (PHEVs) and Electric Vehicles (EVs). Made in Canada Charging Station with input and Mounting Bracket (x1) output cable (x1) Security Pin (x1) Robertson Head...

  • Page 9: Installation Planning And Service Wiring

    2. Installation Planning and Service Wiring: WARNING: Disconnect the power supply to the charging station before installing, adjusting, or repairing the charging. Failure to do so may result in physical injury or damage to the power supply system and the charging station. CAUTION: To reduce the risk of fire, connect only to a circuit provided with the minimum branch circuit overcurrent protection requirements in accordance with the National Electrical Code ANSI/...

  • Page 10: Adjustable Maximum Current Output

    3. Adjustable Maximum Current Output The GRIZZL-E ™ charging station features the ability to adjust the maximum Charging Station current output to support 50A, 40A, 30A, or 20A Dedicated Circuit ratings as follows: Circuit Rating Maximum Charging Station Output 40A (9.6 kW) 32A (7.68 kW)

  • Page 11: Generation 1 Grizzl-E (3 Dip Switches)

    3.2 Generation 1 Grizzl-E (3 DIP Switches) The Generation 1 Grizzl-E has 3 DIP switches located at the top left corner of the circuit board. If your Grizzl-E has 4 DIP Switches please see 3.3 Generation 2 Grizzl-E (4 DIP Switches) on page 15.
  • Page 12 2. Using a non-conductive object adjust the Maximum Current Output to either 32A, 24A or 16A, using the following combination of DIP switch settings: Maximum Current Output DIP 3 DIP 2 DIP 1 DIP Switch Setting (Picture) 40A Maximum Current Output DOWN DOWN (Factory Default Setting)

  • Page 13: Generation 2 Grizzl-E (4 Dip Switches)

    3.3 Generation 2 Grizzl-E (4 DIP Switches) The Generation 2 Grizzl-E has 4 DIP switches located at the top left corner of the circuit board. 1. With the front cover placed to the side, locate the DIP switch on the charging station circuit board.
  • Page 14 2. Using a non-conductive object adjust the Maximum Current Output to either 32A, 24A or 16A, using the following combination of DIP switch settings: Switch 3 Switch 4 Switch 1 Switch 2 40A Maximum Current Output DOWN (Factory Default Setting) DOWN DOWN 32A Maximum Current Output...

  • Page 15: Installation

    4. Installation 4.1 Tools & Parts Required for Installation Prior to mounting, determine the location of an acceptable mounting support. All charging station products must be anchored into a mounting support such as a 2” x 4” stud or a solid concrete wall.

  • Page 16: Install The Charging Station

    4.2 Install the Charging Station 1. Separate the front and back piece of the mounting bracket by pushing down on the notch. Back Piece Front Piece 2. Attach the front piece of the mounting bracket to the back of the charging station using the Socket-cap screws.
  • Page 17 3. Secure the back piece of the mounting bracket to the wall or other suitable structure using the Robertson-head screws. The back piece of the mounting bracket has 3 holes to support attachment to various surfaces. Use the top two holes to attach the mounting bracket to a wall stud. Mounting Screw Recommendations: •...
  • Page 18 4. Mount the charger on the wall by securing the front piece of the mounting bracket to the back piece of the mounting bracket. 5. Secure the charger in place by inserting either the security pin or the outdoor security lock into the mounting bracket.

  • Page 19: Input Wiring Connection (Optional Hardwire Connection)

    5. Input Wiring Connection (Optional Hardwire Connection) 1. Choose the appropriate conduit in accordance with all applicable, local, and electrical safety codes and standards. 2. Using the appropriate tool, clamp the wire terminal to the copper wire. For non-insulated terminals, use heat shrink tube to cover the non-insulated portion of the terminal. 3.
  • Page 20 Model Terminal Conductor Screw Rating Torque GRIZZL-E ™ 16 kgf-cm 13.88 lb-in L1, L2, G 8 AWG 90C, copper wire CAUTION: To reduce the risk of fire, connect only to a circuit provided with the appropriate amperes minimum branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part I, C22.1.

  • Page 21: Easyevplug Holster And Cable Management System

    6. EasyEvPlug Holster and Cable Management System The EasyEVPlug™ Holster or Tesla EasyEVPlug™ Holster is the new innovative method to pro- tect your plug and manage your cord. It has the following features: • No need to aim – flawless plug even in the dark. •...

  • Page 22: Charging Status Indicators And Buzzers

    7. Charging Status Indicators and Buzzers 7.1 Indicator Lights Grizzl-E uses the following indicator lights for the charger status: LED Indicator Buzzer Description Definition No buzzer Not illuminated Power Off No buzzer White Initialization No buzzer Blue Steady Ready No buzzer...

  • Page 23: Led Fault Indicator

    7.2 LED Fault Indicator The number of red flashes shows the type of fault: LED Indicator # of Flashes Error Description Red Flashing Lost ground - AC Line1 Red Flashing GFCI High Leakage Red Flashing Relay is stuck Red Flashing GFCI Low Leakage Red Flashing High temperature of the...

  • Page 24: Operation

    8. Operation 8.1 Connect and Charge Insert the charging Connector into the EV and ensure the connector is fully seated/locked in place. Once complete, the charging session will begin. 8.2 Stop Charging 1. Unplug the charging station by pressing the connector button and removing the Charger Connector from the EV (once the connector button is depressed, the charging session terminates immediately).

  • Page 25: General Product Care And Use Information

    9. General Product Care and Use Information The exterior of the charging station is designed to be waterproof and dust proof (NEMA 4 Outdoor Rated). However, periodic cleaning may be required, depending on local conditions. To ensure proper maintenance of the charging station, follow these guidelines: •...

  • Page 26: Warranty

    United Chargers shall make the final decision, in fairness to all concerned, as to the legitimacy of any such claim on this warranty. Upon discovery of any defective GRIZZL-E ™, please contact our Customer Service Department for further instructions as to how to repair or replace the defective unit or log into your account at www.grizzl-e.com and submit support...
