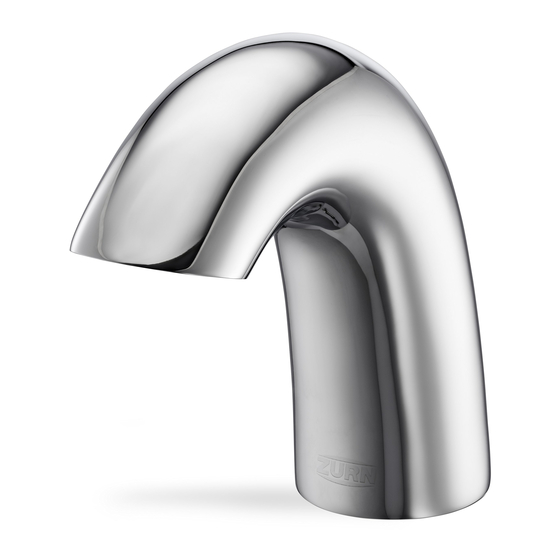

Serio Series™ Faucet
Sensor-Operated Lavatory Faucets
for Battery or Plug-In Installations.
Installation, Operation, Maintenance,
and Parts Manual
Patented and Patents Pending
Z6950-XL-IM-S*
Sensor-Operated Battery-Powered
Lavatory Faucets
LIMITED WARRANTY
Prod. | Dwg. No. FV794
Z6955-XL-S
ZURN.COM
US 1.855.ONE.ZURN CANADA 1.905.405.8272
Advertisement
Table of Contents
Related Manuals for ZURN HYDRO-X Power Z6950-XL-IM-S
Summary of Contents for ZURN HYDRO-X Power Z6950-XL-IM-S
- Page 1 *HYDRO-X Power not included with integral mixer (IM) faucets. ZURN INDUSTRIES, LLC W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. A Date: 05/21/21 C.N.
- Page 2 This Page Intentionally Left Blank...
-
Page 3: Required Tools
Serio Series Faucets Package Contents Z6950-XL-S Z6955-XL-S Spout Assembly Aerator Spout Assembly and Key Aerator and Key Base Gasket Shank Mounting Kit Base Gasket Shank Mounting Kit Widespread Mounting Kit Batteries Batteries Electronics Box Hydrogenerator Electronics Box with Solenoid with Solenoid Hydrogenerator Valve Valve... -
Page 4: Specifications
Overview: Zurn® Serio Series™ Faucets features multiple spout designs in a standard polished chrome finish with one piece heavy duty cast brass spouts and advanced electronic components and feature sets. Sophisticated automatic user detection and self- calibration ensures the user does not need to touch the faucet and helps deliver optimum water savings. - Page 5 NOTE: Before installation, turn off water supplies to existing faucet and remove faucet if replacing an existing device. Clean the faucet basin and clear away debris. Flush all supply lines before connecting the faucet. Failure to do so may result in debris clogging the inlets and/or internal control and mixing valve Spout Installation - Step 1 1.2.
- Page 6 2.2. IM assembly only: Connect wye-cable to electronics modules. 2.3. For battery-powered, non-IM version, connect sensor inline connector to electronics module and hydrogenerator. 2.4. Open battery module using supplied Allen wrench and install 2.4a. Optional ACA version: Connect supplied inline connector supplied batteries in the electronics module.
- Page 7 2.5. Tighten electronics module assembly with hydrogenerator to 2.5.a. For IM assembly, tighten mixing yoke with electronics module shank and connect water line(s). and hydrogenerator assembly to shank and connect water line(s). 2.6. Turn on water supply(ies). 2.8. Connect sensor inline connector or electronics module (for 2.7.
- Page 8 Adjustable modes and features selection: All switches shown in default mode. To adjust features from default configuration, you must remove the battery tray. Once battery tray is removed you will see the switches. 1 2 3 4 5 6 7 8 Switch Position: Purge (Hours) Disable:...
-
Page 9: Troubleshooting Guide
If not, install washer. If a washer is installed replace with new. For further assistance with troubleshooting visit http://www.zurn.com Care and Cleaning Instructions: • Do not use any abrasive or chemical cleaners to clean the faucets. - Page 10 SET SCREW SIDE SIDE Z6950 Series Battery Powered Sensor Faucet ZURN PLUMBING PRODUCTS GROUP COMMERCIAL BRASS OPERATION 5900 ELWIN BUCHANAN DRIVE, SANFORD, NC, U.S.A 27330 PHONE: 1-800-997-3876 FAX: 919/775-3541 WEBSITE: WWW.ZURN.COM MADE IN XXX Form No. FV559 Battery Compartment Use supplied 3/32” hex wrench to loosen set screw. Screw will Lift spout and pull sensor cable through deck and base.
- Page 11 Z6950-XL-S, Z6955-XL-S & Z6950-XL-IM-S Parts List "Use Copper conductor only and see details in instructioin manual" REGULATED POWER SUPPLY PART NO : 200404001 MODEL NO : P6000-HW6 I/P : 100-240VAC/390mA@ 50/60Hz O/P : +7.6VDC, 2A max load P6000-HW6 WIRING FRAME/SAFETY GROUND BLUE (-) GREEN/YELLOW WHITE...
- Page 12 ZURN INDUSTRIES, LLC W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. A Date: 05/21/21 C.N. No. 143760 Prod.
