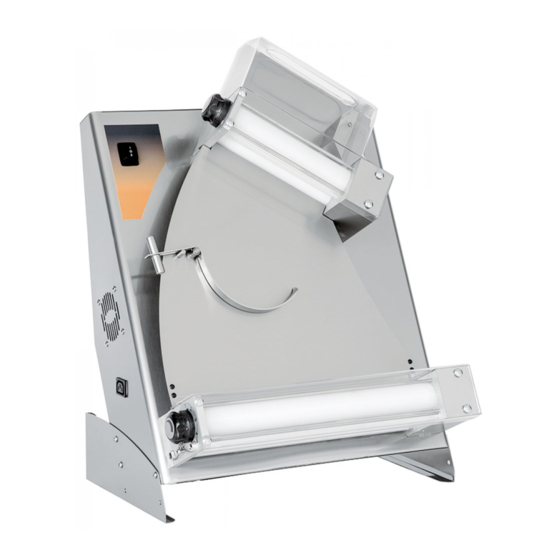

Rolling machine
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
ROLLING MACHINE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 310/1 and is the answer not in the manual?

Questions and answers

Related Manuals for Prismafood 310/1

Summary of Contents for Prismafood 310/1

  • Page 1 INSTRUCTION MANUAL ROLLING MACHINE...
  • Page 3 EMISSION: 2014 The manufacturer is not under any obligation to notify of any future modifications of the product. All rights of this document are reserved and no alteration or re-productions can be made without permission of the manufacturer. INTRODUCTION This manual is specifically for the installation, use and maintenance of Rolling machines, so you are able to use the product in the best way.

  • Page 4: General Information

    CHAPTER 1 GENERAL INFORMATION 1.1 WARRANTY Guaranteed for one year from date of purchase. The date must be stamped on the guarantee on the day of purchase. Parts of the machine found to be a production defect except electrical components or parts worn out, will be changed and serviced free by us in our company but only ex -works within this period.

  • Page 5: Technical Characteristics

    1.3 TECHNICAL CHARACTERISTICS Descrizione 420 RP 500 RP U.M. 310/1 500/1 310/2 T.GO T.GO Description Dimensioni macchina 58,5 x 66,5 x 47,5 x 58,5 x 48 x 33,5 65 x 34,5 65 x 34,5 43,5 x 43,5 x 37,5 x 66 43,5 x 79 x 43 x 43...
  • Page 6 1.4 ELECTRICAL SCHEME ABOUT MODELS: 310-420 NEW; 420-500 RP; 310/1; 500/1; 310/2 ALIM. 230 VAC INTERRUTTORE SWITCH MOTORE CONN. MASCHIO MOTOR MALE PLUG PEDALE TREADLE CONN. FEMMINA FEMALE PLUG...
  • Page 7 1.4.1 ELECTRICAL SCHEME ABOUT MODELS: 310-420 TG NEW COMANDO SENSORE sdsdsd...
  • Page 8 1.5 INFORMATION REGARDING ACOUSTIC NOISES The acoustic pressure level well-pondered A measured on an equal machine, turned out to be steady and lower than 70 dB (A). 1.6 GENERAL SECURITY INDICATIONS Although the machine is built in conformity to the required security rules regarding electrical, mechanical and hygienic regulations it can be dangerous if: - used in cases and conditions different to those described by the manufacturer.

  • Page 9: Installation

    CHAPTER 2 INSTALLATION 2.1 INSTRUCTIONS FOR THE USER The environmental conditions in which the machine must be installed must follow these characteristics: - be dry - water and heat sources at safe distance - adequate ventilation and lighting (corresponding to hygiene and security rules following the existing laws). The surface must be horizontal, for normal ventilation of the machine no objects should obstruct.

  • Page 10: Control Devices

    CHAPTER 3 FUNCTIONING 3.1 CONTROL DEVICES The machine is provided with the following control devices: SWITCH 1-0-2: Position 1 – START Position 0 – STOP Position 2 – THE FOOT FUNCTION on the front panel for 310 – 420 TG: - Black switch Set time (setting the working time);...
  • Page 11 CHAPTER 4 USAGE Before every work-cycle always make sure the machine is perfectly clean, in particular those surfaces that get in touch with the dough. If necessary clean the machine following point: 4.1 USAGE OF THE MACHINE 4.1.1 MODELS 310 - 420 NEW TO START: Press the button ( 1 );...
  • Page 12 4.1.3 models 420 - 500 RP FUNCTIONS AND USAGE OF THE FOOT PEDAL. The foot control device controls the rollers to move depending on desired speed and keeping the machine on during the time needed. This device is connected to the machine by plugging the foot pedal into the main machine. USAGE FOR THE SHAPING OF THE DISKS.
  • Page 13 4.1.4 models 310/1 – 310/2 – 500/1 TO START Push the button in position1; the machine starts the two rollers and it ‘s now ready to be used. Before introducing the dough previously left to rise (at least 6 to 8 hours) open the rollers using the handle(in position 3-4).The dough needs to be floured and squashed slightly to get through the rollers.when the dough comes out,it will be in an oval shape and you will notice reduction of thickness.
  • Page 14 CHAPTER 5 REGULATIONS Regulating the machine can only be recommended as there are different characteristics of: the dough, the weight, the thickness, the size and the shape of the disk. Therefore the correct regulating of the machine must be made by experimenting. The machine is provided with medium size regulation.

  • Page 15: Maintenance

    MINIMUM BALANCE: - position the counter-balance in the extreme hole; - this is recommended for higher weights. At the end of the regulation block the counterbalance screwing the screw. CHAPTER 6 MAINTENANCE WARNING BEFORE DOING ANY KIND OF MAINTENANCE OR CLEANING YOU MUST TAKE OUT THE PLUG. IN ANY CASE OF MALFUNCTIONING OR DAMAGES OF THE MACHINE YOU MUST APPLY FOR AUTHORISED ASSISTANCE FROM THE MANUFACTURER.

  • Page 16: Demolition Of The Machine

    6.3 POSSIBLES ANOMALIES ANOMALY CAUSE SOLUTION 1_ Check the general contactor, the 1_ Electrical power is missing plug and the feeding cable. The machine does’t start 2_ The foot - control is on. 2_ Push the foot pedal CHAPTER 7 DEMOLITION OF THE MACHINE In cases of dismantling and/or demolition of the machine, the pieces which the machine is made of, do not present any kind of danger that necessitates any particular caution.
  • Page 17 DOUGH SCRAPER SPRING 5L500010 UNI 6604-A 4X4X15 KEY 5L500010 UNI 6604-A 4X4X15 KEY 5M500001 KNOB REGULATION SPRING 5M500001 KNOB REGULATION SPRING 4C010016 BACK COVER 310 NEW 4C010008 BACK COVER 310 NEW 5R010001 NMRV30 REDUCER 5R010001 NMRV30 REDUCER 5C020010 310 ROLL MACHINE BELT...
  • Page 18 310 NEW LOWER SLIDE 4B010001 ROCKING 310 4B010005 ROCKING 310 5L500031 UNI6604-A 5X5X25 KEY 5L500031 UNI6604-A 5X5X25 KEY 7G010066 310 NEW UPPER ROLLER GROUP 7G010070 310 NEW UPPER ROLLER GROUP 4C010070 PROTECTION GEAR SUPPORT 4C010070 PROTECTION GEAR SUPPORT 4P020026 310 UPPER PROTECTION...
  • Page 20 DOUGH SCRAPER SPRING 5L500010 UNI 6604-A 4X4X15 KEY 5L500010 UNI 6604-A 4X4X15 KEY 5M500001 KNOB REGULATION SPRING 5M500001 KNOB REGULATION SPRING 4C010016 BACK COVER 310 NEW 4C010008 BACK COVER 310 NEW 5R010001 NMRV30 REDUCER 5R010001 NMRV30 REDUCER 5C020010 310 ROLL MACHINE BELT...
  • Page 21 310 NEW LOWER SLIDE 4B010001 ROCKING 310 4B010005 ROCKING 310 5L500031 UNI6604-A 5X5X25 KEY 5L500031 UNI6604-A 5X5X25 KEY 7G010066 310 NEW UPPER ROLLER GROUP 7G010070 310 NEW UPPER ROLLER GROUP 4C010070 PROTECTION GEAR SUPPORT 4C010070 PROTECTION GEAR SUPPORT 4P020026 310 UPPER PROTECTION...
  • Page 23 420 RP NEW ROLLING MACHINE 500 RP NEW ROLLING MACHINE POS. ART. DESCRIPTION ART. DESCRIPTION 5T100001 PLUG STRAP 5T100001 PLUG STRAP 5S500001 SEEGER Ø10 UNI 7435 5S500001 SEEGER Ø10 UNI 7435 3P020001 KNOB CONTROL 3P020001 KNOB CONTROL 5S510005 CILINDRIC SHEET 3X14 5S510005 CILINDRIC SHEET 3X14 3S010032 LOWER ROLLERS SUPPORT 3S010032 LOWER ROLLERS SUPPORT...
  • Page 24 4C010075 UPPER PROTECTION GEAR SUPPORT RP 4C010075 UPPER PROTECTION GEAR SUPPORT RP 4P020036 420 RP UPPER PROTECTION 4P020036 420 RP UPPER PROTECTION 4P020015 420 LOWER PROTECTION 4P020045 420 LOWER PROTECTION 4C010070 PROTECTION GEAR SUPPORT 4C010070 PROTECTION GEAR SUPPORT 7G010072 420 NEW LOWER ROLLER GROUP 7G010076 420 NEW LOWER ROLLER GROUP 5L500020 UNI 6604-A 5X5X20 KEY 5L500020 UNI 6604-A 5X5X20 KEY...
  • Page 26 310/1 ROLLING MACHINE 500/1 ROLLING MACHINE POS. ART. DESCRIPTION POS. ART. DESCRIPTION 5T100001 PLUG STRAP 5T100001 PLUG STRAP 5S500001 SEEGER Ø10 UNI 7435 5S500001 SEEGER Ø10 UNI 7435 3P020001 KNOB CONTROL 3P020001 KNOB CONTROL 5S510005 CILINDRIC SHEET 3X14 5S510005 CILINDRIC SHEET 3X14 3S010032 LOWER ROLLERS SUPPORT 3S010032 LOWER ROLLERS SUPPORT 3A010042 CILINDRIC SHAFT 310...
  • Page 27 4P030006 SX FOOT 4P030006 SX FOOT 5P020001 PEDAL 5P020001 PEDAL 5P200001 PEDAL POWER 5P200001 PEDAL POWER 5V050005 230V FAN 5V050005 230V FAN 5P100015 Ø 6-10,5 CABLE PRESS 5P100015 Ø 6-10,5 CABLE PRESS 5M020010 ROLL MACHINE MOTOR 0,25KW 230V 5M020010 ROLL MACHINE MOTOR 0,25KW 230V 7I010001 COMPLETE CYLINDRICAL DUCT GEAR 7I010001...
  • Page 29 310/2 ROLLING MACHINE POS. ART. DESCRIPTION 5T100001 PLUG STRAP 7I010001 COMPLETE CYLINDRICAL DUCT GEAR 5S500001 SEEGER Ø10 UNI 7435 3I010006 CYLINDRICAL GEAR HUB 3P020001 KNOB CONTROL 5B100010 BUSH 5S510005 CILINDRIC SHEET 3X14 5I200006 STEEL DUCT GEAR 3S010032 LOWER ROLLERS SUPPORT 5L500015 UNI 6604-A 5X5X10 KEY (2x) 3A010051...
  • Page 31 EXPLODED ROLLER GROUP UPPER FOR 310-420 NEW; 310-420 TG NEW; 420-500 RP NEW...
  • Page 32 LOWER FOR ALL ROLLING MACHINES...
