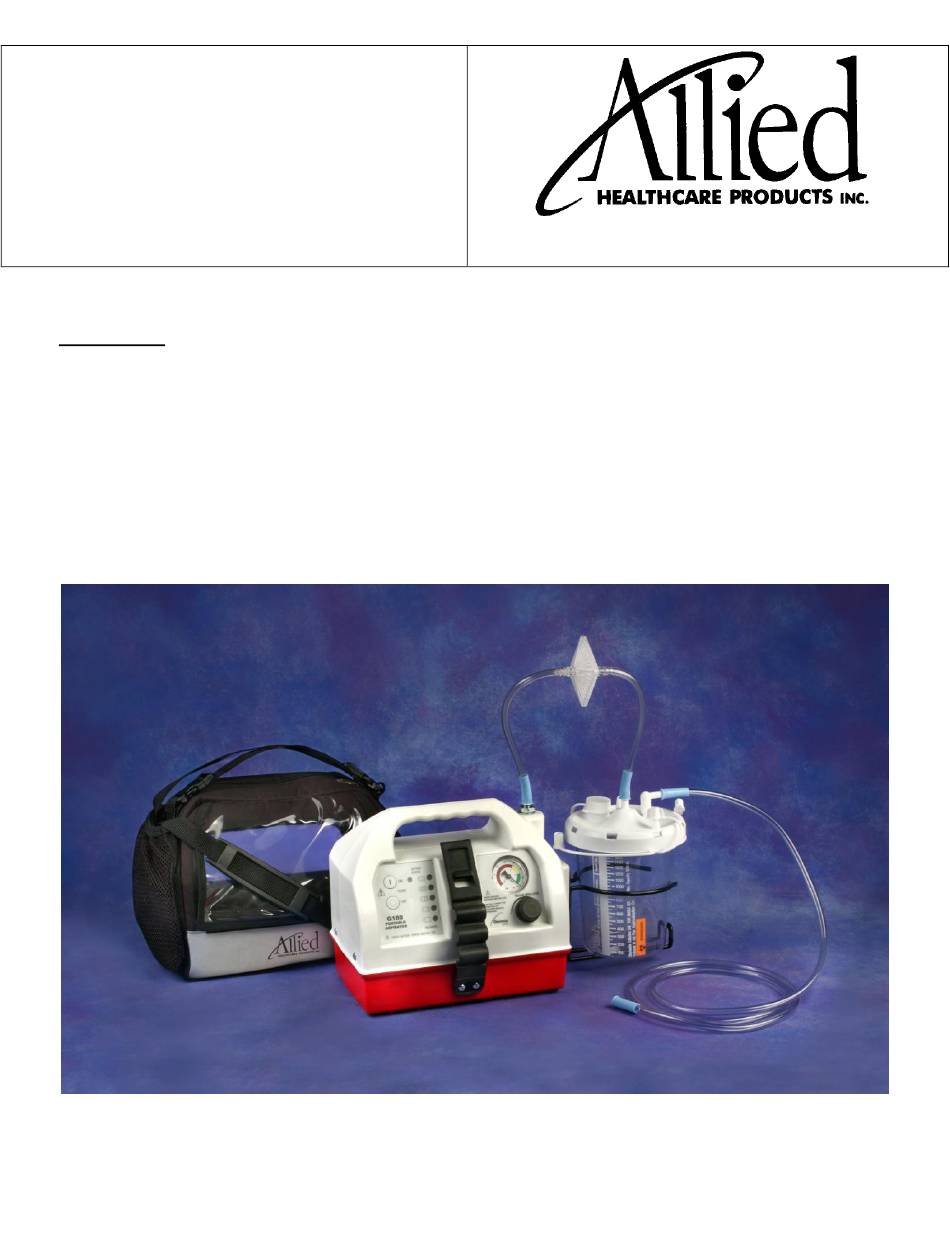

DC PORTABLE ASPIRATOR
OPERATION/SERVICE MANUAL
1720 SUBLETTE AVE. ST. LOUIS, MO 63110 U.S.A.
DC MODELS:
L190/L190CE: EMERGENCY PORTABLE SUCTION UNIT, HI – LOW CONTROLS, W/ DOCKING
STATION ADAPTER
L190-GR/L190-GRCE: EMERGENCY PORTABLE SUCTION UNIT, GAUGE AND REGULATOR, W/
DOCKING STATION ADAPTER

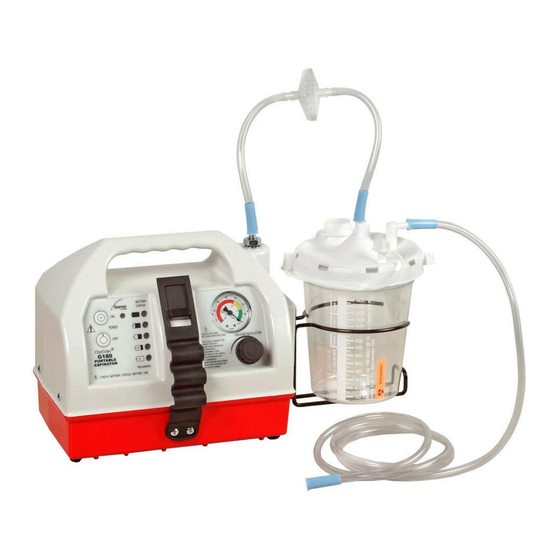

G180/G180CE: GOMCO PORTABLE ASPIRATOR, GAUGE & REGULATOR
FOREIGN LANGUAGE MANUAL: SEE S168-507-001-INT FOR FRENCH, GERMAN, AND SPANISH
1
Advertisement
Table of Contents
Related Manuals for Allied Healthcare G180
Summary of Contents for Allied Healthcare G180
- Page 1 DC PORTABLE ASPIRATOR OPERATION/SERVICE MANUAL 1720 SUBLETTE AVE. ST. LOUIS, MO 63110 U.S.A. DC MODELS: L190/L190CE: EMERGENCY PORTABLE SUCTION UNIT, HI – LOW CONTROLS, W/ DOCKING STATION ADAPTER L190-GR/L190-GRCE: EMERGENCY PORTABLE SUCTION UNIT, GAUGE AND REGULATOR, W/ DOCKING STATION ADAPTER G180/G180CE: GOMCO PORTABLE ASPIRATOR, GAUGE &...
-
Page 2: Symbol Definitions
SYMBOL DEFINITIONS: Attention, Consult Accompanying Documents “OFF” (only for a part of EQUIPMENT) “ON” (only for a part of EQUIPMENT) FUSE INCREASE (CLOCKWISE) DECREASE (COUNTER CLOCKWISE) PROTECTIVE EARTH (GROUND) ALTERNATING CURRENT DIRECT CURRENT TYPE B EQUIPMENT WARNING: READ THIS ENTIRE MANUAL BEFORE USING ASPIRATOR. WARNING: Federal law restricts this device to sale by or on the order of a physician. -
Page 3: General Information
1.1 Vacuum Range: L190: 4.9 to 21.6 in Hg. (125 mm Hg and 550 mm Hg) @ STP. L190-GR & G180: 2.0 to 21.6 in Hg. (25 mm Hg to 550 mm Hg.) @ STP. 1.2 Flow Rates: Open flow > 30 LPM @ STP. - Page 4 External 12 Volt DC automotive supply 3.2 Press power switch “I” to turn unit on and “O” to turn it off. 3.3 To check the degree of vacuum for all models equipped with a gauge and regulator (L190-GR,L190- GRCE,G180 & G180CE), do the following:...
-
Page 5: Maintenance And Service
Release the pinched tubing. 3.4 For the L190 unit, press the “Hi vacuum” switch to select the high vacuum level. Press the “Lo vacuum “ switch to select the low vacuum level. 3.5 The battery will recharge, from a condition of low charge, within 8 hours maximum, using either the external 12 Volt DC or 115 or 230 Volt AC power supplies when the unit is idle. - Page 6 4.5 TO REMOVE CASE TOP FROM CASE BOTTOM: Always disconnect any power source. Remove the screws from the sides and back of the unit. Remove the Case Back from the Case Front and lay along side the Case Bottom. Disconnect the ground wire from the bulkhead assembly. Disconnect the tubing connecting the bulkhead fitting assembly to the vacuum pump.
- Page 7 The G180 and G180CE use a sealed lead acid battery rated at 12 VDC, 5 AMP Hour, Part Number Su1060. The L190, L190CE, L190-GR and L190-GRCE use a sealed lead acid battery rated at 12 VDC, 3.4 AMP Hour, Part Number L200027.
- Page 8 Warning: Do not use abrasives such as scouring powders, steel wool, alkaline detergents or cleaning agents not compatible with polycarbonate material. NOTE: If further technical assistance is needed, please contact our service center at the address listed below: Allied Healthcare Products, Inc. Service Center 1720 Sublette Avenue St. Louis, Missouri 63110-1968 U.S.A.
-
Page 9: Warranty Information
5.0 WARRANTY INFORMATION LIMITED WARRANTY: Allied warrants for a period of one year for the L190 & L190-GR units and one year for the battery, three years for the G180 unit and one year for the battery, from date of shipment that the products manufactured by Allied are free from defects in material and workmanship. - Page 10 PNEUMATIC SCHEMATIC #1: DC, EMERGENCY PORTABLE SUCTION UNIT SOLENOID 2 POS, NC INLET ATMOSPHERE PORT BLEED EXHAUST PORT VACUUM MUFFLER PUMP PNEUMATIC SCHEMATIC #2: DC, REGULATED ATMOSPHERE BLEED VACUUM GAUGE REGULATOR/ FILTER INLET PORT EXHAUST PORT VACUUM MUFFLER PUMP...
-
Page 11: Troubleshooting
ELECTRICAL SCHEMATIC #1: DC, EMERGENCY PORTABLE SUCTION UNIT POWER SUPPLY CONNECTOR J2 MOBILE CHARGING JACK SOLENOID IEC CONNECTOR POWER SUPPLY CONNECTOR J3 TROUBLESHOOTING : PROBLEM CAUSE SOLUTION Pump will not run when Bad fuse Replace fuse (see Sect. 4.7) switch is pushed “ON” Overheated pump due to extended Let cool and remove obstruction operation with obstructed output... -
Page 12: Replacement Parts List
1200 ml (cc) Collection Container (Polycarbonate) With Cap & Float Assy. 20-08-0016 1500 ml (cc) Disposable Collection Canister (Case of 16) with hydrophobic filter shut off L190-BAG Bag, Case with Shoulder Strap L200-010 Docking Station Kit. Tubing Kit (8” & 72”) - Page 13 St. Louis, Mo. 63110 U.S.A. Telephone: (314) 771-2400 Toll Free: (800) 444-3954 INSTRUMENTS OF CARE FORM NO. S168-507-001 Rev. P September, 2011 Allied Healthcare Products Inc. (DC) AUTHORIZED EU REPRESENTATIVE MEDIZINTECHNIK & CONSULTING EFFENGRUBE 14 23552 LUBECK, GERMANY TEL: +49-451-8090-4200 FAX: +49-451-8090-4231...
