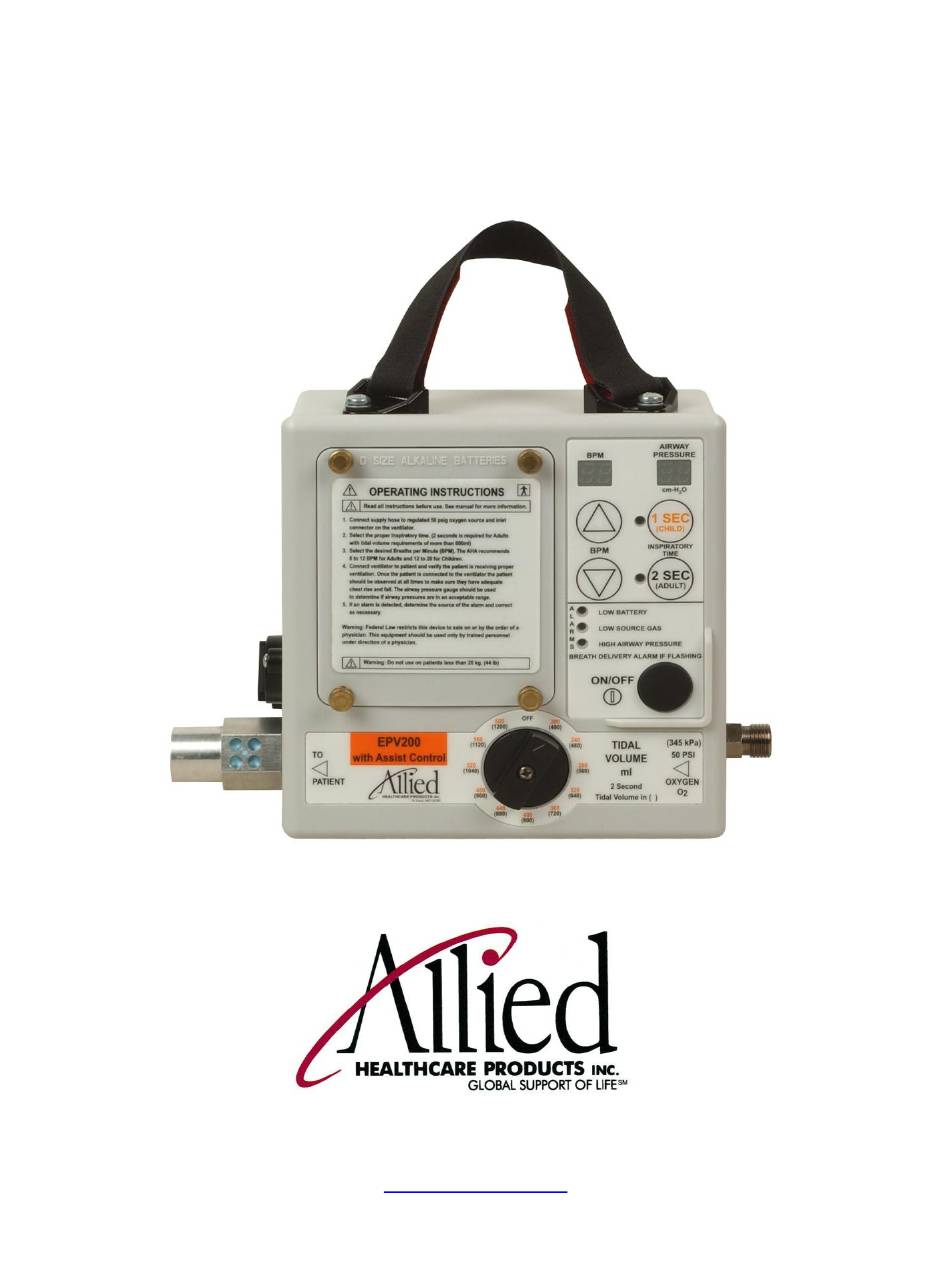

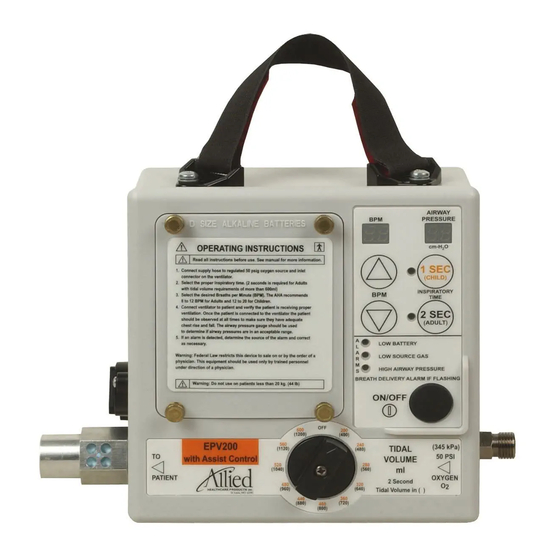

- Page 1 EPV200 Portable Ventilator ™ Battery Powered Ventilator With Oxygen Source Required Patent Pending 1720 Sublette Avenue ■ St. Louis, MO 63110 USA 314-771-2400 ■ 800-444-3954 ■ FAX: 800-477-7701 www.alliedhpi.com S168-570-001 REV. A...
-
Page 2: Table Of Contents
Maintenance and Schedule 10 - 11 Check-out Procedure Accessories Warranty Oxygen Cylinder Depletion Times 14 - 15 Symbols Applicable Standards Approximate Settings Based on Patient Height 17 - 18 Attaching EPV200 to Equipment Model: EPV200 - Emergency Portable Ventilator with Assist Control... -
Page 3: Product Description
Results beyond this length of time are not known. CAUTION: Federal law restricts this device to sale by or on the order of a physician. CAUTION: The EPV200 should not be used on children with a weight of 20 kg (44 lbs) or less. Explanation of Warnings Warning: Potential injury to the patient or operator exists. -
Page 4: Specifications
Specifications Gas Supply Pressure: 280 kPa (40.6 psi) to 600 kPa (87 psi) oxygen DISS Breaths Per Minute (BPM): Accuracy: ±10% BPM Range: 1 second inspiratory time = 0 and 5 to 30 BPM Range: 2 second inspiratory time = 0 and 5 to 20 Tidal Volume (Tv): Accuracy: ±10% with 100% oxygen Tidal volume range 1 second inspiratory time = 200 ml to 600 ml Tidal volume range 2 second inspiratory time = 400 ml to 1200 ml... -
Page 5: Features
Features Item # Description Item # Description Tidal Volume Control Anti-Suffocation Valve Inspiratory Time Control Patient Circuit Connection BPM Control High Airway Pressure Alarm Oxygen Inlet Low Source Gas Alarm Airway Pressure Display Low Battery Alarm Power On/Off Switch Breath Delivery Alarm if Flashing Battery Compartment BPM Display... -
Page 6: Operating The Ventilator
Select the desired breaths per minute (BPM): The EPV200 has a BPM range of 0 and 5 to 20 with a 2 second inspiratory time, and a BPM range of 0 and 5 to 30 with a 1 second inspiratory time. Use the up and down arrows above or below the text “BPM”... - Page 7 Select the desired tidal volume (Tv): Turn the tidal volume knob to the desired tidal volume setting. The flow to the patient is different for each tidal volume. Tidal Volume Setting Approximate Flow (LPM) = 1 second I = 2 second 14.4 16.8 19.2...
- Page 8 ● Spontaneous breathing by the patient: Should the patient begin to breathe spontaneously, the EPV200 will sense this breath and deliver the set tidal volume at the corresponding inspiratory time. The breath timing will be reset based on the selected BPM rate. For example, if 10 BPM was selected, the next breath will be delivered 6 seconds after the start of the spontaneous breath.
-
Page 9: Alarms
Alarms This ventilator contains several alarms: high airway pressure, low source gas, low battery, and breath delivery failure. The high airway pressure alarm is an audible alarm with a red LED that is actuated when the airway pressure during inspiration reaches 45 cm H O. -
Page 10: Battery Replacement
Warning: Do not recharge alkaline batteries. Cleaning The EPV200 should be cleaned after each use. To clean the EPV200, keep the gas supply hose on the unit to prevent contamination of the oxygen circuit. Warning: Cleaning procedures should be performed in an environment free of oil and petroleum based products. -
Page 11: Maintenance And Schedule
Example: the serial number 20090403001 was manufactured in the year 2009 and in the month of April. All repairs should be performed by Allied Healthcare Products trained and certified technicians. - Page 12 To test the low source gas alarm, reduce the inlet pressure source to below 35 psi. The low source gas alarm should sound and a red LED should be flashing. Should the unit fail any of these tests, contact the Allied Healthcare Products, Inc., Technical Support Center in St. Louis: 314-771-2400 or 800-411-5136.
-
Page 13: Check-Out Procedure
15 seconds. Monitor that the red LED is flashing on the breath delivery failure alarm, and an audible alarm will sound. Should the unit fail any of these tests, contact Allied Healthcare Products, Inc., Technical Support Center in St. Louis: 314-771-2400 or 800-411-5136. -
Page 14: Accessories
Warranty LIMITED ONE (1) YEAR WARRANTY Allied Healthcare Products, Inc.(Allied) warrants this product to be free from Disclaimer of Other Warranties: defects in material and workmanship for a period of (1) year from the date of manufacture. This Warranty is expressly conditioned on compliance with all... -
Page 15: Oxygen Cylinder Depletion Times
Oxygen Cylinder Depletion Times These times are approximate and assume full cylinder capacity. Always monitor the cylinder pressure and low pressure alarm to make sure you do not run out of oxygen. E Cylinder Capacity = Liters Oxygen Capacity (4.6 Liters Water Capacity) Breaths Per Minute 1200 1000... -
Page 16: Symbols
D Cylinder Capacity = 414.6 Liters Oxygen Capacity (2.8 Liters Water Capacity) Breaths Per Minute 1200 1000 Tidal Volume Symbols Degree of protection against electric shock: Type BF Caution: Consult accompanying documents 5 to 95% Non-condensing % Relative Humidity: 5 to 95% Storage Temperature Range: -40°F to 140°F On/Off... -
Page 17: Applicable Standards
Consult the manufacturer or field service technician for help The EPV200 is intended to provide emergency respiratory support for children and adults. The product is intended to meet the following safety and performance standards: Performance and Safety Requirements ... -
Page 18: Approximate Settings Based On Patient Height
Approximate Settings Based on Patient Height Flow Rates and I:E Ratios By Tidal Volume and Breaths Per Minute 2 Second Inspiratory Time Tidal Volume 1040 1120 1200 Height Male =((IBW-50)/2.3)+60 inch 7’3” 7’6” @10 ml/Kg 4' 8" 4' 11" 5' 3" 5' 6"... - Page 19 1 Second Inspiratory Time Tidal Volume Height Male =((IBW-50)/2.3)+60 inch @10 ml/kg 3' 11" 4' 1" 4' 2" 4' 4" 4' 6" 4' 8" 4' 9" 4' 11" 5' 1" 5' 3" 5' 4" (cm) (119.4) (124.9) (127.0) (132.1) (137.2) (142.2) (144.8) (149.9)
-
Page 20: Attaching Epv200 To Equipment
Attaching the EPV200 to Equipment Using two hook and loop straps, the EPV200 can be attached to hospital or other equipment as shown. (See Accessories on page 14.)
