Programming Examples

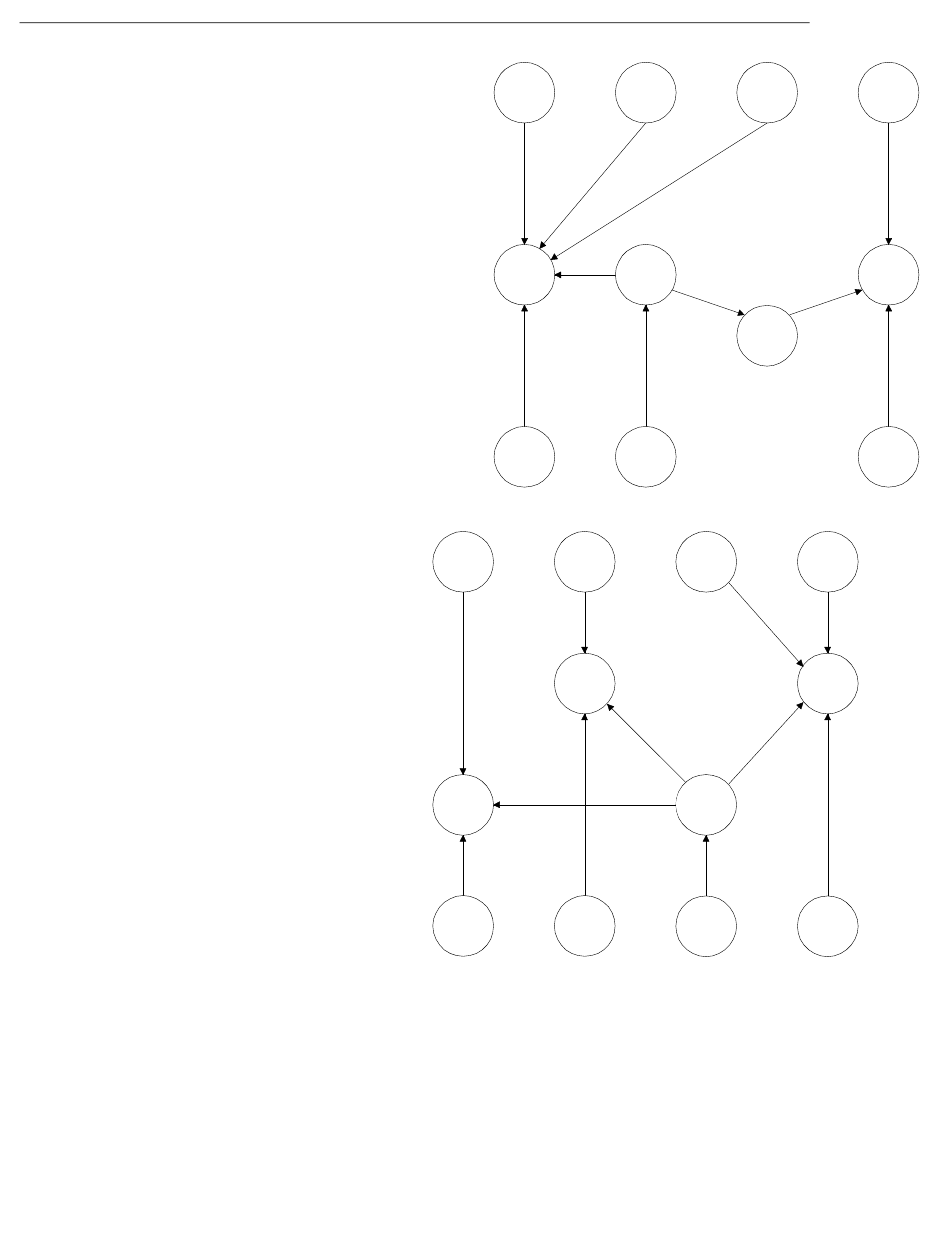

Example # 1

L1D1, L1D2, and L1D3 are first floor smoke detectors that acti-
vate Z1. L1D4 is a first floor elevator lobby smoke detector that
activates Z2. If Z1 activates, control module L1M1 and L1M4
will activate. Control module L1M1 could be used to close the
supply damper to the floor during a fire condition. If Z2 acti-
vates then control module L1M4 will activate. Control module
L1M4 could be used to turn on a fan to pressurize the elevator
shaft. The equation AND(Z1 Z238) requires both to be active for
an output. Because reverse Zone 238 has a NOT operand, it is
active as long as L1D4 is inactive. So if there is smoke on the
floor but not in the elevator lobby, Z239 activates and control
module L1M2 is active.

Example # 2: General Alarm

L1D1 activates L1M1 through Z1. L1D2 activates
L1M2 through Z2. L1D3 and L1D4 activate L1M4
through Z3. L1M3 will activate when reverse zone
239 is activated. Z239 will activate when Z1, Z2 or Z3
are activated.
Notification Appliance L1M3 serves as the General
Alarm device. It will be activated whenever an alarm
occurs on any initiating device in the system, due to
the fact that all initiating devices activate a Software
Zone, and activation of any zone activates software
zone Z239.
SCS Series Manual — P/N 15712:L 7/18/16
L1D1
(Z1)
Z1
L1M1
OR(Z1)
L1D1 L1D2
(Z1) (Z2)
Z2
Z1
L1M1 L1M2
OR(Z1) OR(Z2)
AM2020/AFP1010 Control-By-Event
L1D2 L1D3
(Z1) (Z1)
AND(Z1 Z238)
RZON
RZON
Z239
Z240
RZON
RZON
Z238
Z239
NOT(Z2)
L1M2
OR(Z239)
L1D3
(Z3)
RZON
RZON
Z239
Z240
OR(Z1 Z2 Z3)
L1M3
OR(Z239) OR(Z3)
L1D4
Z2
L1M4
OR(Z1 Z2)
L1D4
Z3
L1M4
