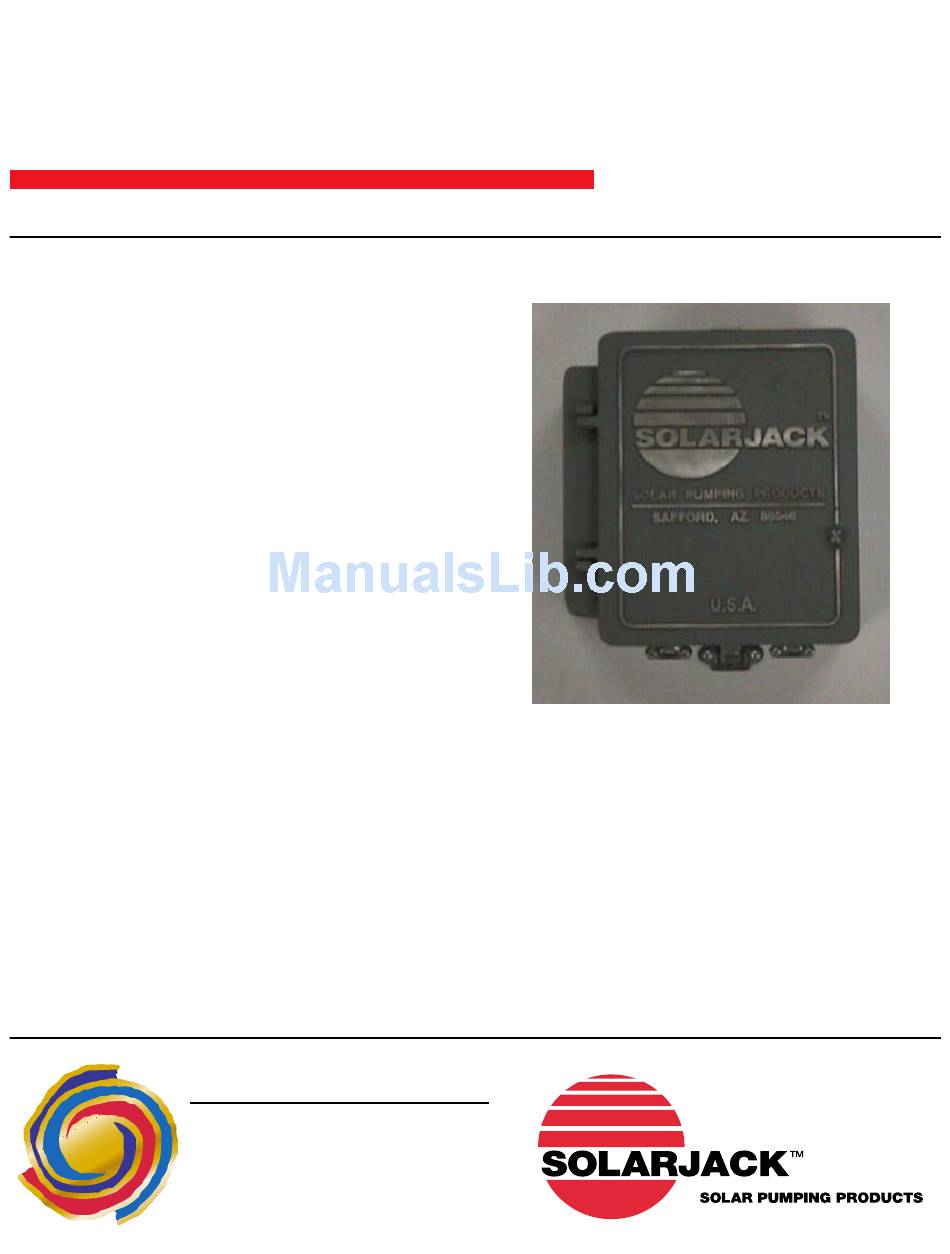

SOLARJACK PCB-120 Datasheet

SOLARJACK™
PCB SERIES
BRUSHLESS DC
PUMP CONTROLLERS
PCB-90, PCB-120, PCB-180
These brushless motor pump controllers provide
power tracking current boosting operation that extends
the effective pumping day to provide more water output
per installed watt of solar array. They feature output short
circuit protection and electrode inputs to control pump-
ing based on water level in the borehole or the storage
tank. The electrode inputs can also be used with
switches to effect other forms of manual control.
Controller

Current Boosting

Number of 15 vdc Modules in Series

Pump control logic

Nominal voltages (switch selectable)

Maximum input voltage tolerated

Maximum array current (amps)

Type of output protection

High side switch (grounded
output negative – NEC compliant)
GOLDEN GENESIS COMPANY
SUNLIGHT TO SERVICE
7812 E. Acoma Drive
Scottsdale, AZ 85260
800-223-9580 Fax 480-483-6431
www.goldengenesis.com
PCB-90
YES
3,4,5,6
YES
45,60,75,90
200
14
FUSE
YES
PCB-120
YES
5,6,7,8
YES
75,90,105,120
250
14
FUSE
YES
PCB-180
YES
9,10,11,12
YES
135,150,165,180
300
14
FUSE
YES
