SOLARJACK PVA 5-30 User Manual

Sds submerisible pump controller
Hide thumbs

Advertisement

Quick Links

Download this manual
PVA 5-30
SDS SUBMERISIBLE
PUMP CONTROLLER
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PVA 5-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOLARJACK PVA 5-30

Summary of Contents for SOLARJACK PVA 5-30

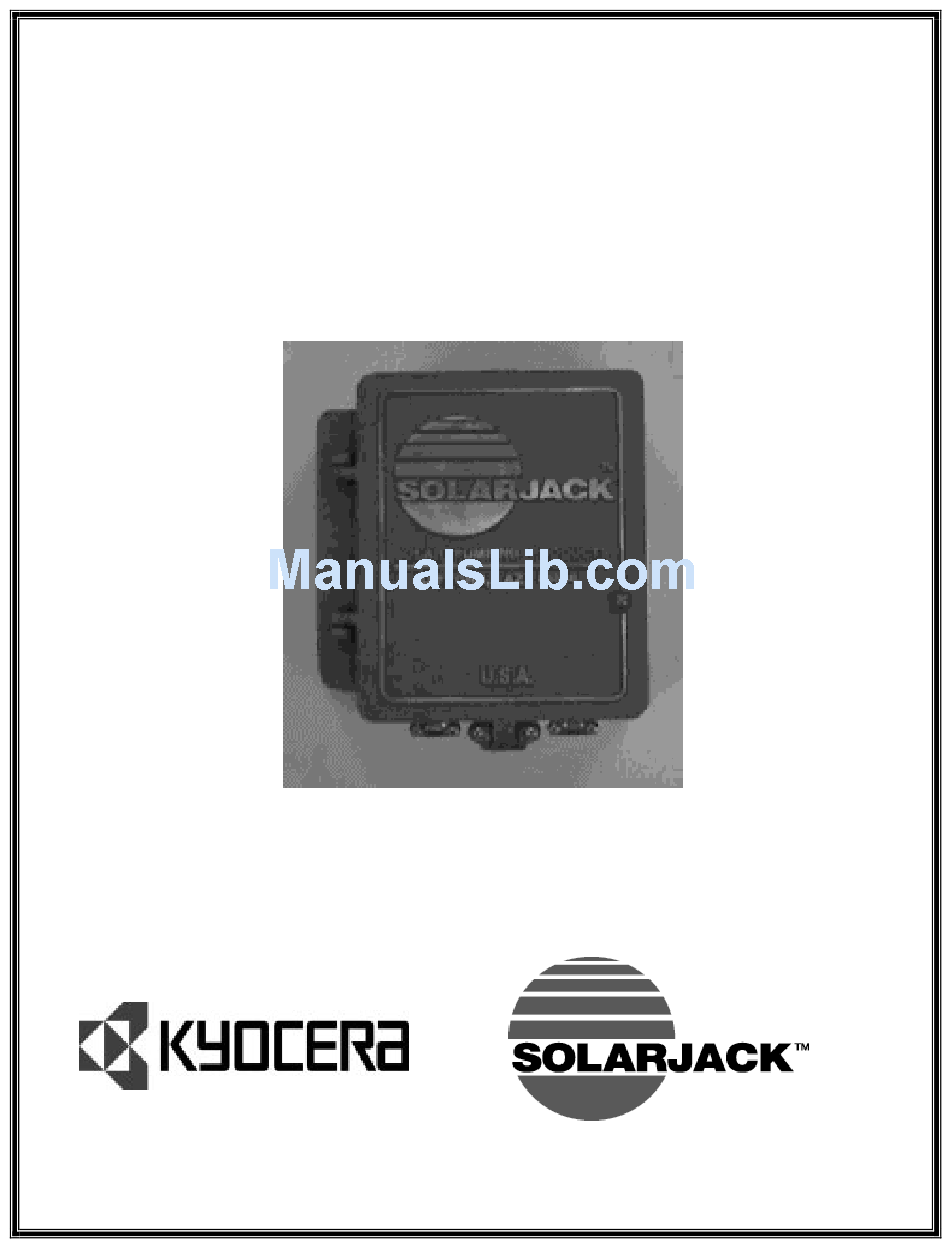

  • Page 1 PVA 5-30 SDS SUBMERISIBLE PUMP CONTROLLER USER’S MANUAL...
  • Page 2 PVA5-30 PUMP CONTROLLER 12-30 VOLT STEP-UP FOR CONTROLLERS WITH SERIAL NUMBERS 13630 AND ABOVE WITH OUTPUT OVER-VOLTAGE FAULT INDICATOR The SOLARJACK PVA5-30 PUMP CONTROLLER is a high quality, solid state, DC power converter designed as an interface between an SDS series pump and the DC power source.
  • Page 3 PVAS-30 SPECIFICATIONS Input Voltage 12-28 Volts (24 Volt Battery System Max) Maximum Output Current 5 AMPS Maximum Input Current 10 AMPS Maximum Surge Current 15 AMPS Maximum Output Power 150 Watts (30V @ 5A) FEATURES Current Boosting for matching the load requirements of the pump, in low sunlight conditions.
  • Page 4 12/06/99...
  • Page 5 WIRE TERMINAL DESCRIPTIONS WITH DIP SWITCH #6 ON: High water cut-off (Tank fill-up) LOW WATER LEVEL SENSOR turns the pump on.(Mount an E-1s electrode 2” above the ground sensor.) HIGH WATER LEVEL SENSOR turns the pump off. (Mount an E-1s brass electrode at the desired turn-off point.) WITH DIP SWITCH 45 ON: Low water cut-off LOW WATER LEVEL SENSOR turns the pump off.
  • Page 6 12/06/99...
  • Page 7 12/06/99...
  • Page 8 12/06/99...
  • Page 9 12/06/99...
  • Page 10 12/06/99...
  • Page 11 CONTROLLER ADJUSTING PROCEDURE There is a six position selector switch on the face of the controller with preset voltage settings for various panel and battery arrangements. Please refer to the chart below for the switch position for your system. Only one of the first four switches should be in the ON position at one time. These preset voltage settings will work with the majority of the systems on the market.

  • Page 12: Troubleshooting

    TROUBLESHOOTING PUMP DOES NOT RUN 1. Check wiring diagrams for proper connections. (If a battery system is used and the polarity is reversed, damage to the controller will result). 2. Check for proper panel, controller, and/or battery voltage with a volt meter.
  • Page 13 EXCESSIVE CURRENT DRAW Check wiring diagrams for proper connections. Check for skinned wires or faulty underwater splice. (See manual section 2.3d in your pump manual) Check for a locked motor armature. (With the pump out of the well, bypass the controller and connect power directly to the motor leads. If the pump still does not run and the current is over 1.5 amps, the pump is in a locked rotor condition and must be repaired.) 12/06/99...
  • Page 14 6RODUMDFN V/LPLWHG:DUUDQW\ PVA 5-30 Controllers LIMITED WARRANTY – TWENTY-FOUR MONTHS SOLARJACK warrants the product to be free from defects in materials and workmanship under normal applications and service conditions for twenty-four (24) months from date of sale to the original purchaser, but not to exceed (30) months from the date of manufacture.
