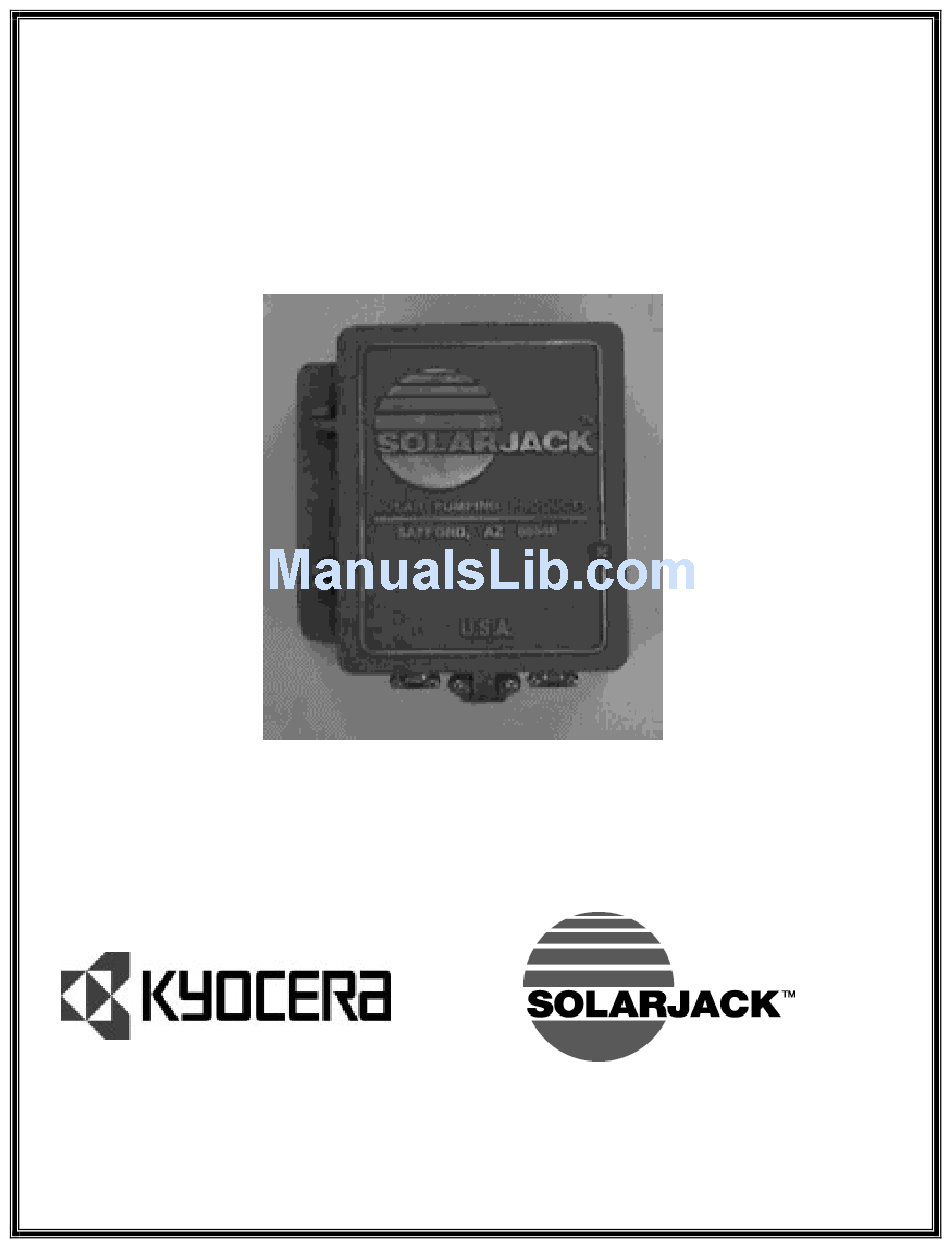

- Page 1 PCB-180 DC SUBMERISIBLE PUMP CONTROLLER USER’S MANUAL...
- Page 2 PCB8-180C SOLARJACK'S HIGH VOLTAGE PC SERIES PUMP CONTROLLERS SOLARJACK'S PC series controllers are state-of-the-art solid state power converters designed as an interface between a SOLARJACK pump and the DC power source. The purpose of this controller is to maximize the total daily water output while providing protection for the pump as well as the power source.
- Page 3 Weathertight enclosure WIRING THE PCB-180 SERIES CONTROLLER The PCB-180 Series controllers are limited to a maximum of twelve 17 volt panels connected in series for the 180 volt systems. However, more panels may be connected in parallel. This controller has a 4 position preset input voltage selector switch designed for various solar module arrangements.
- Page 4 LARGE WIRE TERMINAL BLOCK NEGATIVE WIRE from the PV array. NEGATIVE WIRE to the pump or load POSITIVE WIRE to the pump or load. POSITIVE WIRE from the PV array. SMALL WIRE TERMINAL BLOCK LOW WATER ELECTRODE HIGH WATER ELECTRODE GRD/RS LOW WATER GROUND AND REMOTE SWITCH GROUND REMOTE ON-OFF CIRCUIT is used to turn the pump on and off from a...
- Page 5 It is recommended that the ground electrode be placed 2 inches above bottom of the tank or the ground wire can be attached to the tank if the tank is metal. The low water electrode should be placed at the desired turn-on point and the high water electrode should be placed at the desired turn-off point.
- Page 6 Return the panels to their normal position. The pump will then operate at its maximum output. (Option 2) For estimated panel voltage adjustment. With the system installed and pumping water, turn the panels away from the sun until the pump flow rate is reduced by approximately 50%.
-
Page 7: Troubleshooting
TROUBLESHOOTING PUMP DOES NOT RUN If the pump does not run, first make sure the on/off switch is in the up position. Then look at the row of lights to check the status of the system. The red light (indicating power in) and the green light (indicating power out) are the only ones that should be on. - Page 8 IF THE RED AND GREEN LIGHTS ARE ON, WITH ALL OTHER LIGHTS OFF AND THE PUMP DOES NOT RUN: (IN GOOD SUNLIGHT) 4. Check for proper controller output voltage. Connect a DC volt meter across terminals 2 (LD-) and 3 (LD+) on the large terminal block. If no voltage is indicated check the fuse. If the fuse is good and there is no voltage on the output, the controller has an internal problem and must be sent back to the factory for repairs.
- Page 9 12/07/99...
- Page 10 12/07/99...
- Page 11 12/07/99...
- Page 12 12/07/99...
- Page 13 12/07/99...
- Page 14 6RODUMDFN V/LPLWHG:DUUDQW\ PCA and PCB Controllers LIMITED WARRANTY – TWENTY-FOUR MONTHS SOLARJACK warrants the product to be free from defects in materials and workmanship under normal applications and service conditions for TWENTY-FOUR (24) months from date of sale to the original purchaser, but not to exceed (30) months from the date of manufacture.
