SOLARJACK PCA 8-60B User Manual

Sds submerisible pump controller
Hide thumbs

Advertisement

Quick Links

Download this manual
PCA 8-60B
SDS SUBMERISIBLE
PUMP CONTROLLER
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCA 8-60B and is the answer not in the manual?

Questions and answers

Related Manuals for SOLARJACK PCA 8-60B

Summary of Contents for SOLARJACK PCA 8-60B

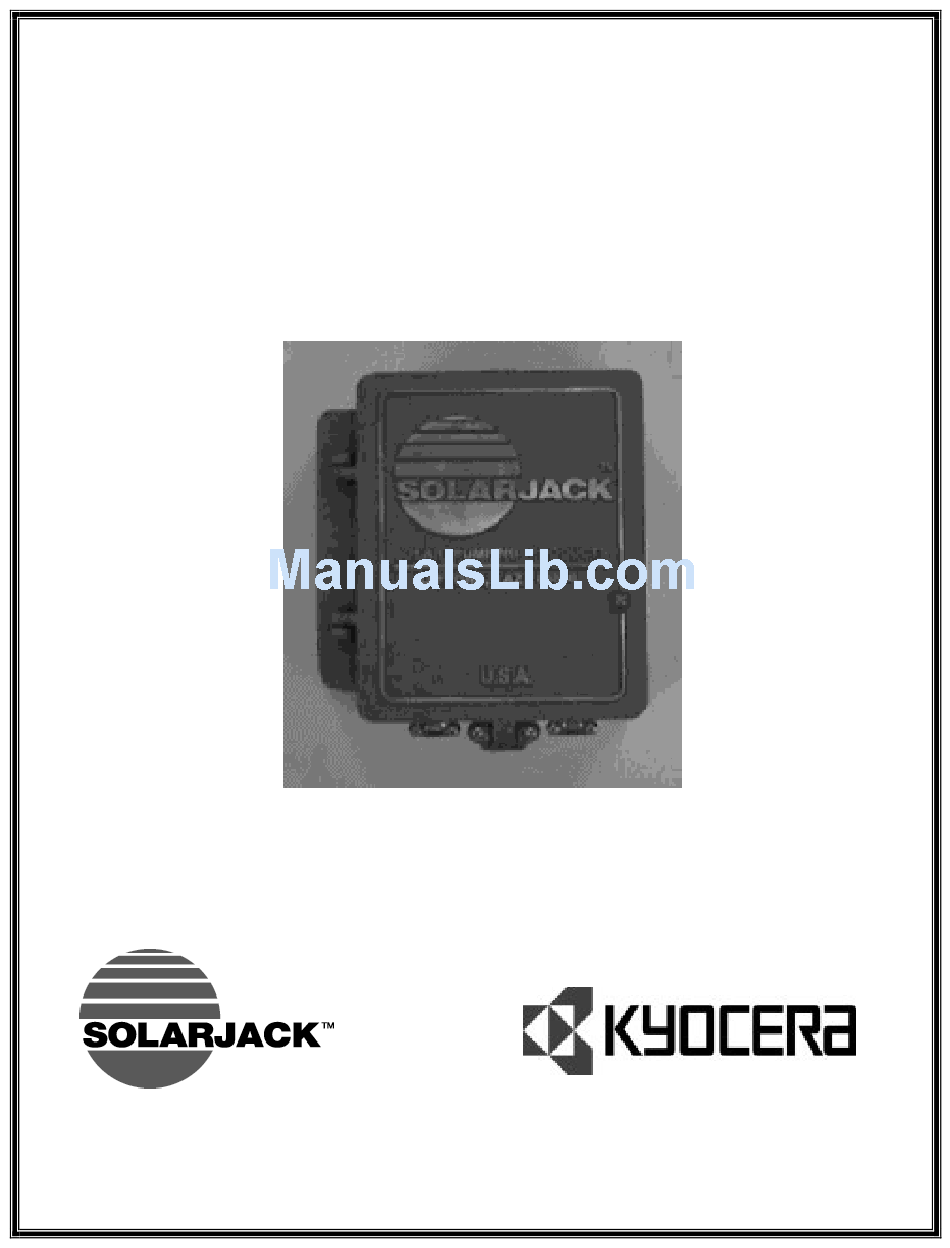

  • Page 1 PCA 8-60B SDS SUBMERISIBLE PUMP CONTROLLER USER’S MANUAL...
  • Page 2 PCA 8-60B The SOLARJACK PCA 8-60B PUMP CONTROLLERS are high quality, solid state, DC power converters designed as the interface between a SOLARJACK SDS series pump and the DC power source. This power source may be solar panels or batteries. The purpose of the controller is to maximize the total daily water output while providing protection for the pump as well as the power source.
  • Page 3 13.) Reversible logic for electrode circuit. 14.) Reversible logic for the remote cut-off switch WIRING THE PC SERIES CONTROLLER CAUTION: Reverse polarity on a battery system or a panel system capable of producing over 10 amps will damage the controller. WIRE TERMINAL DESCRIPTION WITH DIP SWITCH #6 OFF: High water cut-off (tank fill-up) 1) LO...
  • Page 4 CONTROLLER ADJUSTING PROCEEDURE The PC series controller has an easy to adjust pre-set voltage selector switch. This six position selector DIP switch is located on the face of the controller and has three preset voltage settings for various panel and battery arrangements.

  • Page 5: Troubleshooting

    TROUBLESHOOTING PUMP DOES NOT RUN 1. Check wiring diagrams for proper connections. 2. Check for proper panel voltage with a volt meter. A quick look at the indicator lights will verify power coming from the panels going to the controller (red), power from the controller going to the pump (green) and over- current turn-off (yellow).
  • Page 6 IF NO VOLTAGE IS SEEN AT TERMINALS 6 LD- AND 7 LD, THEN: Make sure the switch is turned on. (In the up position) 2. Check to see if the water level is above the top electrode when the low water cut-off circuit is being used, or below the bottom electrode when the high water cut-off circuit is being used.
  • Page 7 7/19/1999...
  • Page 8 1 LOW WATER ELECTRODE 5 SOLAR MODULES NEG. 2 HIGH WATER ELECTRODE 6 PUMP NEGATIVE 3 GROUND ELECTRODE AND 7 PUMP POSITIVE REMOTE SWITCH GROUND 4 REMOTE SWITCH POSITIVE 8 SOLAR MODULES POS. SOLAR MODULE PRESET VOLTAGE SETTINGS 1 ON FOR 2 MODULES WIRED IN SERIES (30 VOLTS) 2 ON FOR 3 MODULES WIRED IN SERIES (45 VOLTS) 3 ON FOR 4 MODULES WIRED IN SERIES (60 VOLTS) 4 FOR FACTORY USE ONLY...
  • Page 9 WELL ELECTRODE INSTALLATION 7/19/1999...
  • Page 10 7/19/1999...
  • Page 11 7/19/1999...
  • Page 12 7/19/1999...
  • Page 13 6RODUMDFN V/LPLWHG:DUUDQW\ PCA 8-60B Controllers LIMITED WARRANTY – TWENTY-FOUR MONTHS SOLARJACK warrants the product to be free from defects in materials and workmanship under normal applications and service conditions for tweenty-four (24) months from date of sale to the original purchaser, but not to exceed (30) months from the date of manufacture.
