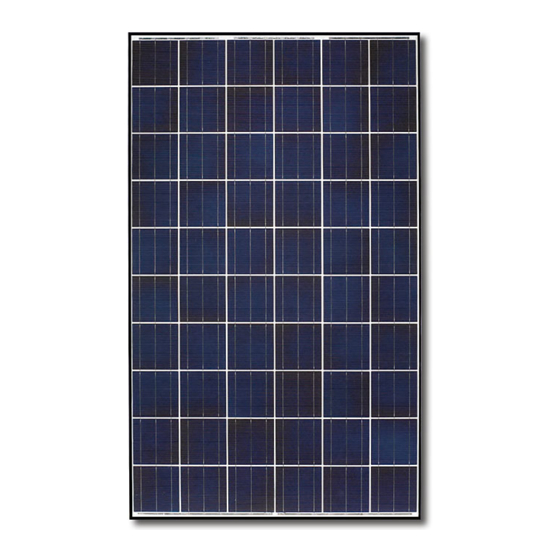

High efficiency multicrystal photovoltaic module

Advertisement

Quick Links

Cutting Edge Technology

years in solar, Kyocera demonstrates leadership in the
development of solar energy products. Kyocera's Kaizen
Philosophy, commitment to continuous improvement, is
shown by repeatedly achieving world record cell efficiencies.

Quality Built In

UV stabilized, aesthetically pleasing black anodized frame
Supported by major mounting structure manufacturers
Easily accessible grounding points on all four
corners for fast installation
Proven junction box technology with PV wire to
work with transformerless inverters
Quality locking plug-in connectors to provide safe &
quick connections
QIGU.E173074
NEC 2008 Compliant UL 1703, ISO 9001 and ISO 14001
Certified and Registered Class C
Also available:
QUALIFIED FOR "BUY AMERICAN"
Manufactured in San Diego, California

HIGH EFFICIENCY MULTICRYSTAL PHOTOVOLTAIC MODULE

KD 200-60 Series
As a pioneer with 35
UL Listing
KD 200-60 F Series

New Process Improvements

All solar cells are fabricated with a new proprietary
etching and coating process which translates into
a 'smoother' appearance while maintaining the
same gridline and bus-bar design.
All modules have added crossbars on the back side
of the module for greater support and stability in
harsh conditions, including high wind and snow
load regions.

Reliable

Superior built-in quality
Proven superior field performance
Tight power tolerance

Warranty

Kyocera standard 20 year power output warranty
and 5 year workmanship warranty applies in USA
Extended warranties available per project
requirements
Kyocera standard 20 year power output warranty
and 2 year workmanship warranty applies
outside of USA
Refer to Kyocera warranty policy for details

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD 200-60 F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kyocera KD 200-60 F

  • Page 1 KD 200-60 F Series HIGH EFFICIENCY MULTICRYSTAL PHOTOVOLTAIC MODULE KD 200-60 Series Cutting Edge Technology New Process Improvements As a pioneer with 35 years in solar, Kyocera demonstrates leadership in the • All solar cells are fabricated with a new proprietary development of solar energy products.
  • Page 2 KD 200-60 F Series MecHaNIcal SPECIFICATIONS electrIcal SPECIFICATIONS Standard Test Conditions 4.25in 108mm KD230GX-LFB KD235GX-LFB KD240GX-LFB JUNCtION CABLE w/ 29.8 29.8 29.8 CONNECtOR LABEL 7.72 7.89 8.06 stABILIzER BAR 36.9 36.9 36.9 8.36 8.55 8.59 +5/-3 +5/-3 +5/-3 tolerance Nominal Operating Cell stABILIzER BAR Temperature Conditions (NOCT) 45.0...
