Cutting Edge Technology
As a pioneer with 35 years in solar, Kyocera demonstrates
leadership in the development of solar energy products.
Kyocera's Kaizen Philosophy, commitment to continuous
improvement, is shown by repeatedly achieving world
record cell efficiencies.
Quality Built In
•
UV stabilized, aesthetically pleasing black anodized frame
•
Supported by major mounting structure manufacturers
•
Easily accessible grounding points on all four
corners for fast installation
•
Proven junction box technology with PV wire to
work with transformerless inverters
•
Quality locking plug-in connectors to provide safe &
quick connections
QIGU.E173074
NEC 2008 Compliant UL 1703, ISO 9001 and ISO 14001
Certified and Registered Class C
Also available:
QUALIFIED FOR "BUY AMERICAN"
Manufactured in San Diego, California

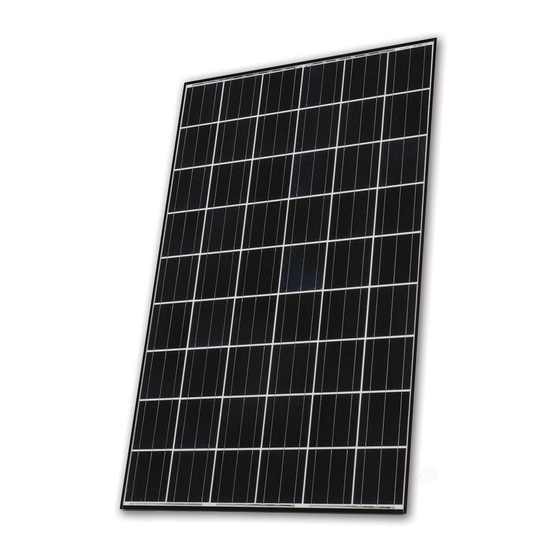

HIGH EFFICIENCY MULTICRYSTAL PHOTOVOLTAIC MODULE
KD200-60 P Series
UL Listing
KD200-60 P Series
Reliable
•
Superior built-in quality
•
Proven superior field performance
•
Tight power tolerance
Warranty
•
Kyocera standard 20 year power output warranty
and 5 year workmanship warranty applies in USA
•
Extended warranties available per project
requirements
•
Kyocera standard 20 year power output warranty
and 2 year workmanship warranty applies
outside of USA
•
Refer to Kyocera warranty policy for details
Advertisement
Table of Contents
Related Manuals for Kyocera KD200-60 P Series
Summary of Contents for Kyocera KD200-60 P Series
- Page 1 KD200-60 P Series HIGH EFFICIENCY MULTICRYSTAL PHOTOVOLTAIC MODULE KD200-60 P Series Cutting Edge Technology Reliable As a pioneer with 35 years in solar, Kyocera demonstrates • Superior built-in quality leadership in the development of solar energy products. • Proven superior field performance Kyocera’s Kaizen Philosophy, commitment to continuous •...
- Page 2 KD200-60 P Series MecHaNIcal SPECIFICATIONS electrIcal SPECIFICATIONS Standard Test Conditions 4.25in 108mm KD230GX-LPB KD235GX-LPB JUNCtION CABLE w/ 29.8 29.8 CONNECtOR 7.72 7.89 36.9 36.9 8.36 8.55 stABILIZER BAR +5/-3 +5/-3 tolerance* Nominal Operating Cell Temperature Conditions (NOCT) 47.9 47.9 NOct 26.4 26.4 37.99(±0.1)in...
