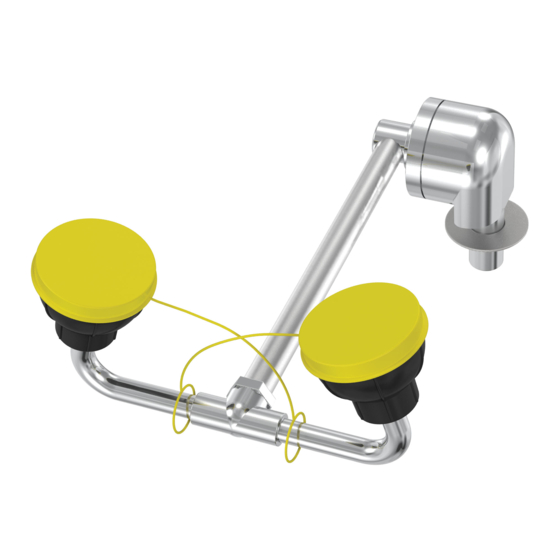

Deck-mounted eyewash (S19-280D) is shown.
Wall-mounted eyewash (S19-280W) is similar.
Une douche oculaire qui est montée au comptoir (S19-280D) est montrée.
Une douche oculaire qui est montée au mur (S19-280W) est similaire.
Se muestra una lavador de ojos que se monta a la mostrador (S19-280D).
Un lavador de ojos que se monta a la mostrador (S19-280W) es similar.
Deck-mounted eye/face wash (S19-290D) is shown.
Wall-mounted eye/face wash (S19-290W) is similar.
Une douche oculaire/faciale qui est montée au comptoir (S19-290D) est montrée.
Une douche oculaire/faciale qui est montée au mur (S19-290W) est similaire.
Se muestra una lavador de ojos/rostro que se monta a la mostrador (S19-290D).
Un lavador de ojos/rostro que se monta a la mostrador (S19-290W) es similar.
Deck-mounted Halo™ eye/face wash (S19274JDB) is shown.
Wall-mounted Halo™ eye/face wash (S19274JWB) is similar.
Une douche oculaire/faciale Halo™ qui est montée au comptoir (S19274JDB) est montrée.
Une douche oculaire/faciale Halo™ qui est montée au mur (S19274JWB) est similaire.
Se muestra una lavador de ojos/rostro Halo™ que se monta a la mostrador (S19274JDB).
Un lavador de ojos/rostro Halo™ que se monta a la mostrador (S19274JWB) es similar.
215-1740 Rev. C; ECN 15-05-042
© 2017 Bradley
Page 1 of 32
12/7/2017
Installation
S19-280D, S19-280W,
S19-290D, S19-290W,
S19274HDB, S19274HWB,
S19274JDB, S19274JWB
Barrier Free Swing-Down Eyewash and Eye/Face
Wash Units, Wall and Deck Mount
Douche oculaire et oculaire/faciale sans barrière,
activée par bras mobile, support de mur ou de
comptoir
Lavador de ojos y de ojos/rostro con fácil acceso,
activado por brazo oscilante, montaje de la pared
o de mostrador
Deck-mounted Halo™ eyewash (S19274HDB) is shown.
Wall-mounted Halo™ eyewash (S19274HWB) is similar.
Une douche oculaire Halo™ qui est montée au comptoir
(S19274HDB) est montrée. Une douche oculaire Halo™
qui est montée au mur (S19274HWB) est similaire.
Se muestra una lavador de ojos Halo™ que se monta a la
mostrador (S19274HDB). Un lavador de ojos Halo™ que
se monta a la mostrador (S19274HWB) es similar.
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
P.O. Box 309
bradleycorp.com
