FlexDSL Orion2 Quick Installation Manual

SHDSL.bis
Up to 60Mbps
Ddd
E1 / Nx64 /Ethernet

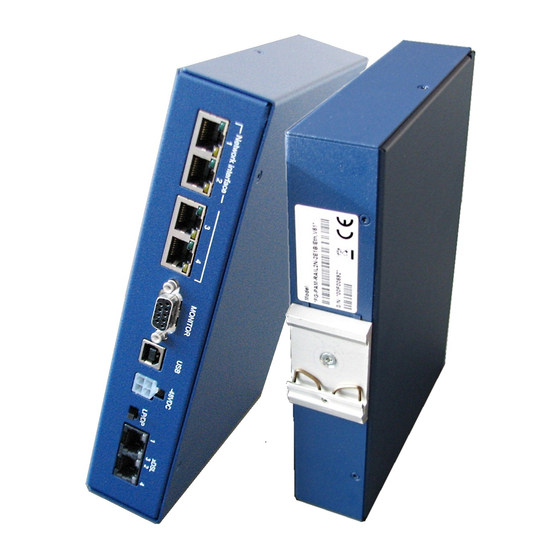

FlexDSL Orion3
The FlexDSL Orion3 SHDSL.bis product family offers a broad range of products, which are based on the latest SHDSL.bis
standards (ITU-T G.991.2 & ETS TS 101524), while also being fully interoperable with all our existing SHDSL equipment
(Orion1, Orion2 and MiniFlex). The FlexDSL Orion3 supports beside of the standardized TC-PAM16/32 also the new extended
TC-PAM4/8/64/128 line coding with a software upgrade code. The support of these extended line codes ensures compatibility
with existing SHDSL equipment, that is already installed, in order to protect customer investments, while at the same time
providing an upgrade path to the newest DSL technologies.
SHDSL.bis allows symmetrical data and voice transmission at speeds up to 15Mbps over a single pair of copper. In addition,
the FlexDSL Orion3 SHDSL.bis modem range also supports DSL channel bonding for up to 4 copper pairs in order to achieve
speeds to 60.8Mbps!! FlexDSL Orion3 SHDSL.bis modems can provide up to 2 complete E1 interfaces, which support framed
and unframed services (G.703/704). An integrated 2/4 port Ethernet layer 2 managed switch with VLAN, QoS and RSTP
support (10/100BaseT) ensures connectivity to IP services. Beside of E1 and Ethernet we have additional interfaces like Nx64
that can be configured to be a V.35, V.36, X.21 or V.28 interface (cable selected). Also RS-232 and RS-485 (asynchrounous)
are available. This makes FlexDSL Orion3 SHDSL.bis modems a perfect solution for a wide range of applications in which
TDM and IP services need to be transmitted over copper wires.
Like all FlexDSL Orion products the FlexDSL Orion3 SHDSL.bis modems are based on industrial components and
manufactured according to highest quality standards provi ding additional value due to the extended temperature ranges and
higher reliability. The combination of comprehensive functions providing maximum flexibility together with the higher quality of
the FlexDSL Orion3 SHDSL.bis product family make it the perfect choice for all your DSL needs.
Possible Applications
a)
b)
FlexDSL Telecommunications AG
Steinackerstrassse 31
8902 Urdorf
Switzerland
Features
Up to 15Mbps Data Transmission per Copper Pair
•
SHDSL and SHDSL.bis, TC-PAM16/32
•
• Additional TC-PAM4/8/64/128 Available
1, 2 or 4 Copper Pairs Support
•
2 or 4 Port Ethernet Switch (10/100BaseT)
•
QoS, VLAN and RSTP Support
•
E1 (G.703/704, Balanced/Unbalanced)
•
Nx64 (V.35, V.36, X.21, V.28) and RS-232/485
•
Multi-Service Operation
•
Point-to-Point and Point-to-Multipoint Operation
•
Console Port, Telnet, Web, SNMP Management
•
24/48VDC Powered, Low Power Consumption
•
Included Primary Protection
•
Robust DIN-Rail Metal Enclosure
•
Industrial Temperature Range Available
•
a) Ethernet Transmission Point-to-Point
b) Ethernet Transmission Point-to-Multipoint
c) Ethernet Add/Drop over a Long Copper Line
