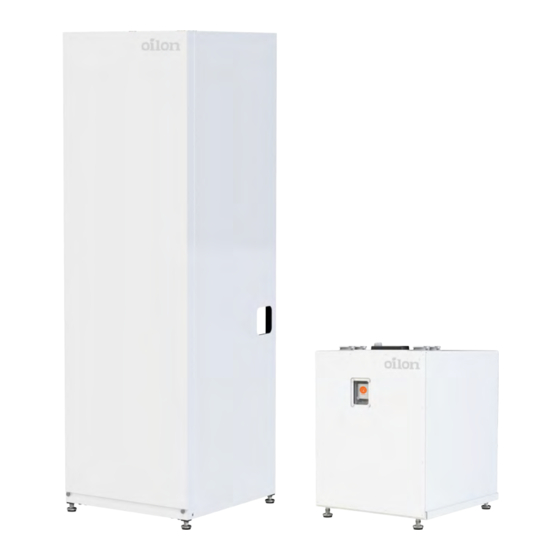

CUBE and ECO
INSTALLATION AND
COMMISSIONING
M8006 2123EN
10 June 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO Series and is the answer not in the manual?

Questions and answers

Related Manuals for Oilon ECO Series

Summary of Contents for Oilon ECO Series

  • Page 1 CUBE and ECO INSTALLATION AND COMMISSIONING M8006 2123EN 10 June 2021...

  • Page 3: Table Of Contents

    Contents Introduction Heat pumps covered in this manual............3 Instructions and diagrams................3 Safety notice and warnings................ 3 Transportation and storage.................5 Scope of delivery..................6 Accessories....................7 Installation Installation site..................10 Dimensions, connections, and components..........11 Outdoor temperature sensor (CUBE, ECO)..........13 In-line heater (CUBE, ECO)..............
  • Page 4 Condenser circuit flow................47 Brine circuit flow..................47 Pumps....................... 48 EU Product Data..................51 2 (54) M8006 2123EN...

  • Page 5: Introduction

    1 Introduction 1.1 Heat pumps covered in this manual Heat pump models with EasyAce control Designation Refrigerant CUBE 6 EasyAce CUBEH607 R-410A ECO 6 EasyAce ECO607 R-410A CUBE 8 EasyAce CUBEH807 R-410A ECO 8 EasyAce ECO807 R-410A CUBE 10 EasyAce CUBEH1007 R-410A ECO 10 EasyAce...
  • Page 6 Electrical safety Once powered on, some of the unit’s components carry a hazardous voltage. Always pay attention to electrical safety when working with or near electrical components. Before any maintenance or servicing, switch off electricity using the main switch and ensure that there is no voltage present in the unit’s components.

  • Page 7: Transportation And Storage

    1.4 Transportation and storage Storage Store the unit upright in a warm, dry place. Protect the device against water and dust. Do not stack goods on the unit. Transportation Transport the unit upright and protected against water and dust. Do not stack goods on the unit.

  • Page 8: Scope Of Delivery

    1.5 Scope of delivery Equipment and components Item Oilon designation Wireless touch screen 378810400 ● For using the EasyAce control app to control the heat pump’s automation system Wireless touch screen ver. 1 Outdoor temperature sensor 36217543 ● Sensor ID is TE0.

  • Page 9: Accessories

    Sensors and actuators EasyAce CUBE   BRINE CIRCUIT TE101 Brine circuit in (evaporator in) TE102 Brine circuit out (evaporator out) P101 Brine pump (evaporator circuit pump) HEATING TE201 Heating water in (condenser in) TE202 Heating water flow (condenser out) P201 Heating pump (condenser circuit pump) EB203 In-line heater, condenser circuit...
  • Page 10 Accessories Accessory Auxiliary controller with enclosure Designation 32586192 Description An enclosure containing an auxiliary controller for regulating heating circuit 2 and 3 or increasing the number of I/O slots for different functions. Installed on top of the heat pump unit (ECO) or in the upper part of the heat pump frame (CUBE). 24 V input from the heat pump, 230 V input from the building’s distribution board.
  • Page 11 Accessory 3-way valve for heating circuit, DN20-4 Designation 34034467 Description Esbe VRG133 11602900, DN20, Kvs 4, 22 mm crimped connection Actuator 36962089, 36962220 Accessory Change-over valve kit Designation GEOEXCV1 Description Includes a change-over valve and valve actuator (designation: 34034063 and 34034064).

  • Page 12: Installation

    2 Installation 2.1 Installation site Site planning and selection ● Install the unit and the associated equipment in a warm, dry place. ● The installation site’s ambient temperature must be within +5...+40 °C (non- condensing). ● No condensate should accumulate onto the unit’s components from ambient air (non-condensing atmosphere).

  • Page 13: Dimensions, Connections, And Components

    Floor drain The unit’s installation site must have a floor drain. The site’s floor should be inclined so that any runoff from the unit leads towards the drain. 2.2 Dimensions, connections, and components CUBE CUBE, EasyAce ver. 1 measurements in the image are in millimeters Domestic hot water from storage tank 22 mm steel pipe Cold domestic water to storage tank...
  • Page 14 Thermostatic mixing valve assembly with DHWV Oilon designation: 34034069 safety valve (optional accessory) Adjustable feet M10, DIN/ISO 17/16 mm Front panel   Front panel mounting screws Thumbscrews EB203 Electric immersion heater 6 kW A: domestic hot water FV202 Change-over valve B: building heating The unit’s fuses and a number of terminal...

  • Page 15: Outdoor Temperature Sensor (Cube, Eco)

    Marking Function Position, Position, CUBE Default Upon Default Upon delivery delivery Compressor’s motor protection circuit breaker Electric immersion heater fuse Control fuse (automation system fuse) Fuse shared by the unit’s pumps 2.3 Outdoor temperature sensor (CUBE, ECO) The outdoor temperature sensor (TE0) is supplied already connected to its sensor cable (TE0–W1).
  • Page 16 Accessory In-line heater, 6 kW Designation 37069089 Description 3 x 2 kW (230 V L–N), connection box, thermostat 25–85 °C, overheat protection 110 °C (manual reset), 28 mm steel pipes Intended use Electric in-line heater for installation in an ECO heat pump’s condenser line. Setup (CUBE) Reset the in-line heater’s overheat protection device during installation.

  • Page 17: Bleeding The Domestic Hot Water Coil (Cube)

    Remove the plastic lid with a slot-head screwdriver. Before resetting the overheat protection device, determine what caused the device to trip and address the issue. The device may have tripped due to vibration during transport or relocation. The electric immersion heater cartridge contains three 2-kW heating elements. The combined power rating for the heating elements is 6 kW.

  • Page 18: Thermostatic Mixing Valve Assembly (Cube, Optional)

    Pos. Item Water to return line Flow line shut- off valve closed Air out Change-over valve in position B Bleeding DHW coil (EasyAce) ver. 1 2.6 Thermostatic mixing valve assembly (CUBE, optional) Accessory Thermostatic mixing valve assembly Designation 34034069 Description Thermostatic mixing valve for domestic hot water LK 545-22 AquaMix 090195;...
  • Page 19 Pos. Item Cold water to the DHW tank Hot water from the DHW tank to the valve Domestic hot water from the valve to the DHW system Mixing valve assembly installation ver. 1 DHW tank connections The domestic hot water tank has 22 mm stainless steel fittings for the valve assembly. The valve assembly has 22 mm brass compression fittings.

  • Page 20: Change-Over Valve (Eco, Optional)

    Fill valve LK 536 EA This valve unit contains two shut-off valves, a non-return valve, and an inspection plug. The fill valve meets EN1717 requirements. Once the system has been filled, close both shut-off valves. Safety valve LK 514 10 bar Opening pressure: 10 bar.

  • Page 21: Electrical Connections, Covers, And Cable Management

    Install the sensor in the domestic hot water tank’s sensor pocket as specified in the piping diagram. ● If a dedicated tank is used, install the sensor in the lower section of the tank. ● If a combined storage tank is used, install the sensor in the upper section of the tank.

  • Page 22: Pipe Joints

    2.10 Pipe joints The pipe joints have 1" inner threads at the ends. Use the supplied flat gaskets to seal each joint. Equip the pipes with shut-off valves. Be careful not to twist or turn the unit’s pipes. This could loosen the pipe joints inside unit.
  • Page 23 6. Remove the change-over valve’s (FV202) actuator from the valve body. The actuator is held in place by a locking pin; pull the pin out. 7. Detach the corrugated heating water inlet hose from its tee connector (located on the lower section of the storage tank). ●...

  • Page 24: Heating Circuits

    3 Heating circuits 3.1 Buffer tank Enable the buffer tank from Initial Setup settings (see chapter Commissioning) or from Heating settings (see the table below) DEVICE SETTINGS → SERVICE → HEATING Heating circuits take their heating energy either directly from the heat pump’s condenser or the heating circuit’s buffer tank.

  • Page 25: Flow Temperature Sensor For Heating Circuit 1 (Cube, Eco)

    to the auxiliary controller. Select the terminals for the buffer tank sensor from the auxiliary controller’s settings. The auxiliary controller will be delivered with additional instructions. Connections (ECO) If the heating circuit has no buffer tank, disconnect the sensor from the relevant terminal block.
  • Page 26 Connections (CUBE) The connections for the sensor are indicated in the unit’s electric diagram. Connect the sensor to terminal block X3’s terminals 4 and M (either wire in either terminal). Installation (CUBE, ECO) The heating circuit 1 flow sensor (TE212) is used to control the circuit’s control valve (FV222).

  • Page 27: Heating Water Temperature, Return To Condenser (Eco)

    Pos. Item Flow direction Tee fitting Sensor probe in pocket Sensor pocket connection Tee fitting with sensor pocket ver. 1 Using a tee connector to install a sensor pocket in a small-diameter pipe. Sensor cable The cable can be extended if required. Use a regular insulated copper twin cable for connecting the cable and extending the cable (0.5 mm , length <...
  • Page 28 Valve and actuator Installation Below is a general description of how to install an Esbe VRG130 series control valve and the associated Esbe ARA600 series actuator. Other valves are installed in a similar way. For more detailed instructions, please refer to the guide delivered with the valve and actuator.
  • Page 29 DEVICE SETTINGS → SERVICE → HEATING Valve control The system has a circulation pump and a 3-way control valve, both of which are controlled by the heat pump. 0-10 V When the heating circuit requires more heat, the level of the valve control signal is increased (0 V: valve fully closed, 10 V: valve fully open).

  • Page 30: Heating Circuit Pump

    Connections for control valve actuator, 0–10 V Accessory Heating circuit control valve actuator, 0–10 V 24 V Designation 36962220 Description Esbe ARA639 12520100 (12520117 OEM), 0–10 V, 4–20 mA, 24 V AC/DC, 3 wires, 15/30/60/120 s 90°, pre-set to 60 s (DIP switch 2 ON), pre-set to OPEN (with increasing signal) counterclockwise CCW (DIP switch 6 ON) Valve 34034065, 34034067, 34034068, 34034467...
  • Page 31 DEVICE SETTINGS → SERVICE → HEATING → HEATING CIRCUIT 1 The heating circuit takes the heating energy either directly from the heat pump’s condenser or its buffer tank. The Connection setting determines which method is used. This option, in turn, allows you to select the equipment installed in the circuit.

  • Page 32: Heating Circuits 2 And 3

    Relative pressure control When the flow rate (demand for heating) is reduced, the system will reduce the pressure produced by the pump (i.e. the head of the pump). This control mode is suitable for systems where most of the pressure loss can be attributed to a common trunk line (distribution line with branches) shared by two or more heating circuits.

  • Page 33: Commissioning

    4 Commissioning 4.1 General The heat pump’s automation system is operated with an app installed in a smartphone or tablet. This app is used to connect to the heat pump’s built-in data hub. The unit is supplied with a wireless touch screen preinstalled with the app and with the connection already configured.

  • Page 34: Initial Setup Settings

    3. Select Users and roles. 4. Select Service. 5. Enter the password and tap OK. 6. You are now signed in as a service-level user. ● The Service level password is 8520. Return from the menu by tapping the arrow in the top left corner.
  • Page 35 Heating Buffer not used The heat pump is connected directly to the building’s heating system without a buffer tank. The configuration may include a flow-through water tank, but not a buffer tank regulated by the heat pump. Connection Buffer in use The heat pump is connected to a buffer tank which is regulated by the heat pump.
  • Page 36 → ADDITIONAL HEATING An electric immersion heater (in-line heater) operates in the same manner as the compressor and uses the same setpoint values. The heater switches on and off (and transitions between higher and lower power stages) with a delay. Condenser flow pipe The condenser flow line includes an in-line heater (electric immersion heater).
  • Page 37 → ADDITIONAL HEATING Freezing protection only The electric immersion heater will be switched on only when heating water temperature falls below 5 °C. The freezing protection function monitors the temperature in the condenser, buffer tank, and the heating circuits. Once the temperature exceeds 10 °C, the immersion heater will be switched off.
  • Page 38 → Additional heating If any of the settings specified below have been selected, the system can switch on the electric immersion heater during DHW heating (as long as the legionella function has been enabled) when the compressor reaches the bounds of its operating envelope and is consequently switched off.
  • Page 39 Start heatpump Start the heat pump either using this option or later from the Service menu. The heat pump is switched off. Used Operating mode The heat pump is switched on. Additional heater only Only the unit’s internal electric immersion heater is used for heating. The compressor and the brine circuit are not in use.

  • Page 40: Operation

    5 Operation 5.1 Heat pump operation The system’s connection diagrams are provided as a separate document. The heat pump collects heat from the fluid in the brine circuit and releases the heat collected through a condenser and into heating water. In addition to the heat pump itself, CUBE heat pump units include an in-line heater for supplementary and backup heating.
  • Page 41 determines when heating starts (instead of the flow water temperature). Whenever the building’s domestic hot water needs heating, space heating will be suspended until domestic hot water has been heated to a sufficient temperature. Domestic hot water tank heating will start when the DHW tank temperature (minus the switching difference) falls below the domestic hot water target temperature.

  • Page 42: Technical Data

    6 Technical data 6.1 Technical data The performance between different units may vary. This variation is due to a wide number of factors, such as the properties of the fluids used in the circuits, fouling of the heat transfer surfaces in the condenser and evaporator circuit, flow rates, individual differences between compressors (standard EN 12900) as well as refrigerant circuit charge and adjustments made to the refrigerant circuit during installation.
  • Page 43 Model/rated output 3~, 400 V, 50 Hz, PE Compressor heating only, electric immersion   10 A 10 A 16 A 16 A 20 A 20 A heater disabled or not installed Heating by either compressor or electric immersion heater,   16 A 16 A 16 A...
  • Page 44 Dimensions ECO dimensions Pos. Dimension Pos. Dimension     42 (54) M8006 2123EN...
  • Page 45 CUBE dimensions Pos. Dimension Pos. Dimension Pos. Dimension 2010 1910 Domestic hot water tank DHW storage tank CUBE models Type Condenser water circulates in a coil, DHW is stored in and supplied from the tank Volume Domestic hot water plate heat exchanger  ...
  • Page 46 DHW storage tank CUBE models Maximum permissible operating pressure Storage tank's material (stainless/acid-proof   LDX 2101 (EN 1.4162) steel) Coil material   AISI 316L (EN 1.4404) Clearance required for lifting the unit upright CUBE Clearance for lifting upright ver. 1 44 (54) M8006 2123EN...

  • Page 47: Compressor Units

    6.2 Compressor units CUBE, ECO MODEL / RATED OUTPUT (kW) 3~ 400 V, 50 Hz, PE Refrigerant circuit (EU517/2014) Contains fluoridized     greenhouse gases Hermetically sealed     device To be checked     periodically for leaks (charge limit 10 CO2- equiv.

  • Page 48: Performance Data

    Compressor electric power (active power) Electric current taken by the compressor 10.7 12.4 To view performance data in other conditions, please use the Oilon Selection Tool (www.oilon.com). SCOP and SPF value MODEL / RATED OUTPUT (kW)3~ 400 V, 50 Hz, PE  ...

  • Page 49: Condenser Circuit Flow

    6.4 Condenser circuit flow The unit has an internal condenser circuit pump. MODEL / RATED OUTPUT (kW) 3~ 400 V, 50 Hz, PE CLEAN WATER Pump                 Brine 0 °C / –3 °C and water 30 °C / 35 °C (B0/W35) Water temperature difference °C Water flow rate...

  • Page 50: Pumps

        Pump head for external pressure loss 10.5 10.1 CUBE 6.6 Pumps Pumps Oilon Pump Information designation: 1-phase, wet-motor, G 1 outer thread, Wilo-Yonos PARA GT A 34023071 installation dimension 130 mm, inverse PWM, 4– 15/7.5 PWM1 130 mm 6h 75 W (0.04–0.66 A)
  • Page 51 Pump curves Wilo-Yonos PARA GT 7.5 Grundfos UPMXL GEO 25-125 M8006 2123EN 49 (54)
  • Page 52 WILO-STRATOS PARA 1-12, ΔP-C (CONSTANT) WILO-STRATOS PARA 1-12, ΔP-V (VARIABLE) Fluid being pumped: ethanol, content: 28%, fluid temperature during operation: –1.5 °C, viscosity: 7.66 mm /s, density: 970 kg/m Wilo-Stratos Para 1–12, external control mode via analog input (0–10 V) 50 (54) M8006 2123EN...

  • Page 53: Eu Product Data

                    a supplier’s name or trademark     Oilon Oilon Oilon Oilon Oilon Oilon b supplier’s model identifier     6 07 8 07 10 07 13 07 17 07 21 07 Cube...
  • Page 54 COMMISSION DELEGATED REGULATION (EU) No 811/2013, ANNEX IV c space heating application     °C / °C / °C / °C / W 55 W 55 W 55 W 55 °C °C °C °C c water heating load profile    ...
  • Page 55         space heaters and heat pump combination heaters   supplier’s name or trademark     Oilon Oilon Oilon Oilon Oilon Oilon   supplier’s model identifier     6 07 8 07 10 03 13 07 17 07...
  • Page 56 COMMISSION REGULATION COMMISSION REGULATION (EU) No 813/2013 ANNEX II TABLE 2   On standby 0.01 0.01 0.01 0.01 0.01 0.01   In crankcase heating mode 0.00 0.00 0.00 0.00 0.00 0.00   SUPPLEMENTARY HEATER              ...
  • Page 58 Contact information of Oilon dealer: OILON GROUP P.O. Box 5 FI-15801 LAHTI FINLAND Tel: +358 3 85 761 Fax: +358 3 857 6239 Email: info@oilon.com Date of installation: www.oilon.com...
