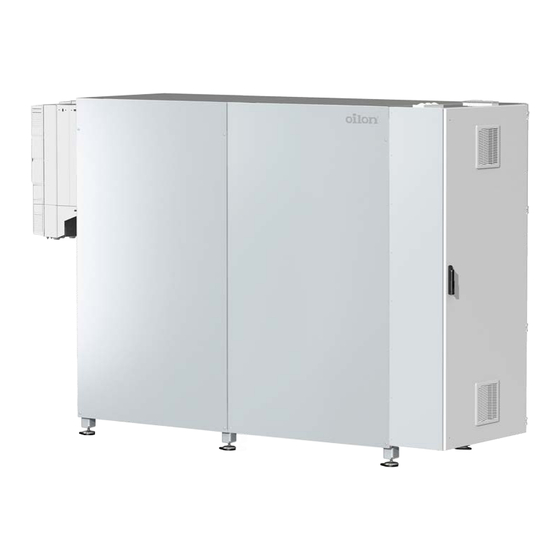

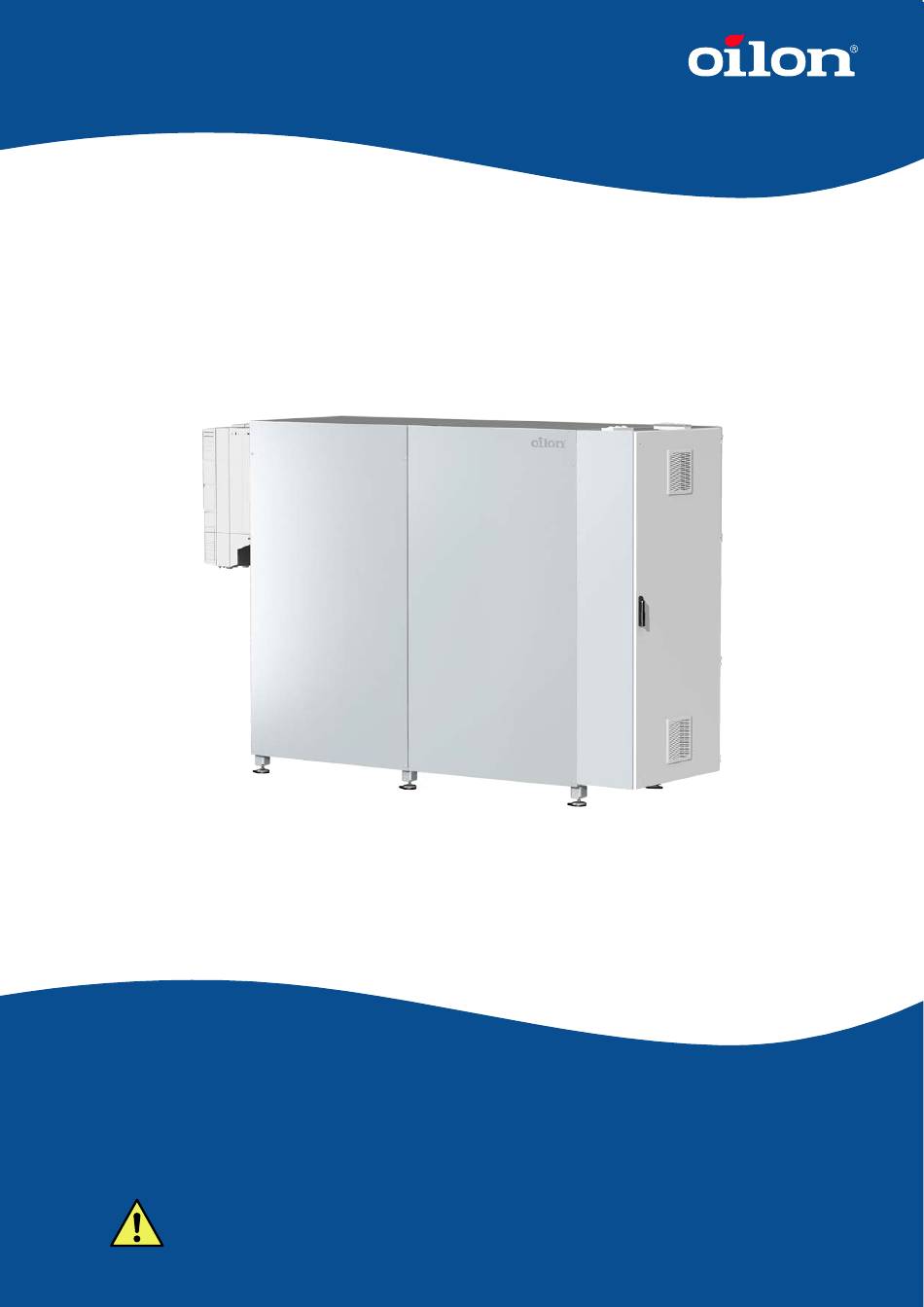

Installation and operation manual

ChillHeat RE 210 – RE 420

Read these instructions carefully before installation, use, or maintenance

Need help?

Do you have a question about the ChillHeat RE 210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Oilon ChillHeat RE 210

Page 1 CHRE01 1946EN 20 November 2019 Installation and operation manual ChillHeat RE 210 – RE 420 Read these instructions carefully before installation, use, or maintenance...
Page 3 Contents Introduction Safety precautions..................3 Transportation and storage.................6 Delivery content, optional equipment and accessories.......7 Technical data Heat pump technical data................8 Installation Installation site requirements..............9 Main parts....................11 Dimensioning heat pump................11 Connections and dimensions..............12 Installing flow switch................. 12 Flow diagrams...................13 Electrical connections................
Page 4 5.14 Viewing PID controller values..............43 5.15 Viewing measured data history..............45 5.16 Exporting trend..................48 5.17 Using ChillHeat with MobileDrive............. 49 5.18 Using MobileDrive..................50 Maintenance Regular check and maintenance.............. 55 Troubleshooting..................55 2 (58) CHRE01 1946EN...
Page 5 Note indicates tips, hints, and other essential information. Keep these instructions as well as the electrical diagrams available near the device. Oilon products are manufactured according to general product standards and directives, and based on our best knowledge about product design, and technologies.
Page 6 Do not touch hot pipes or surfaces during operation or maintenance. Disposal of refrigerant The refrigerants used in Oilon heat pumps are in normal working conditions non-toxic and non-flammable. Read the following information always before starting any work on the appliance. Follow the instructions and take care of preventive safety measures.
Page 7 Potential health hazards First aid measures SKIN: Irritation would result from a defatting action Promptly flush skin with water until all chemical is on tissue. Liquid contact could cause frostbite. removed. If there is evidence of frostbite, bathe with lukewarm water. Do not use hot water, and do not rub.
Page 8 Risks Preventive measures PERSONAL PROTECTIVE EQUIPMENT: SKIN PROTECTION: Skin contact with refrigerant may cause frostbite. General work clothing and gloves (leather) should provide adequate protection. If prolonged contact with liquid or gas is anticipated, insulated gloves constructed of PVA, neoprene or butyl rubber should be used.
Page 9 ● Move the heat pump vertically with a forklift or two pallet jacks. ● When using pallet jacks place one to each side of the pump. Lifting Lifting supports are welded to the pump frame, see illustration. Lifting brackets ver. 1 A and B, lifting supports Use a forklift or a pallet jack to lift the heat pump according to the labeling on the device.
Page 10 2 Technical data 2.1 Heat pump technical data Dimensions and weight Measurements without RE 210 RE 330 RE 420 cover and extra legs Height (mm) 2056 2056 2056 Width (mm) 1550 2676 2676 Depth (mm) Weight (kg) 1700 2400 2600 Connections For information on pipe connections, see connection diagrams delivered with the ChillHeat pump.
Page 11 3 Installation 3.1 Installation site requirements Installation, commissioning, or service of the appliance is to be carried out by authorized and trained personnel only, adhering to all local regulations and requirements. The heat pump must be installed into a location that is not accessible to the general public.
Page 12 ● The minimum temperature for the site is 10 °C. ● The heat pump installation surface is horizontal and even. ● All feet of the heat pump system are firmly attached to the floor, and that the load is evenly shared on all feet. ●...
Page 13 3.2 Main parts ChillHeat RE 210 – RE 420 main parts D071859 ver. 4 The assembly may vary depending on the scope of delivery. Pos. Part Pos. Part Control cabin Compressor Control panel Refrigerant pressure double relief valve with change valve...
Page 14 3.4 Connections and dimensions For information on connection positions and sizes, refer to the diagrams delivered with the ChillHeat pump. 3.5 Installing flow switch ● Install the flow switch in the inlet pipe on the cold side. ● A straight pipe of 4 x D is required before the flow switch (the pipe length must be at least 4 x the pipe diameter).
Page 15 Legend Safety valve piping to outside air Customer delivery scope Oilon Scancool delivery scope Recommended to use a filter. Balancing valve in customer delivery scope One heat pump with one refrigerant circuit Flow diagram example 1xHP 1xref circuits ver. 2...
Page 16 Position Description Evaporator Subcooler Condenser Compressor 1FS11 Flow switch One heat pump with two refrigerant circuits Flow diagram example 1xHP 2xref circuits ver. 1 Position Description Customer LV. switchgear Control cabin Desuperheater Evaporator Subcooler Condenser Compressor 1FS11 Flow switch 14 (58) CHRE01 1946EN...
Page 17 Two heat pumps, evaporators in parallel, and condensers in parallel Flow diagram example 2xHP con_p eva_p ver. 2 Position Description Customer LV. switchgear Control cabin Desuperheater Evaporator Subcooler Condenser Compressor 1FS11 Flow switch CHRE01 1946EN 15 (58)
Page 18 Two heat pumps, condensers in parallel, and evaporators in series Flow diagram example 2xHP con_p eva_s ver. 2 Position Description Customer LV. switchgear Control cabin Desuperheater Evaporator Subcooler Condenser Compressor 1FS11 Flow switch 16 (58) CHRE01 1946EN...
Page 19 Two heat pumps, condensers in series, and evaporators in parallel Flow diagram for 2xHP con_s eva_p ver. 2 Position Description Customer LV. switchgear Control cabin Desuperheater Evaporator Subcooler Condenser Compressor 1FS11 Flow switch CHRE01 1946EN 17 (58)
Page 20 Flow diagram f2xHP con_s eva_s ver. 2 Position Description Customer LV. switchgear Control cabin Desuperheater Evaporator Subcooler Condenser Compressor 1FS11 Flow switch The customer determines final pipe sizes. Flow switch is in Oilon Scancool delivery scope, but customer takes care of installation. 18 (58) CHRE01 1946EN...
Page 21 3.7 Electrical connections A general description of the needed electrical connections is given in this section. The actual connections should be made according to the wiring diagrams delivered with the heat pump. Do not connect devices that draw over 2 A of current directly to the controller.
Page 22 ● have expert knowledge about heating and cooling systems ● be familiar with the heat pump control system It is recommended that an Oilon expert performs commissioning. Tasks to be completed before commissioning: ● connect the electrical supply to the heat pump ●...
Page 23 4.2 Checking hot circuit 1. Check that condensers and subcoolers are correctly connected. Make sure that the flow direction is correct. Use the latest PI or flow diagram for reference. 2. Make sure that all transmitters in the hot water system are installed and connected. 3.
Page 24 4.4 Checking refrigerant circuit 1. Make sure that nothing was damaged or loosened during transport. 2. Check screws and flange connections. 3. Check oil and refrigerant levels and make sure that there are no leaking connections. Use an electronic sniffer, but note that they usually react on all kinds of chemicals.
Page 25 2. To move to the next screen, press the Next button. 3. To use the Startup Assistant to commission the heat pump, press Yes. If you want to start the unit without the Startup Assistant, press No. 4. Continue by following the given instructions. 5.
Page 26 ● Measure compressor current. ● Control superheating temperature. ● Check and trim expansion valve functionality. ● Define overcurrent protection device settings. ● Perform thermal protection device functional test. ● Inspect running restrictions, evaporator and condenser side temperature settings, and delays in restart. ●...
Page 27 ● Evaluate that the time to reach the set point is short enough. ● Evaluate that the temperature is stable at its set point, and does not oscillate around the set point. 2. To adjust the controller, adjust the P and I values of the controller as follows. a.
Page 28 4.10 Setting up distribution condenser/subcooler 1. Start the circulation and open up all throttling valves to the fully open position. If the circuit is capacity controlled, make sure the system is running at the maximum flow. 2. Measure the individual flows and compare to the specified flows. Measured total flow: m3/h or kg/s If the flow notably deviates from the specified flow, search for the reason for this deviation.
Page 29 Subcooler, optional One of the underlying ideas in the design of the Oilon ChillHeat product family has been to use a single machine both for cooling and heating. All ChillHeat products are well suited for heating and cooling applications, either as dedicated cooling or heating solutions or as a combined solution.
Page 30 It is possible to connect several ChillHeat heat pumps connected in series for an even higher capacity heating or cooling solution. Automation is an important feature in all ChillHeat products. A versatile automation system enables energy-efficient and easy ChillHeat operation. 5.2 Operating principle GSHP19 ver.
Page 31 The high-pressure gaseous refrigerant is led into the condenser, where it releases its heat energy into the water that circulates between the ChillHeat pump and the heat sink. As the refrigerant releases its heat energy and its temperature drops, it condenses to liquid form again.
Page 32 In this example, water is cooled down to 7 °C, and the energy taken from the water is used to heat up heating network water to 60 °C. Collecting heat The Oilon ChillHeat heat pumps can use various heat sources for collecting heat, for example: ● recovered waste heat at refrigeration plants to generate hot water, thereby substituting valuable primary energy ●...
Page 33 5.4 Coefficient of performance Heat pump efficiency ratios are measured by the coefficient of performance (COP) and cooling coefficient of performance (COPc) values. COP indicates the amount of heat energy produced by the heat pump divided by the energy consumed by the heat pump. COP depends largely on heat source and heating network temperatures.
Page 34 5.6 Control panel The Home screen is the main screen of the heat pump user interface. It enables you to have an overview of the heat pump, and to turn it on or off. Compressors: power percentage as number, colors: Grey: not ready to start 32 (58) CHRE01 1946EN...
Page 35 White: ready to start Green: running Blinking red: alarm 5.7 Changing settings Settings The Settings screen enables you to make changes to the various settings, such as the operation mode and language. For details, see the following illustration and table. Settings screen ver.
Page 36 Basic Settings The Basic Settings screen enables you to view and change the unit basic settings as User. You can change the values that are shown in black on the screen by tapping on the values. Values that are shown in gray are read-only, and cannot be changed. Basic Settings screen ver.
Page 37 Advanced settings screen ver. 3 Position Item Description Power Control Opens the power control pop-up window, in which you can select, of which controller or limiter PID view you want to view. Optional Devices Optional devices include selection of buffer tank, 3-way valve pump, or cooler.
Page 38 5.8 Changing user level You can log in as a certain user on the Settings screen. The Logged in as section displays the logged-in user. Logged-in user ver. 1 1. To change the user level and log in, press The Login view opens. Login screen ver.
Page 39 Language screen ver. 2 2. To change the user interface language, press the desired flag icon. When selecting any other language than Simplified Chinese, the user interface language is immediately changed. Simplified Chinese requires restarting of the panel to get the changes in effect. 5.10 Setting time and date You can change date and time on the Settings screen.
Page 40 Unit Heat Mode ver. 2 Position Item Description Evaporator buffer screen Opens the evaporator buffer screen. Chill mode (inactive) Currently the heat mode is active. If chill mode was selected, the chill mode icon would be shown here. Unit 1 compressors Displays the status of each compressor of unit 1.
Page 41 Unit ver. 2 Position Item Description Compressor status display If a number is visible, it means that the motor is controlled by speed or power. Information message Information at start of the machine. The message is visible only if something is wrong. Compressor status display Yellow means that the compressor is controlled but not running.
Page 42 Evaporator ver. 1 Condenser buffer screen Condenser ver. 2 5.12 Viewing measured values and adjusting alarms Open the measurement pop-up window in the unit details view by pressing the respective value. In the measurement pop-up window you can view the measured value and adjust alarms as the Expert user.
Page 43 Measurement ver. 2 Position Item Description Measurement Measurement pop-up window Current value Displays the current measured value. Upper value Displays the upper limit of the measurement scaling. Alarm setpoint value Alarm setpoint value Lower value Displays the lower limit of the measurement scaling. Setpoint enabled Enabled setpoint for the alarm.
Page 44 Viewing on/off-controlled motor Motor On Off ver. 2 Position Item Description Motor status pop-up window On/off-controlled motor pop-up window. Displays the current motor status. Run time value Displays the running hours for the motor Manual control Sets the motor in manual control Automatic control Enables the automatic control of the motor Stop...
Page 45 Viewing speed-controlled motor Motor speed ver. 2 Position Item Description Motor status pop-up window Speed-controlled motor pop-up window. Displays the current motor status. Control value Displays the control value. Measured value Displays the measured value. Minimum power Displays the minimum power of motor. Controlled PV Displays the controlled process value.
Page 46 Power Control pop-up window ver. 1 In the PID pop-up window you can view the PID controllers. PID ver. 2 44 (58) CHRE01 1946EN...
Page 47 Position Item Description PID pop-up window PID (proportional integral derivative) pop-up window Maximum value Displays the maximum value. PV value Displays the process variable value. SP value Displays the set point value. Controlled PV Displays the controlled process value. SP for measurement Displays the set point for measurement.
Page 48 Trend history mode ver. 3 Position Item Description Time selection Selects the amount of time displayed in the time axis. Exit Exit the history mode. Open trend legend Displays the trend legend. Back to trend selection Goes back to the Trend Selection dialog box. Mode Displays the trend mode (History).
Page 49 Trend normal mode ver. 3 Position Item Description Trend scales Selects the scale of trend on the vertical axis. Scale selection Simple scale selection Time selection Simple time selection Mode selection Change to history mode. Time axis Time axis of trends Mode Displays the trend mode (Normal).
Page 50 Legend ver. 3 Position Item Description Trend legend The trend legend dialog box. Selection of trends displayed Hides or shows the selected measurement curve. Current value Real-time value of the measurement. 5.16 Exporting trend To export the trend datalog to an SD card or a USB stick, go to the Settings screen. 1.
Page 51 5.17 Using ChillHeat with MobileDrive The fixed control panel is optional on ChillHeat machines. It can be replaced with an Android application, that can be downloaded from www.oilon.com/MobileDrive. The device can be a smartphone or a tablet. However standard deliveries also include a tablet with the application.
Page 52 5.18 Using MobileDrive HOME Cards with upper right corner turned indicates that there are more pages behind this card (SETPOINT and HEATING). DEVICE STATUS: Gives unit´s operation permit. Displays heatpumps status information. SETPOINT: Displays unit setpoints and control mode. Click the card to access Basic settings page.
Page 53 TRENDS All unit measurements can be read from the Trend menu. ● Temperatures ● Efficiency ● Power Measurements can be read in real time. The desired measurement curve can be hidden or displayed. ALARMS All active alerts, warnings and alarms are displayed on the Active notification page. On this page you can also reset alarms.
Page 54 SETTINGS BASIC SETTINGS Device does not start if remote stop command is active from terminal block or modbus. Operation: Heating, Cooling Heating, The compressor power is controlled by outgoing hot water. Cooling, The compressor power is controlled by outgoing cold water. When heat pump equipped with frequency converter, ChilHeat function is always on.
Page 55 Timed Setpoint: Choose weekdays and times when the device is active. Compressor runtimes: Displays running hours at 10 hour accuracy. Digit only visible when compressor has operated over 10 hours. WARM SIDE / COLD SIDE Liquid type: A brine type for the warm side can be selected from the Warm side page. Water, Propylene glycol, Ethylene glycol and Ethanol.
Page 56 CUSTOM SETTINGS If the heat pump has special features, parameters can be changed here. OEM SETTINGS Only experts can access OEM window. Window contains measurements for trouble shooting and other technical data. LANGUAGE Select a language. CHILLHEAT From the ChillHeat top menu you can select which unit to connect. 54 (58) CHRE01 1946EN...
Page 57 6 Maintenance 6.1 Regular check and maintenance When maintaining the heat pump, note that adding and purging of a liquid refrigerant from the evaporator with standing water can cause a frost damage. Installation, commissioning, or service of the appliance is to be carried out by authorized and trained personnel only, adhering to all local regulations and requirements.
Page 58 If not, then oil alarm. Control on, but Electrical problem, either contactor or wiring. Check wiring, contact oilon service. running signal off Control off, but Electrical problem, either contactor or wiring. Check wiring, contact oilon service.
Page 59 Alarm active ver. 2 The Active Messages screen displays all active alarms and warnings, and allows you to acknowledge them. The History section displays the history of all occurred alarms. Active Messages screen ver. 3 Position Item Description Line with red background Active alarm, waiting for acknowledging Line with violet background Active information message...
Page 60 Position Item Description Line with red text Acknowledged alarm Line with orange background Active warning Ack All button Acknowledge alarm button Line with white background The alarm has been acknowledged and removed from the active messages list and stored to the alarm history. Filter button Filtering of messages 58 (58)
