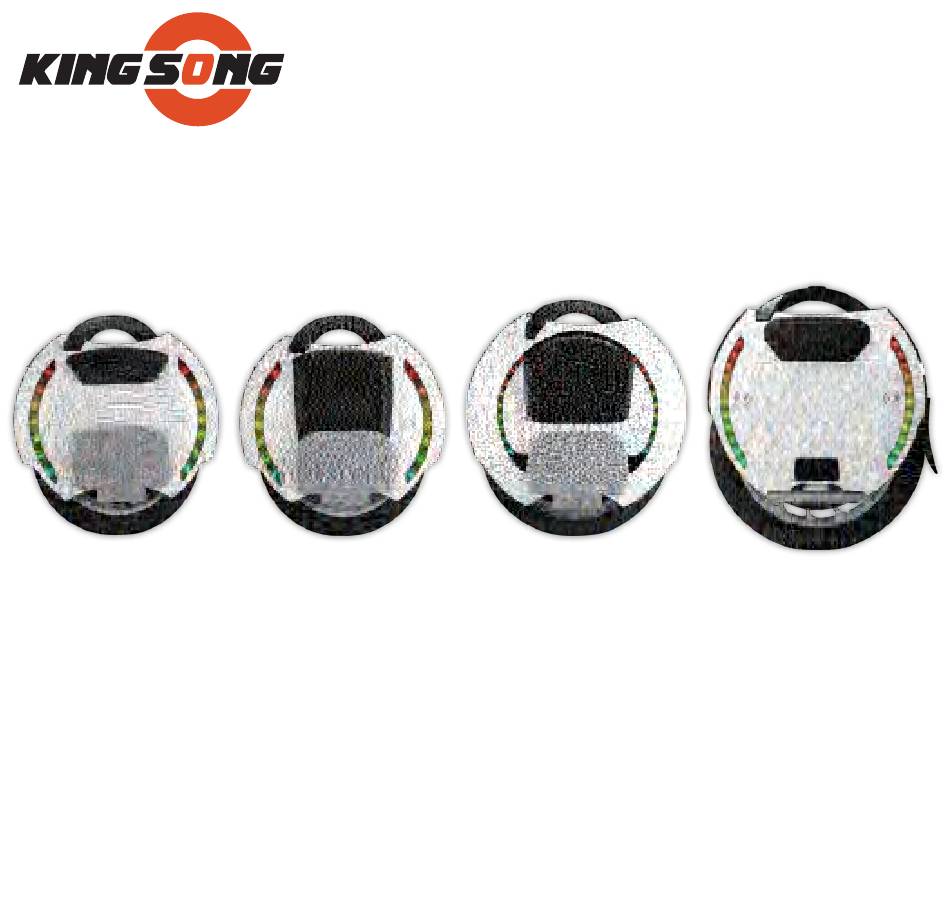

- Page 1 User Manual King Song Electric Unicycle...
- Page 3 Riding like all outdoor activities comes with it’s risks. You risk seroius danger and injury if you fall, collide or lose of control when riding, please ride with caution and at your own risk. Thanks you for purchasing King Song smart electric unicycle!
-
Page 4: Table Of Contents
Contents 1. Product Details--------------------------------------------------------01 2. Safety--------------------------------------------------------------------07 3. Features-----------------------------------------------------------------09 4. Precautions and Preparation---------------------------------------10 5. Battery-------------------------------------------------------------------13 6. Care and Maintenance----------------------------------------------14 7. Warranty----------------------------------------------------------------15... -
Page 5: Product Details
1. Product Details 1.1 Diagram: KS-14M / KS-14D 1. Trolley Bar 8. Tire 2. Power On/Off Button 9. illuminating Light 3. Charging Port 10. Port USB/Fuse 4. Pad 5. Speaker 6. RGB Light 7. Pedal... - Page 6 1.2 Diagram: KS-14S 1. Trolley Bar 8. Tire 2. Power On/Off Button 9. illuminating Light 3. Charging Port 10. Port USB/Fuse 4. Pad 5. Speaker 6. RGB Light 7. Pedal...
- Page 7 1.3 Diagram: KS-16S 1. Trolley Bar 8. illuminating Light 2. Auxliary Button 9. Pedal 3. Charging Port 10. Tire 4. Power on/off Button 5. Light Sensor 6. RGB Light 7. Speaker...

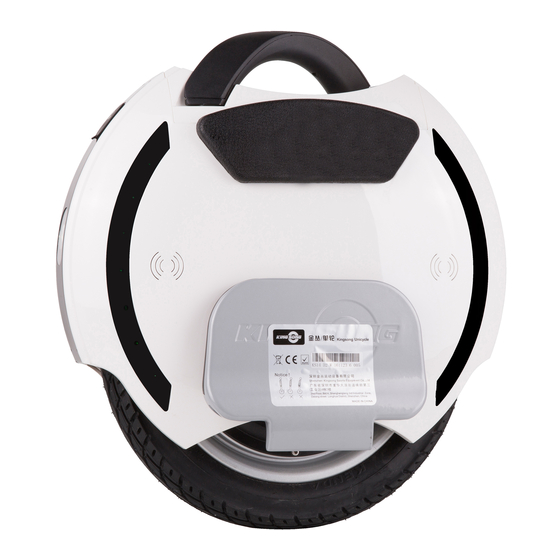

- Page 8 1.4 Diagram: KS-18L / 18XL 1. Trolley Bar 8. Padel 2. Power on/off Button 9. Tire 3. Charging Port 10. Shell 4. illuminating Light 11. Mud Guard 5. Pad 6. Speaker 7. RGB Light...
- Page 9 1.5 Specifications Model No KS-14M KS-14D KS-14S KS-16S KS-18L KS-18XL Rated Speed 20km/h 20km/h 20km/h 20km/h 20km/h 20km/h Top Speed 20km/h 30km/h 30km/h 35km/h 50km/h 50km/h 340Wh ≈30km 680Wh ≈60km 680Wh ≈60km 1036Wh 174Wh 1554Wh Mileage ≈18km ≈105km ≈140km 420Wh ≈40km 840Wh ≈80km...
- Page 10 340Wh 13.6kg 680Wh 15.2kg 680Wh 16.3kg Net Weight 13kg 21.6kg 25.4kg 420Wh 14.5kg 840Wh 16.2kg 840Wh 17.4kg Standard Charger*1; User manual*1 Acceossory 1.6 Main functions • Light sensor: Detecting light intensity, Lights on when it is dark, otherwise, it keeps off. •...
-
Page 11: Safety
automatically once back it vertically. • Buzzer and voice prompt: To ensure safety, there will be voice prompt to alert rider: over-voltage, over-power, low battery etc. Voice prompt can be shut off through app, but buzzer beeps can’t be. • Tilt-back protection: When over-speed, low-battery, high temperature, the pedal will title back to prevent further acceleration. - Page 12 , please decelerate at once. 2.2 Attention • Please wear helmet, gloves. Elbow/Knee pads or other protection garments. • Please check the device before ever ride to make sure no parts are loose or damaged. • When there are crowded pedestrians, please slow down to match their walking speed.
-
Page 13: Features
Other sudden unpredictable risks may occur during use, please ride with care. Kingsong Intell Co.,LTD will not be responsible for any injuries caused by unproperly operations of the device. 3. Features 3.1 Integrated trolley bar 3.2 Front illuminating light & Rear Brake light 3.3 APP •... -
Page 14: Precautions And Preparation
3.4 Riding Mode Riding Mode refers to the torque during start-off and braking. Expert Mode / Riding Mode / Learner Mode decelerate, turning and so on. Riding mode and Expert mode is for rider who want more performance. Experient mode can satisfy the group who wants to perform skills like jumping, also it can avoid pedal tilt back when climbing up or down steep hills. - Page 15 looseness, abnormal sound. We also highly suggest pushing the unicycle by ahnd to see if there's any friction between tire and the case of the wheel. • Have a friend assist you if required. • Please do not accelerate or decelerate rapidly, please also try to avoid over leaning or leaning too fast to prevent rider injury.
- Page 16 side of the wheel. If you are left footed, keep your other foot at around 5 o’clock, and if you are right footed please keep the other foot at around 7 o’ clock. If you are having a difficult time balancing the wheel under you make sure you find a centre point of balance between these three points: a) bottom of the tire b)where the top of you leg touches the wheel c) your foot.
-
Page 17: Battery
Note: The harder you lean forwards or backwards will dictate the speed in which the wheel accelerates and decelerates. 4.2.4 Turning When turning, lean your body gently to the side in which you want to go and straighten up when you want to go straight again! As you become more experienced at riding you will find other ways to turn such as;... -
Page 18: Care And Maintenance
5.2 Charging Forbidden to use chargers not original from factory to avoid accident. The device has a built-in lithium battery, no extra battery installation is required, just charge the device when it indicates low battery. 6. Care and Maintenance 6.1 Conservation Don’t place the unicycle in a wet condition. -
Page 19: Warranty
7. Warranty 7.1 Limited Warranty Manufacturer Kingsong Intell Co., LTD warrants the EUC by following limits. Motor, Controller board for 365 days from the item departure from factory. Battery package for 183 days from the item departure from factory. Warranty is valid only within a total mileage of 2000km. 7.2 Limited Warranty Above limited warranty DOES not include damage or lose not caused item’s defectives (i.e. - Page 20 Kingsong Intell Co.,LTD Address : BLDG 7, NO 71 XINGHU RD, 8TH INDUSTRY PARK, HONGXING, YUTANG,GUANGMING,SHENZHEN Tel : +86-755-23193477 Fax : +86-755-23193248 E-mail : info@szkingsong.com...
