King Song KS-16XS User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
KS-16X/XS
User
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the KS-16XS and is the answer not in the manual?

Questions and answers

Related Manuals for King Song KS-16XS

Summary of Contents for King Song KS-16XS

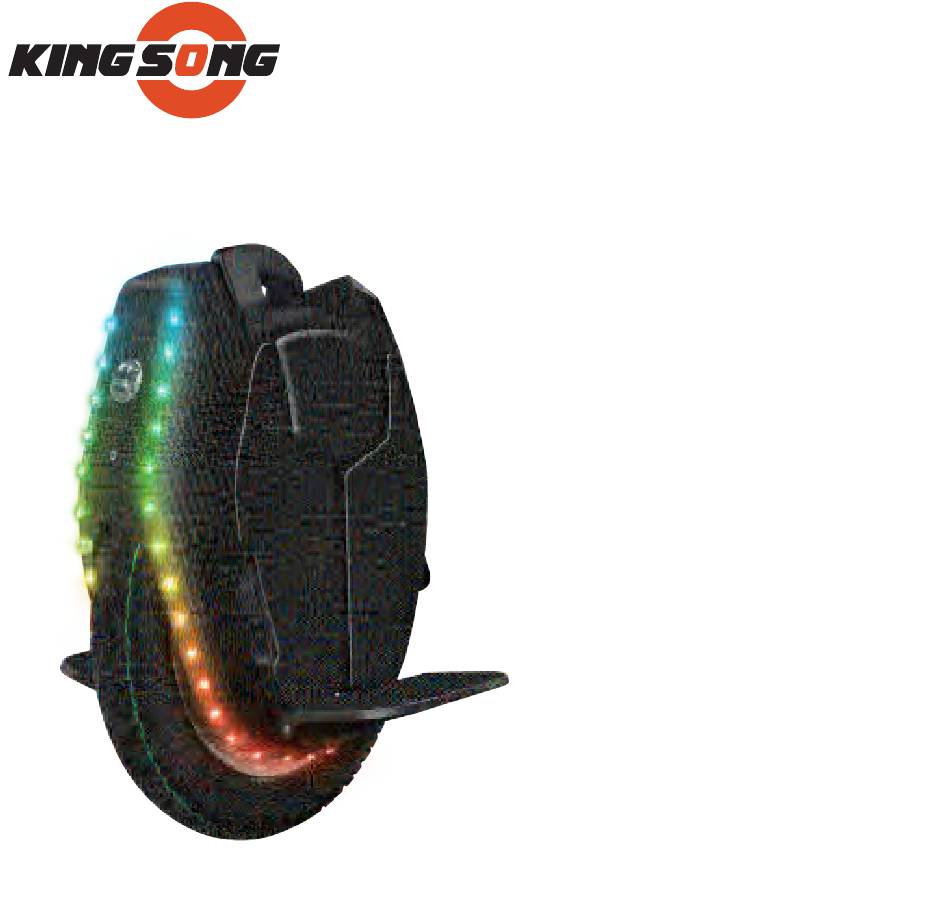

  • Page 1 KS-16X/XS User Manual...
  • Page 3 Riding like all outdoor activities comes with it’s risks. You risk seroius danger and injury if you fall, collide or lose of control when riding, please ride with caution and at your own risk. Thanks you for purchasing King Song smart electric unicycle!

  • Page 5: Table Of Contents

    Contents 1. Product Details--------------------------------------------------------01 2. Safety--------------------------------------------------------------------04 3. Features-----------------------------------------------------------------06 4. Precautions and Preparation---------------------------------------08 5. Battery-------------------------------------------------------------------11 6. Care and Maintenance----------------------------------------------11 7. Warranty----------------------------------------------------------------12...

  • Page 7: Product Details

    1. Product Details 1.1 Diagram: KS-16X / 16XS 1. Dual USB Port 8. Trolley Handle 2. Headlight 9. PU Foam 3. RGB Led 10. Pedal 4. Power Button 11. Dual Charger Port 5. Light Sensor 12. Woofer 6. Out Shell 13.
  • Page 8 1.2 Specifications Model No KS-16X KS-16XS Top Speed 0~10km: 40km/h; exceed 10km: decode to 50km/h (Default speed beep setting: 1st at 18km/h, 2nd at 19km/h, Pedal tilt back at 20km/h) Mileage Around 150km Around 75km Maximum Grade Around 35° Rated Power: DC 74V...
  • Page 9 Dimension & Weight Dimension 49.5*48*59 cm Package Size 55.5*30.5*73 cm Pedal Altitude 180 mm Tire Size 16*3.0 inch Weight 23.9kg 20.68kg EUC Port Charging Port*2; Switch Port*1; Light Sensor Port*1; USB Discharge Port*2 (one port support USB plug and play) Standard Charger*1, User Manual x1, Warranty Accessories...

  • Page 10: Safety

    1.3 Main Functions • 2200W Motor, providing powerful torsion (120N.m), fast & pleasant acceleration. • 4-Layer controller structure design, TO-247 Imported provide guarantee for 2200w motor. • Turbo inverter fan adjust the air flow according to MOS ube’s temperature. • 4.0 Bluetooth module, more stable data transfer. •...
  • Page 11 THROUGHLY AND CAREFULLY TO LIMIT THE RISK OF INJURY. 2.1 Important • Do not make rapid acceleration or deceleration or over inclineforward or lean backwards. • Do not use the EUC if there are any risks of accidental fails. • When there is alarm of over power, over voltage, low battery , please decelerate at once.

  • Page 12: Features

    • Do not ride on wet, slippery surfaces, especially snowy roads. • Any person under 12 is strictly prohibited to use the EUC. • Do not ride in bleak winter conditions. • Riding backwards is dangerous. Try to avoid riding backwardsunless safety guaranteed.
  • Page 13 KingSong APP(Android) KingSong APP(IOS) 3.4 Riding Mode Riding Mode refers to the torque during start-off and braking. Expert Mode / Riding Mode / Learner Mode decelerate, turning and so on. Riding mode and Expert mode is for rider who want more performance.

  • Page 14: Precautions And Preparation

    4. Precautions and Preparation 4.1 Precautions • Please find a smooth surface to practice on. • Warm up your body and ensure you're wearing safety gear such as helmets, knee pads, elbow pads and wrist guards. • Ensure the wheel's battery level. •...
  • Page 15 not, please ensure the wheel is upright. Quick pressing the power button once the wheel is on will toggle different light modes. 4.2.2 Standing on the unicycle With the pedals unfolded on both sides please stand on it with your preferred foot in the center of the pedal. Balance the wheel under you by keeping the other foot on the other side of the wheel.
  • Page 16 non-preferred foot back onto the wheel. Focus on balancing and not falling left or right. Try to look ahead rather than down! Have your hands out to help you balance! To come to stop simply lean backwards and the wheel will slow down and come to a stop.

  • Page 17: Battery

    5. Battery 5.1 Temperature effect on battery Battery power will vary with the temperature, mileage per charge will have slight difference under different temperature, following table is just for your reference. Temperature(℃) 174Wh using ratio 100% 105% 110% MPU(Km) MPC: Mileage per fully charge 5.2 Charging Forbidden to use chargers not original from factory to avoid accident.

  • Page 18: Warranty

    battery. Meanwhile, the battery can’t be dismantled, in case of changing, please contact us, we will provide you with professional services. Clean the unicycle with wet cloths and detergent, gasoline, solvent or any other chemical reagent are forbidden. Use the inflation tube to inflate the tire. Without the tube, you will not be able to pump air into the wheel.
  • Page 19 etc.). 7.3 After sale service If need after sale service, please kindly contact your local dealer, distributor for assistant.
  • Page 20 Kingsong Intell Co.,LTD Address : BLDG 7, NO 71 XINGHU RD, 8TH INDUSTRY PARK, HONGXING, YUTANG,GUANGMING,SHENZHEN Tel : +86-755-23193477 Fax : +86-755-23193248 E-mail : info@szkingsong.com...

This manual is also suitable for:

Ks-16x
