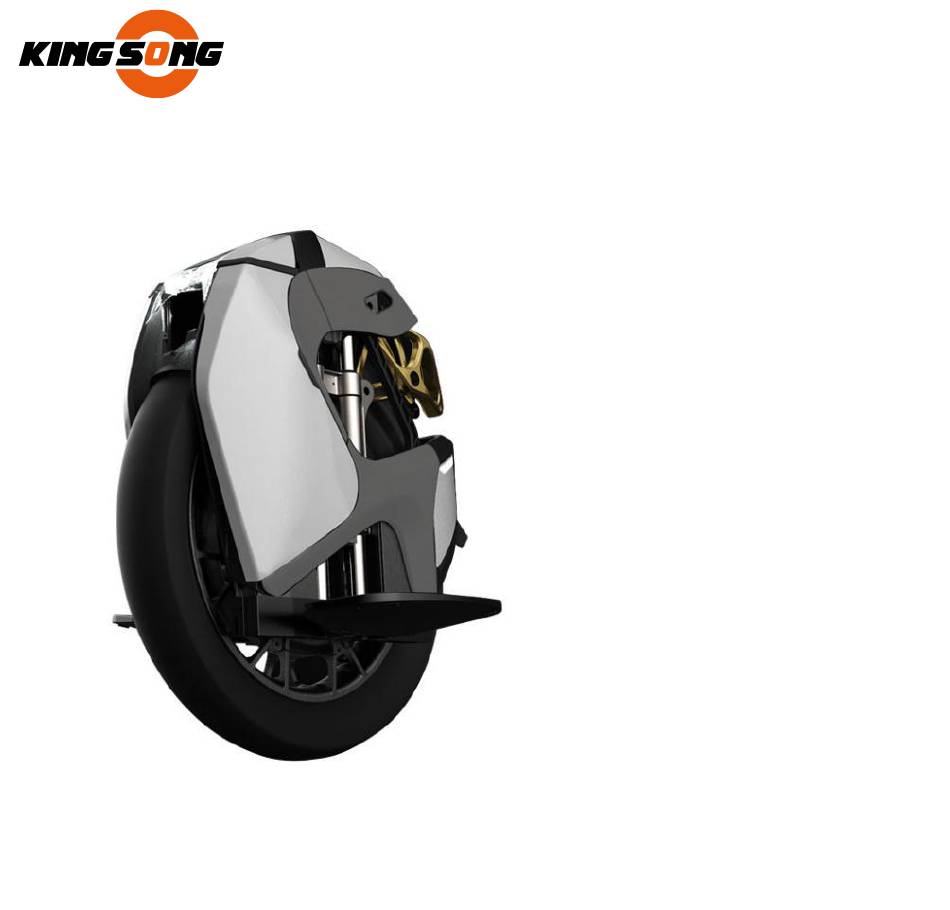

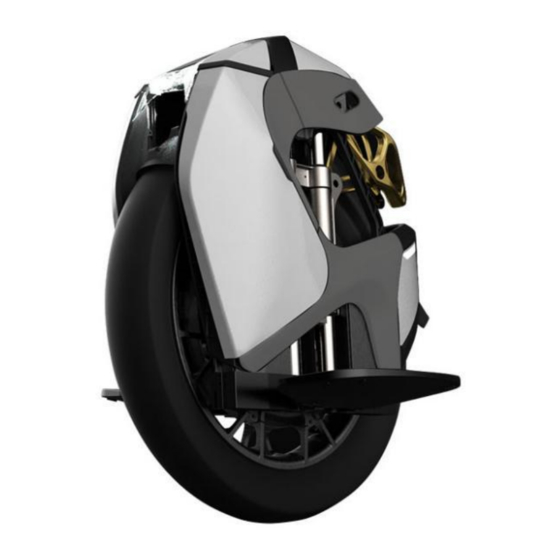

- Page 1 KS-S18 User Manual...
- Page 2 Riding like all outdoor activities comes with it’s risks. You risk seroius danger and injury if you fall, collide or lose of control when riding, please ride with caution and at your own risk. Thanks you for purchasing King Song smart electric unicycle!
-
Page 3: Table Of Contents
Contents 1. Product Details-----------------------------------------------------------01 2. Safety --------------------------------------------------------------------08 3. Features -----------------------------------------------------------10 4.Precautions and Preparation -------------------------------------------11 5. Battery ------------------------------------------------------------------14 6. Care and Maintenance -------------------------------------------------15 7. Warranty----------------------------------------------------------------16... -
Page 4: Product Details
1. Product Detail 1.1 Diagram: KS-S18 1. Headlight 9. Suspension 2. USB Port 10. Suspension Support Frame 3. Charger Port 11. Slide/Lower 4. Power Button 12. Outer Shell 5. Trolley Handle 13. Padding 6. Trolley Handle Button 14. Mud Flap 7. - Page 5 1.2 Specifications Model NO KS-S18 Top Speed Full speed unlocked after 10km. Max speed of 50km/h (Factory alarm settings: Level 1- 18km sound alarm Level 2- 19km sound alarm Level 3- Sound alarm with tiltback). Mileage Around 90~100km Maximum Grade Around 35°...
- Page 6 Rated Power 2200w Max Power 5000w Color White / Rubber Black Dimension & Weight Dimension 657-557mm(H) * 530mm(L) * 200mm(W) Package Size 630 * 295 * 750(mm) Suspension Specification 200-57 Air suspension Suspension Specification Using a variable lever the wheel has dampening travel distance of 100mm, which is transferred to the rear spring suspension with a travel distance of 57mm.
- Page 7 Protective Measures Lift Sensor Lift sensor accurately senses and determines when wheel is lifted off the ground to stop tire rotation. Roll Protection 45° left and right side. ( Motor stalls when over 45° ) Place the machine vertically on the ground will restart automatically, no need to restart manually.
- Page 8 Battery Indicate Led shows battery level when EUC power on at rest Hardware Features Main board he motherboard is designed with a 4 layer structure, allowing for better stability performance. 12 large individual TO-247 imported MOS to sufficiently support the 2200W motor. MOS is attached to the aluminum body frame of the wheel for better heat dissipation.
- Page 9 Suspension System Unique X shaped suspension system. Racing level suspension provides the ultimate support and shock absorption Package Standard Accessories 1x Charger, 1x Manual, 1x Pump, 1x Warranty card, 1x QC certificate 1.3 Features 1.3.1 Sports Bike inspired design. Aerodynamics with air intake system.
- Page 10 d. Rotary switch for sensitivity adjustment. e. Different pressurization can be adjusted to according to rider weight. 1.3.3 Padding designed in cooperation with Kujirolls. 1.3.4 User Experience focused ergonomic design to connect wheel with rider. 1.3.5 12 MOS design connected to aluminum body frame for fast heat dissipation without the need of fan.
-
Page 11: Safety
2. Safety As an outdoor sport and auxiliary transport device, serious injury may occur any time during riding. PLEASE BE CAUTIOUS ALL THE TIME, LEARN AND PRACTISE STEP BY SETP BEFORE IT REGULARLY. READ THE INSTRUCTIONS THROUGHLY AND CAREFULLY TO LIMIT THE RISK OF INJURY. - Page 12 • Please check the device before ever ride to make sure no parts are loose or damaged. • When there are crowded pedestrians, please slow down to match their walking speed. • When carry the device, please make sure the power is off. •...
-
Page 13: Features
3. Features 3.1 Integrated trolley bar 3.2 Front illuminating light & Rear Brake light 3.3 APP • For Android apk: Please access to our official website: www.kingsong.com, android apk can be downloaded. • For IOS app: Please download from apple store, ‘kingsong’ is the exact one. -
Page 14: Precautions And Preparation
turning and so on. Riding mode and Expert mode is for rider who want more performance. Experient mode can satisfy the group who wants to perform skills like jumping, also it can avoid pedal tilt back when climbing up or down steep hills. 3.5 Self-inspection and horizontal calibration Firstly, switch on the EUC and keep it standing still on the ground until it finds it’s balance. - Page 15 of the wheel. • Have a friend assist you if required. • Please do not accelerate or decelerate rapidly, please also try to avoid over leaning or leaning too fast to prevent rider injury. • Padding up the wheel during the learning process is highly recommended to ensure minimal scrapes on the exterior of the wheel.
- Page 16 5 o’ clock, and if you are right footed please keep the other foot at around 7 o’ clock. If you are having a difficult time balancing the wheel under you make sure you find a centre point of balance between these three points: a) bottom of the tire b)where the top of you leg touches the wheel c) your foot.
-
Page 17: Battery
4.2.4 Turning When turning, lean your body gently to the side in which you want to go and straighten up when you want to go straight again! As you become more experienced at riding you will find other ways to turn such as; letting the wheel fall just side to side, just turning the lower part of your body, leaning your entire body. -
Page 18: Care And Maintenance
The device has a built-in lithium battery, no extra battery installation is required, just charge the device when it indicates low battery. 6. Care and Maintenance 6.1 Conservation Don’t place the unicycle in a wet condition. If left unused, recharge the battery at least once a month to avoid the battery exhausted and maintain longevity of the battery. -
Page 19: Warranty
7. Warranty 7.1 Limited Warranty Manufacturer Kingsong Intell Co., LTD warrants the EUC by following limits. Motor, Controller board for 365 days from the item departure from factory. Battery package for 183 days from the item departure from factory. Warranty is valid only within a total mileage of 2000km. 7.2 Limited Warranty Above limited warranty DOES not include damage or lose not caused item’s defectives (i.e. - Page 20 Kingsong Intell Co.,LTD Address : BLDG 7, NO 71 XINGHU RD, 8TH INDUSTRY PARK, HONGXING, YUTANG,GUANGMING,SHENZHEN Tel : +86-755-23193478 Fax : +86-755-23193477 E-mail : info@szkingsong.com...
