King Song KS-16S User Manual

Hide thumbs Also See for KS-16S:

Advertisement

Quick Links

KS-16S
User
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the KS-16S and is the answer not in the manual?

Questions and answers

Related Manuals for King Song KS-16S

Summary of Contents for King Song KS-16S

  • Page 1 KS-16S User Manual...
  • Page 3 Riding like all outdoor activities comes with it’s risks. You risk serious danger and injury if you fall, collide or lose of control when riding, please ride with caution and at your own risk. Thanks you for purchasing King Song smart electric unicycle!

  • Page 4: Table Of Contents

    Contents 1. Product Details--------------------------------------------------------01 2. Safety--------------------------------------------------------------------04 3. Features-----------------------------------------------------------------06 4. Precautions and Preparation---------------------------------------07 5. Battery-------------------------------------------------------------------10 6. Maintenance-----------------------------------------------------------12 7. Warranty----------------------------------------------------------------13...

  • Page 5: Product Details

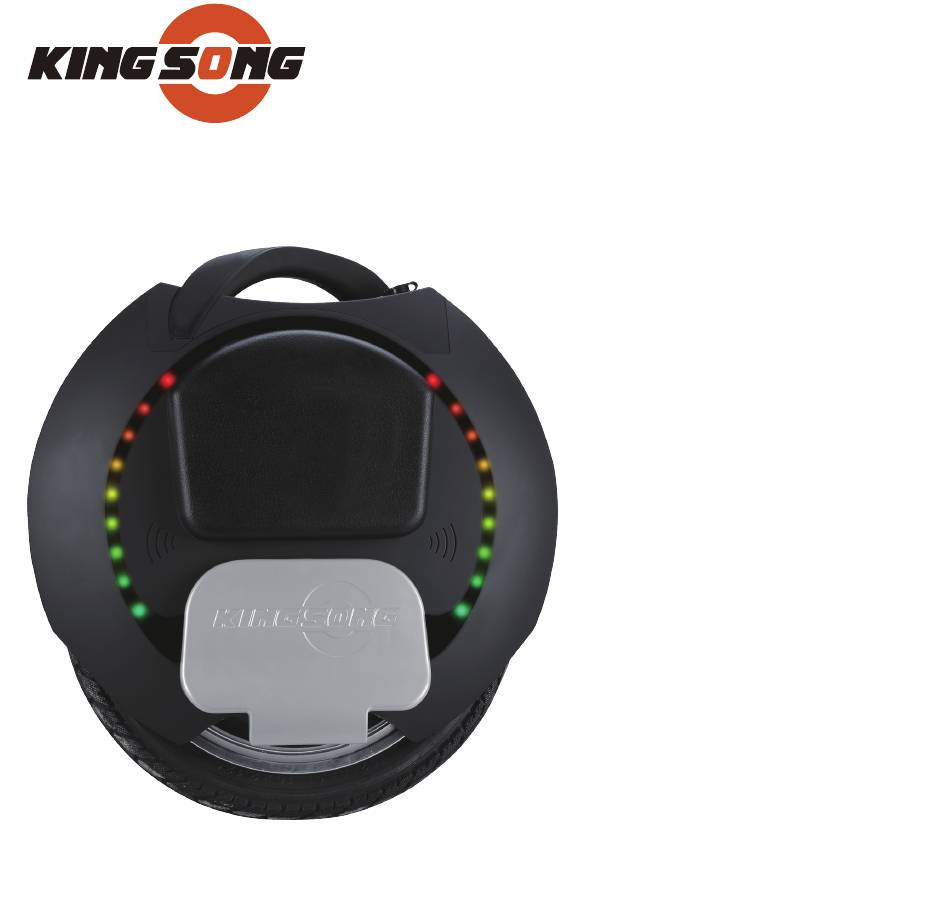

    1. Product Details 1.1 Diagram: KS-16S 1. Trolley Bar 8. Speaker 2. Auxiliary Button 9. Pedal 3. Charging Port 10. illuminating Light 4. Power ON/OFF Button 11. Tire 5. Light Sensor 6. RGB Light 7. Pad...
  • Page 6 1.2 Specifications Model No Rated Speed 12.4 mph Top Speed 21.7 mph Mileage ≈49.7 miles Climbing Angle ≤ 30° Operating -10℃/+45℃ Temperature Max Load 265 lbs Charger Voltage Input AC 80~240V, Output DC 67.2V 2A Charging Time ≈7h Rated Power 1200W Product Size 18.2 x 7.7 x 19.9 inches...
  • Page 7 Net Weight 38.4 lbs Standard 1x Charger, 1x Manual, 1x Warranty card, Accessory 1x QC certificate 1.3 Main Functions • Light sensor: Detecting light intensity, Lights on when it is dark, otherwise, it keeps off. • BT/Speaker: BT makes us can access to riding information in app like mileage etc;...

  • Page 8: Safety

    voice prompt to alert rider: over-voltage, over-power, low battery etc. Voice prompt can be shut off through app, but buzzer beeps can’t be. • Tilt-back protection: When over-speed, low-battery, high temperature, the pedal will title back to prevent further acceleration. 2.
  • Page 9 • Riding backwards is dangerous. Try to avoid riding backwards unless safety guaranteed. • Don’t jump with the EUC. Other sudden unpredictable risks may occur during use, please ride with care. King Song will not be responsible for any injuries caused by improper operations of the device.

  • Page 10: Features

    3. Features 3.1 Integrated trolley bar 3.2 Front illuminating light & Rear Brake light 3.3 APP • For Android app: Please access to our official website: www.kingsongpro.com, android app can be downloaded. • For IOS app: Please download from apple store, ‘kingsong’...

  • Page 11: Precautions And Preparation

    Riding mode and Expert mode is for rider who want more performance. Experiment mode can satisfy the group who wants to perform skills like jumping, also it can avoid pedal tilt back when climbing up or down steep hills. 3.5 Self-inspection and horizontal calibration Firstly, switch on the EUC and keep it standing still on the ground until it finds it’s balance.
  • Page 12 • Have a friend assist you if required. • Please do not accelerate or decelerate rapidly, please also try to avoid over leaning or leaning too fast to prevent rider injury. • Padding up the wheel during the learning process is highly recommended to ensure minimal scrapes on the exterior of the wheel.
  • Page 13 foot at around 5 o’clock, and if you are right footed please keep the other foot at around 7 o’ clock. If you are having a difficult time balancing the wheel under you make sure you find a centre point of balance between these three points: a) bottom of the tire b)where the top of you leg touches the wheel c) your foot.

  • Page 14: Battery

    Note: The harder you lean forwards or backwards will dictate the speed in which the wheel accelerates and decelerates. 4.2.4 Turning When turning, lean your body gently to the side in which you want to go and straighten up when you want to go straight again! As you become more experienced at riding you will find other ways to turn such as;...
  • Page 15 disposal. • To extend the battery's life, charge it frequently and avoid draining the battery completely. At 30°C the battery range and performance is at its best; whereas at temperatures below 0°C range and performance are decreased. Typically, at -20°C range can be half that of the same battery at room temperature.

  • Page 16: Maintenance

    6. Maintenance 6.1 Cleaning WARNING • Make sure the 16S is powered OFF, the charge cable is unplugged, and the silicone cap on the charge port is tightly sealed before cleaning; otherwise you may expose yourself to electric shock or damage the electronic components. Do not wash your 16S with a power washer or high pressure hose.

  • Page 17: Warranty

    cold) may affect the vehicle’s appearance, battery life, and tires. 7. Warranty For warranty policy, please consult with the point of purchaseor email to the manufacturer’s service team: support@kingsongpro.com Again, we appreciate your purchasing of Kingsong products.
  • Page 20 Kingsong Intell Co.,LTD Address : BLDG 7, NO 71 XINGHU RD, 8TH INDUSTRY PARK, HONGXING, YUTANG,GUANGMING,SHENZHEN Tel : +86-17727870475 E-mail : support@kingsongpro.com...
