N05L00004.eps N05DBDCKA0.eps N05BBAABA26.eps N05SADDDA21.eps
N05CBABAB5.eps
W241582401.eps S241582801.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
WWTR1802KW0
Series
R134a System
Color
white
Volts
115
Wiring Diagram
241582401
Owner's Guide
241997501
Market
North America
Energy Guide
241613796
Service Data Sheet
241588203
Installation Instructions 240568303
Publication No.
5995531794
09/01/20
(EN/SERVICE/DCS)
390
White-Westinghouse
TOP-MOUNT
REFRIGERATOR
Model No.
WWTR1802K
©
Copyright
2009 Electrolux Home Products, Inc.
All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Westinghouse WWTR1802KW - 18 Cubic Foot Top-Freezer Refrigerator
Summary of Contents for Westinghouse WWTR1802KW - 18 Cubic Foot Top-Freezer Refrigerator
- Page 1 White-Westinghouse Product No. WWTR1802KW0 Series R134a System Color white Volts Wiring Diagram 241582401 Owner's Guide 241997501 Market North America Energy Guide 241613796 Service Data Sheet 241588203 Installation Instructions 240568303 TOP-MOUNT N05L00004.eps N05DBDCKA0.eps N05BBAABA26.eps N05SADDDA21.eps REFRIGERATOR N05CBABAB5.eps W241582401.eps S241582801.eps Electrolux Major Appliances Model No.
- Page 2 Publication No: 5995531794 WWTR1802KW0 DOOR N05DBDCKA0 01/09...
- Page 3 WWTR1802KW0 Publication No: 5995531794 DOOR POS. NO PART NO. DESCRIPTION 241872503 Gasket-frzr door, white, magnetic 241872506 Gasket-refr door, white, magnetic 240534901 Rack-door 240534701 Rack-door, 4B 240337712 Door-dairy 240534801 Rack-door 240381301 Plug-button, white, hinge brg hole, (2) 240412501 Door, frzr, white, complete assy 240415701 Nameplate 240312403...
- Page 4 Publication No: 5995531794 WWTR1802KW0 CABINET 01/09...
- Page 5 WWTR1802KW0 Publication No: 5995531794 CABINET POS. NO PART NO. DESCRIPTION 241652301 Cover-fan 240367001 Knob-damper control 5303001028 Nut, push-on 241523701 Damper-fan cover 5308000010 Fan Blade, red, evaporator fan 5300157666 Bushing-motor mtg, (2) 5303292396 Bracket-motor mtg, front 241652214 Cover-evap coil 240568601 Seal-coil cover 5303208309 Plug-hole, factory test 241557601...
- Page 6 Publication No: 5995531794 WWTR1802KW0 SHELVES N05SADDDA21 01/09...
- Page 7 WWTR1802KW0 Publication No: 5995531794 SHELVES POS. NO PART NO. DESCRIPTION 5303282284 Shelf-freezer, "table type" 241542001 Diffuser, air, top 240362601 Diffuser, air, bottom 14 # 241554901 Switch-light/lamp 241555401 Light Bulb 241559801 Socket-light 240352702 Control Box 240568607 Seal 17*# 240388701 Wiring Harness, control box 240360801 Knob, temp control 21 #...
- Page 8 Publication No: 5995531794 WWTR1802KW0 SYSTEM N05CBABAB5 01/09...
- Page 9 WWTR1802KW0 Publication No: 5995531794 SYSTEM POS. NO PART NO. DESCRIPTION 241861903 Condenser, static 5303208866 Spacer, condenser tube, black 5304406721 Spacer-cond tube, round, 5/8 OD x .81"lg 241658801 Bracket, condenser mtg 218944002 Drier-filter, R134a System 241949801 Harness-wiring, machine compt 6* # 240388701 Wiring Harness, control box 14 #...
-
Page 10: Wiring Schematic
Publication No: 5995531794 WWTR1802KW0 WIRING SCHEMATIC 01/09... -
Page 11: Wiring Diagram
WWTR1802KW0 Publication No: 5995531794 WIRING DIAGRAM 01/09 # Functional Parts * Non-Illustrated Parts...
Need help?
Do you have a question about the WWTR1802KW - 18 Cubic Foot Top-Freezer Refrigerator and is the answer not in the manual?
Questions and answers

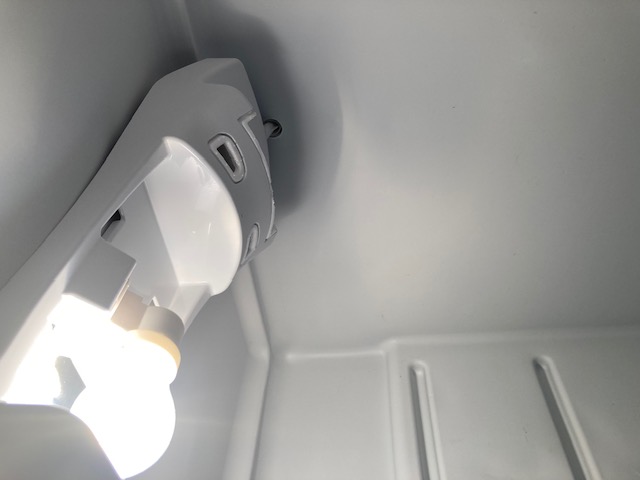

some water is coming from the exit ( part 17 ) of fresh air that is cooling the fridge , what can I do ?
