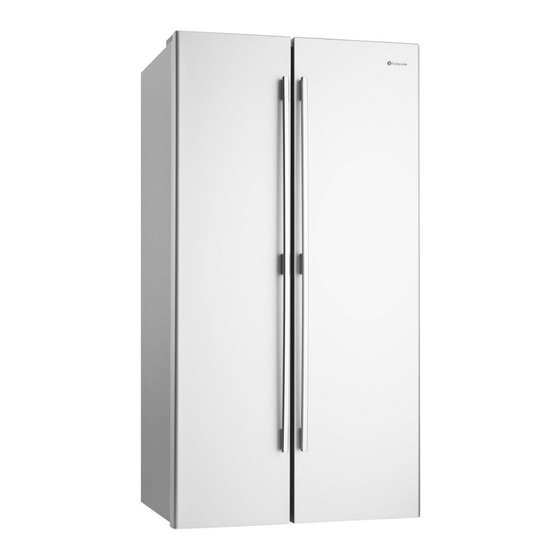

Westinghouse WSE7000S, WSE7000P, WSE7000W,WSE6970S, WSE6970P, WSE6970W,WSE6070S User Manual
Side by side refrigeration
Hide thumbs
Also See for WSE7000S, WSE7000P, WSE7000W,WSE6970S, WSE6970P, WSE6970W,WSE6070S:
- User manual (28 pages) ,
- User manual (15 pages)
Related Manuals for Westinghouse WSE7000S, WSE7000P, WSE7000W,WSE6970S, WSE6970P, WSE6970W,WSE6070S
Summary of Contents for Westinghouse WSE7000S, WSE7000P, WSE7000W,WSE6970S, WSE6970P, WSE6970W,WSE6070S
- Page 1 USER MANUAL Side by Side Refrigeration WSE7000S, WSE7000P, WSE7000W, WSE6970S, WSE6970P, WSE6970W, WSE6070S, WSE6070W, WSE6100S, WSE6100P, WSE6100W ACCESSORIES...
-
Page 2: Table Of Contents
coNGRAtULAtioNS coNtENtS Dear customer, Important safety instructions . . . . . . . . . . . . . . . . . . . . . 3 Congratulations and thank you for choosing our refrigerator. -
Page 3: Important Safety Instructions
iMpoRtANt SAfEtY iNStRUctioNS WARNING The appliance must be plugged into its own Please read the user manual carefully and store in a dedicated 220 -240V, 50Hz AC electrical outlet. handy place for later reference. Pass the user manual Ensure that the electric outlet is properly earthed to on to possible new owners of the refrigerator. -
Page 4: Large Side By Side With Standard Features
LARGE SidE bY SidE witH StANdARd fEAtURES Freezer light Telescopic freezer bins Deli bins Twist ice & serve Fridge & freezer temperature 15 Adjustable glass shelves control Ice cube storage bin Humidity controls 10 Light lens Freezer door bins Telescopic crisper bins Dairy compartment Wine rack Bottle bins Storesafe™... -
Page 5: Compact Side By Side With Ice & Water Features
coMpAct SidE bY SidE witH icE & wAtER fEAtURES Ice & Water Door Dispenser Ice cream shelf Roll out baskets 13 Adjustable glass shelves Ice maker unit Light lens 14 Adjustable door bins Lighting Dairy compartment Humidity controls Wine rack Storesafe™ bin (lockable) Crisper bins Sensors Deli bin Bottle bins... -
Page 6: General Installation
GENERAL iNStALLAtioN When correctly installed, your refrigerator should: iNStALLAtioN • H ave adequate clearance to the back, sides and The refrigerator should arrive with the front rollers wound top for air circulation down. We recommend that the appliance be tilted • Be aligned to the surrounding cupboards backwards by about 10 to 15 millimetres, this will allow • H ave doors that will self close from a partially the doors to self close providing a consistent door seal. -
Page 7: Adjusting Door Alignment
AdjUStiNG dooR ALiGNMENt aligned to cupboard – Each door is independently adjustable in the vertical even gap direction by turning the adjustable bolts under the hinges Top of refrigerator using the spanner provided. is level – horizontal Adjust front rollers for unevenness of floor. e.g. adjust this roller down. Large plastic roller nut Front roller Adjusting bolt Packing may be required underneath the rear roller to ensure stability. -
Page 8: Internal Packaging
GENERAL iNStALLAtioN 3. If the refrigerator is required to be pulled forward for iNtERNAL pAcKAGiNG 1. Please remove all internal packaging material before use. cleaning, the water pipe may need to be removed Any glue or tape residue or the like should be removed from the tap. -
Page 9: Initial Start Up
iNitiAL StARt-Up REfRiGERAtoR/fREEzER opERAtioN tEMpERAtURE SENSoRS It is normal for the rear, sides and centre mullion of the Avoid loading food against your freezer temperature sensor. appliance to feel warm. These areas are warm because Doing so may adversely affect freezer temperatures. If warm the appliance transfers heat from the food placed inside food is inadvertently loaded against the sensor, it may also to the outside air. -
Page 10: Using Your Refrigerator
USiNG YoUR REfRiGERAtoR ELEctRoNic diSpLAY pANEL turning the clock on and off – wSE6100 The internal electronic display panel is located on the inside Press the clock button to turn the clock display on or off. front right of the fridge liner in side by sides and at the top NOTE: The clock still works while the display is off. -
Page 11: Controlling The Temperature
coNtRoLLiNG tHE tEMpERAtURE QUicK fREEzE fUNctioN We recommend that when you start your refrigerator for Use the quick freeze function when you add a large the first time, the temperature for the refrigerator is set to amount of food to the freezer compartment. This freezes 3°C and the freezer to -18°C. -
Page 12: Door Alarm
USiNG YoUR REfRiGERAtoR dooR ALARM cHiLd LocK If the refrigerator door is left open for longer than 2 minutes To activate the child lock on ice & water models, press and a buzzer will sound and the icon above the alarm reset hold the lamp on/off and cubed/crushed buttons together. -
Page 13: Other Electronic Features
food coMpARtMENt fEAtURES CAUTION door storage bins Both the refrigerator and freezer have door storage bins. Eco mode is designed to operate with minimum door You can adjust the door bins to meet different storage needs. opening (e.g. if used as a long term storage fridge). All the door bins are completely removable for cleaning. If turned on manually, it won’t switch off automatically and If you want to remove or adjust a bin in all freezers and frequent door opening in eco mode could lead to food... - Page 14 USiNG YoUR REfRiGERAtoR deli compartment telescopic freezer bins and crispers The deli compartment is an ideal place to keep deli items, For 690/700L side by sides with telescopic freezer bins such as cold meats. Additional cold air is directed into the and crispers you can replace the draw as follows: deli compartment, keeping the contents fresher for longer.
-
Page 15: Ice & Water Features
To operate the water dispenser, press a glass against the dispensing paddle. To stop dispensing water, pull the glass CAUTION away from the dispensing paddle. A drip tray located at Never close the door while the telescopic slides are extended. the base of the dispenser (see diagram above) will catch It may damage the slide and/or the refrigerator or cause the small spills and allow them to evaporate. -
Page 16: How The Ice Dispenser Works
Normal operation — for cool water, add ice. TIPS & INFORMATION To provide the convenience of filtered water in the same location as the ice dispenser, it is necessary to route the • I ce cubes stored too long may develop an odd flavour. Remove the ice container and discard the ice cubes. tubes from the refrigerator compartment. -
Page 17: Cleaning The Ice Dispenser
cLEANiNG tHE icE diSpENSER Remove and empty the ice storage bin if: Clean the dispenser and ice container at regular intervals, 1. An extended power failure (one hour or longer) causes particularly before you take a vacation or move, also clean ice cubes in the ice storage bin to melt and freeze the dispenser if it sticks. -
Page 18: Ice & Water Installation
icE ANd wAtER iNStALLAtioN bEfoRE bEGiNNiNG iNStALLAtioN pLEASE REAd: tHE ExtERNAL wAtER fiLtER Kit An external water filter and connection kit has been Water Supply and Plumbing supplied for use with your Ice & Water refrigerator. A drinkable water supply to suit a ½” tap fitting is required The external filter design allows more space within the adjacent to the refrigerator. It is recommended that a refrigerator and provides double the life of previous filters... -
Page 19: Installing Your Ice And Water Filter
Step 4 iNStALLiNG YoUR icE ANd wAtER fiLtER Install the brackets within 1 metre from the water supply tap, in a vertical orientation where possible, using the screws Never install the water filter in an area of direct sunlight. provided. Check for water leaks at all water connection points in the first 2 to 3 hours after installation, and correct it in case of any water leak. - Page 20 Step 12 iNStALLiNG YoUR icE ANd wAtER fiLtER Turn on water and check all joints and tubes for leaks. Step 8 Push shorter tube into tap fitting past insertion mark. Step 13 Step 9 Reconnect the power. Push other end into filter INLET. water flow direction Step 14 Move the refrigerator back into place being careful not to kink or split the tubing. Step10 Connect remaining tube length to filter OUTLET.
- Page 21 iNStALLiNG YoUR icE ANd wAtER fiLtER tipS ANd USEfUL iNfoRMAtioN Ensure that taps are turned off when replacing and fitting Step 16 filters. Remember to turn the taps back on when filter fitting Remove ice cream shelf (in freezer) to access and switch on is complete.
-
Page 22: Changing The Water Filter
cHANGiNG tHE wAtER fiLtER Note: If the water is slow to shut off or the dispenser is dripping, tHE ExtERNAL wAtER fiLtER Kit An external water filter and connection kit has been supplied this indicates that there may still be air in the lines. Either purge for use with your Ice &... -
Page 23: Cleaning Your Refrigerator
cHANGiNG tHE LiGHt bULb cLEANiNG YoUR REfRiGERAtoR fREEzER LiGHt StANdARd cLEANiNG tHE ExtERioR 1. Switch off the power at the power point and remove the cord by pulling the plug. WARNING 2. Carefully unclip the light cover by pulling the light cover tab at the rear, towards you. -
Page 24: Cleaning The Interior
cLEANiNG YoUR REfRiGERAtoR HELpfUL HiNtS drip tray ENERGY coNSUMptioN (ELEctRicitY coStS) The following guide will help you reduce the running cost Water may accumulate in the sump located under the drip tray. If this occurs the sump can be sponged out to prevent of your new refrigerator. -
Page 25: Safety
HELpfUL HiNtS SAfEtY HELpfUL HiNtS foR StoRiNG food It is important to use your appliance safely. This means you ALwAYS do tHiS need to supervise young children and infirm persons when Buy the freshest, best quality food and put it in the they use it. -
Page 26: Troubleshooting
tRoUbLESHootiNG If you think something may be wrong with your refrigerator, you can carry out some easy checks before calling for service. You may locate the problem, sparing yourself from inconvenience and saving time and money. pRobLEM SoLUtioN pRobLEM SoLUtioN When your •... -
Page 27: Ice + Water Troubleshooting
icE + wAtER tRoUbLESHootiNG pRobLEM poSSibLE cAUSES SoLUtioN AUtoMAtic icE-MAKER The ice maker • I ce maker is in the OFF position • P ut switch in the ON position is not making • W ater tap is turned off • T urn on the water tap any ice • T he freezer is not cold enough • See the Troubleshooting section: ‘If the temperature in the refrigerator is too warm’ on page10 • The water dispenser may not be dispensing water • If it isn’t, the ice & water filter cartridge may be clogged or restricted by foreign material, and will... -
Page 28: Notes
NotES NOTES... - Page 29 NotES NOTES...
- Page 30 NotES NOTES...
-
Page 31: Warranty
Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: REFRIGERATION Electrolux authorised representative, the Appliance is transported at the This document sets out the terms and conditions of the product owner’s cost and risk while in transit to and from Electrolux or its ASC. warranties for Electrolux Appliances. - Page 32 SERVicE Top Service encompasses the after sales service provided by The Electrolux Group to consumers including delivery, home service and spare parts. westinghouse. we are part of the Electrolux family. Share more of our thinking at www.electrolux.com © 2011 Electrolux Home Products Pty Ltd ABN 51 004 762 341 Print code: WMANREFRIGSXS_Jul11...
