Landscape Rakes
LR1660, LR1672, LR1684 & LR1696, LR2684 & LR2696
35091
Table of Contents

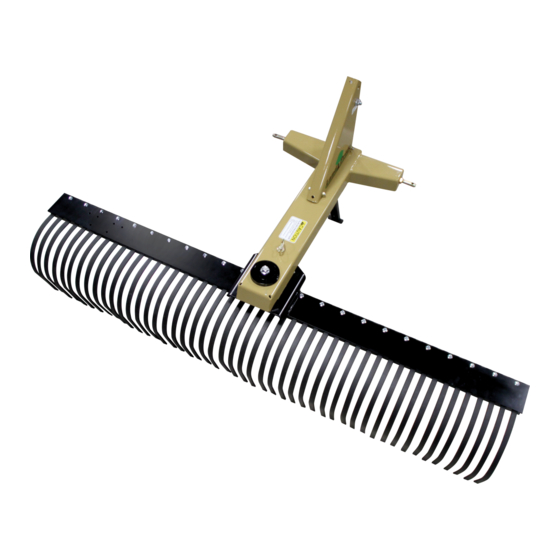

LR26 Series Landscape Rake
LR16 Series Landscape Rake
Operator's Manual
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French or
Spanish Language, please see your Land Pride dealer.
33835
302-305M
Printed 10/6/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LR2684 and is the answer not in the manual?

Questions and answers

Related Manuals for Land Pride LR2684

Summary of Contents for Land Pride LR2684

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French or Spanish Language, please see your Land Pride dealer. Printed 10/6/17...
  • Page 2 Machine Identification Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new manual. If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that were originally ordered, the weights and measurements are no longer accurate for your machine.
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Parts Manual for this equipment. for Land Pride products. Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture.

  • Page 5: Important Safety Information

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident.
  • Page 6  Lower implement to the ground and  Replace parts on this implement implement. follow all shutdown procedures with genuine Land Pride parts only.  Attach the chain to the tractor before leaving the operator’s seat to Do not alter this implement in a way drawbar support or other specified perform maintenance.
  • Page 7 Use Seat Belt and ROPS signals are recommended Keep Riders Off whenever driving on public roads. Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  Never carry riders on tractor or structures (ROPS) and seat belt implement.
  • Page 8 Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
  • Page 9 Table of Contents Important Safety Information 838-615C Models LR1696 & LR2696 Only 2" x 9" Amber Reflector 1-Place: Left front side of rake 33890 818-335C 3/4" x 4 5/16" Red Reflector on gauge wheel arms (2-Places: Right and left gauge wheel arms) 33891 11/27/18 LR1660, LR1672, LR1684 &...
  • Page 10 Registration at the time of purchase. This information is The LR16 Series rakes are offered in 5, 6, 7, & 8 ft. widths necessary to provide you with quality customer service. for mounting to tractors in the 20 to 40 hp range and LR26 The parts on your Landscape Rake have been specially Series in 7 &...
  • Page 11 Table of Contents Introduction 33836 LR16 Series Serial Number Plate Location Figure 1 35091 LR26 Series Serial Number Plate Location Figure 2 11/27/18 LR1660, LR1672, LR1684 & LR1696, LR2684 & LR2696 Landscape Rakes 302-305M...

  • Page 12: Section 1: Assembly & Set-Up

    Tractor horsepower and hitch category should be within the range noted below. Tractors outside the horsepower range must not be used. LR16 Series Horsepower Rating ....20-40 hp LR26 Series Horsepower Rating ....25-60 hp 3-Point Hitch Category ........Cat. 1 Hydraulic Outlets for Hydraulic Angling Kit ...1 Duplex...
  • Page 13 Table of Contents Section 1: Assembly & Set-up 13. Some rake teeth may require repositioning due to crating. Loosen 3/8" hex flange locknuts (#9B) and adjust/align rake teeth to proper position. Re-tighten bolts and locknuts (#9A & #9B) to the correct torque. LR26 Landscape Rake Assembly Refer to Figure 1-2: DANGER...

  • Page 14: Check 3-Point Hook-Up Procedure. Be Sure All Pins Have Been Installed And Are Secured

    Check Equipment Clearances Carefully raise and lower implement to ensure NOTE: Land Pride’s Quick Hitch can be attached to the tractor to provide quick and easy 3-point hook- drawbar, tires, and other equipment on the tractor do up and detachment.

  • Page 15: Section 2: Accessory Equipment Set-Up

    Pivot bushing (#24), also shown in Figure 1-1 on page 8, is supplied with LR16 Series rake only. 33839 Hydraulic Rake Angling Accessory (LR16 Series Shown) Figure 2-1 11/27/18 LR1660, LR1672, LR1684 & LR1696, LR2684 & LR2696 Landscape Rakes 302-305M...
  • Page 16 Table of Contents Section 2: Accessory Equipment Set-up 12. Attach rod end of hydraulic cylinder (#14) to rear cylinder mount (#5) with clevis pin (#2) and hairpin clip (#1). Dual Gauge Wheel Installation Refer to Figure 2-2: NOTE: The gauge wheels are set-in from the end about 1 1/2"...
  • Page 17 Table of Contents Section 2: Accessory Equipment Set-up Grader Blade Set-up without Gauge Wheels Refer to Figure 2-4: NOTE: The gauge wheels are set-in from the end about 1 1/2" on the 60" & 72" rakes and about 7 1/2" from the end on the 84"...

  • Page 18: Table Of Contents

    Table of Contents Section 3: Operating Instructions Section 3: Operating Instructions Operating Checklist WARNING Hazard control and accident prevention are dependent To prevent serious injury or death: upon the awareness, concern, prudence, and proper • Never make contact with underground utilities such as training involved in the operation, transport, storage, and electrical power lines, gas lines, phone lines, etc.
  • Page 19 Replace damaged and/or worn Make sure implement does not block tractor’s Slow Moving • hoses with genuine Land Pride parts. Vehicle (SMV) sign when transporting on a public road. If operators in vehicles approaching from the back cannot 4. Check clearances between rake and tractor throughout the range of all rake motions.
  • Page 20 Operating Instructions By now you should have thoroughly read your Operator’s WARNING Manual and properly installed your Land Pride To prevent serious injury or death: Landscape Rake to your tractor. Before you begin raking, you should visually survey the work site to make sure it is When using the park stand, make sure it is fully down with wire safe and free of foreign obstacles.

  • Page 21: Section 4: Adjustments

    Table of Contents Section 4: Adjustments Section 4: Adjustments Safety Alerts 33843 WARNING To prevent serious injury or death: • Avoid injury from a falling rake. Always check to make sure all hardware is secured before adjusting the rake. • Do not come in contact with turntables or stick objects into the turntable holes while adjusting the unit’s angle.
  • Page 22 Table of Contents Section 4: Adjustments Gauge Wheels (Accessory) Refer to Figure 4-3: Removing spacers (#4 or #5) from beneath support arms (#2) will allow the rake to penetrate deeper into the soil and adding spacers will decrease the depth the rake can penetrate into the soil.

  • Page 23: Section 5: Maintenance & Lubrication

    3. Repaint parts where paint is worn or scratched to adversely affect its performance. prevent rust. Ask your Land Pride dealer for aerosol touch-up paint. They are also available in touch-up bottles with brush, quarts, and gallon sizes by adding DANGER TU, QT, or GL to the end of the aerosol part number.
  • Page 24 Table of Contents Section 5: Maintenance & Lubrication Lubrication Lubrication Multi-purpose Multi-purpose Multi-purpose Intervals in hours at which Legend spray lube grease lube oil lube lubrication is required Hours (Accessory) Gauge Wheel Yoke Spindle Grease gauge wheel zerk every 25 hours. Type of Lubrication: Multi-Purpose Quantity = Until grease begins to emerge.
  • Page 25 LR16 Series Rear Blade Kit Bundles Any of the below Rear Blade Kit Bundles will fit the Main Frame of all LR16 Series Landscape Rakes that have a hex drive pivot pin. A 96" Rear Blade Attachment is not available for the LR16 Series Landscape Rakes 301-369S .
  • Page 26 96" 84" 96" Approximate Weight (lbs.) Number of Teeth Horsepower Rating 20-40 25-60 Hitch Category Cat. l Fits Land Pride Quick Hitch Pivot Tube Diameter 3 1/2" Rake Height 16 1/2" Park Stand Standard Individual Replaceable Teeth Standard Teeth Size 5/16"...
  • Page 27 Fits many tractors with a Cat. l 3-Point hitch. LR26 Series: 25-60 Tractor hp Range Quick Hitch Adaptable Fits Land Pride Quick Hitch for a quick and easy one person hook-up. Retractable Park Stand Keeps frame off the ground and makes hook-up easier.

  • Page 28: Check Rake Initially And Periodically For Loose Bolts & Pins, See Torque Values Chart

    Table of Contents Section 9: Torque Values Chart Section 9: Torque Values Chart Torque Values Chart for Common Bolt Sizes Bolt Head Identification Bolt Head Identification 10.9 Bolt Size Bolt Size (inches) Grade 2 Grade 5 Grade 8 (Metric) Class 5.8 Class 8.8 Class 10.9 in-tpi...
  • Page 29 This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 30 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
