Rotary Cutters
RCR2596, RCR2510, and RCRM2510
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!

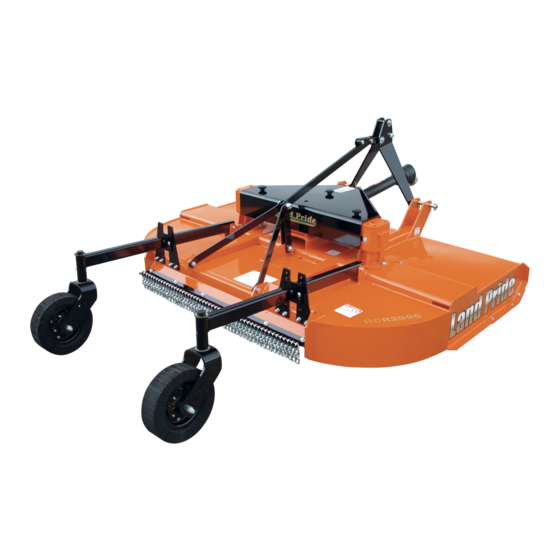

Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
22288
312-753M
Operator's Manual
Printed 7/29/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCR2596 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Land Pride RCR2596

Summary of Contents for Land Pride RCR2596

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 7/29/20...

  • Page 2: Machine Identification

    Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 5: Important Safety Information

     Important Safety Information Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look For The Safety Alert Symbol Careful operation is you best The SAFETY ALERT SYMBOL indicates there is a insurance against an accident.

  • Page 6: Transport Safely

     Replace parts on this implement correct tools and equipment. follow all shutdown procedures with genuine Land Pride parts only.  Always properly match the wheel before leaving the operator’s seat to Do not alter this implement in a way size to the properly sized tire.

  • Page 7: Protective Equipment

    Use Safety Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  Slow moving tractors, and tractor  Never carry riders or use structures (ROPS) and seat belt self-propelled equipment can to lift or transport individuals.
  • Page 8 Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Avoid crystalline Silica  Be aware of and follow OSHA  If possible, change into disposable (or other local, State, or Federal) or washable work clothes at the (quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 7/29/20...

  • Page 10: Safety Labels

    Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
  • Page 11 838-615C 2" x 9" Amber Reflector 1 place: Front left side of deck only 22288 838-614C 2" x 9" Red Reflector 2 places: Rear left side and rear right side of deck RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 12 Table of Contents Important Safety Information 22288 818-552C Danger: Rotating Driveline 22297 818-543C Danger: Guard Missing 33016 818-681C Notice: 20 MPH Maximum Travel Speed Located on Pull-Type Hitch and All Gauge Wheels RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 13 Table of Contents Important Safety Information 22288 818-564C Danger: Rotating Blades - Keep Away 22288 818-556C Danger: Thrown Object Hazard 22288 818-142C Danger: Rotating Driveline Hazard - Keep Away RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 14 Table of Contents Important Safety Information 22288 838-094C Warning: High Pressure 22296 818-540C Danger: Guard Missing - Do Not Operate 22296 818-552C Danger: Rotating Driveline Hazard - Keep Away RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 15: Using This Manual

    Pull-type and three-point type hitches are available. The and serial number on the inside cover page and again on RCR2596 is designed for a category I or II three-point the warranty page. Always provide model number and hitch and the RCR2510 and RCRM2510 are designed for serial number when ordering parts and in all a category II or III three-point hitch.

  • Page 16: Section 1: Assembly & Set-Up

    If a part or Manual RCR2596 ......Cat. l or ll fastener is temporarily removed for RCR2510 &...

  • Page 17: Torque Requirements

    T-Gearbox Operator’s Manual. Remove temporary solid plugs on top Figure 1-2 of gearboxes and replace with included 3/8" vent plug. See your nearest Land Pride dealer if vent plugs are Remove 3/8" Solid Plug & missing. Install Vent Plug Torque Requirements Refer to “Torque Values Chart”...
  • Page 18 4. Route hydraulic hose through the hose holder loop. Refer to Figure 1-4 for RCR2596 hitch assembly and 5. Remove parking jack (#10) from its storage position Figure 1-5 for RCR2510 hitch assembly: on the deck and attach to the tongue (#1).
  • Page 19 (#8) from slip-clutch end of driveline (#2). Refer to Figure 1-6: 4. Slide slip-clutch end of driveline onto gearbox input Equal angle drivelines can be installed on RCR2596, shaft until hole in yoke aligns with notch in shaft. RCR2510, and RCRM2510. Maximum turning angle is limited to 35 degrees.
  • Page 20 4. Slide slip-clutch end of driveline onto input shaft of gearbox (#6) until hole in yoke aligns with notch in input shaft. 22304 RCR2510 & RCRM2510 Constant Velocity Driveline Assembly Figure 1-7 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 21: Safety Chain

    4. Back tractor up to cutter hitch until holes in the drawbar and clevis (#6) are aligned. RCR2510 jack storage location shown with arrow. Jack storage location is on the deck top for RCR2596 & RCRM2596 cutters. Pull-Type Tractor Hook-Up Figure 1-8 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 22: Driveline Installation

    3/4"-10 x 1 3/4 GR5 cap screws (#13) and input shaft until hole in yoke aligns with notch in shaft. lock nuts (#14). 22289 Lift Type Cutter 3-Point Assembly Figure 1-9 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 23: Point Hook-Up

    Rotate gearbox shield access doors closed and snap NOTE: Land Pride’s Quick Hitch can be attached to in place. the tractor to provide quick and easy 3-point hook- up and detachment. See your nearest Land Pride 8.

  • Page 24: Driveline Hook-Up

    If needed, shut tractor off and move or remove prevent it from falling out. drawbar to prevent driveline damage. 8. The center 3-point link should be adjusted to allow for lateral float. Please consult you tractor’s manual for adjusting instructions. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 25 Pull on driveline yokes at the tractor and implement end to make sure it is secured to the tractor power take-off shaft and implement gearbox shaft. 8. Continue with “Check Driveline Interference” on page 23. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 26: Check Driveline Collapsible Length

    If “A” is less than 1", continue with step 7 on 12. Continue with “Check Driveline Interference” on page 22. page 23. • If “A” is greater than or equal to 1", skip to “Check Driveline Interference” on page 23. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 27: Check Driveline Interference

    Check to make sure the driveline angle does not to prevent inadvertent falling in transport. exceed 25 degrees above horizontal as shown in Figure 1-14. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 28: Section 2: Assembly Of Optional Equipment

    Refer to Figure 2-3: Install rear chain shield (#1) with 1/2" -13 x 1 1/2" long carriage bolts (#2) and 1/2" flange nuts (#3) as shown. 16258 Rear Chain Shield Figure 2-3 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 29 Install rear rubber shield (#1) and rear shield strap (#2) with 1/2" -13 x 1 1/2" long carriage bolts (#3) and 1/2" flange nuts (#4) as shown. 16266 Rear Rubber Shield Figure 2-6 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 30: Section 3: Adjustments

    (#2) until deck is slightly lower by an equal amounts on both sides. 6. Be sure that the right and left leveling rods are equally tight and then re-tighten jam nuts (#1). RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 31: Deck Leveling From Front To Rear

    2. Adjust the top center 3-point link until the cutter hitch pin is vertically above the lower lift arm hitch pins. 3. Lock center link in this position once correct length is achieved. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 32: Tailwheel Height Adjustment

    3. Adjust tailwheel up or down to desired cutting height by repositioning adjusting plate (#3) and then replacing the hardware. 4. Tighten 1/2" flange nut (#2) to the correct torque. Refer to “Torque Values Chart” on page 50. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 33: Operating Checklist

    RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 34: Section 4: Operating Procedures

    6. Carefully raise and lower implement to ensure that the drawbar, tires, and other equipment on the tractor do not contact cutter frame or driveline. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 35: Blade Engagement & Disengagement

    3. Check blades for a lock-up situation. Block cutter deck up before working under the unit. Unlock blades, remove support blocks, and repeat “Blade Engagement” instructions. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 36 11934 Conventional U-Joint Driveline Figure 4-1 20795 CV Driveline Figure 4-2 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 37 8. Use parking jack (#1) to raise and lower cutter tongue to the height needed to disconnect clevis hitch from tractor drawbar. 9. Remove 1"-8 x 4 1/2" hex bolt (#3), flat washers (#5), and locknut (#4) from the clevis hitch (#6). RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 38 With a little practice on and the cutter is on the ground in mowing position. you will be pleased with what you and your Land Pride Start the tractor and reduce engine speed to low idle.

  • Page 39: Section 5: Maintenance & Lubrication

    3. Replace wheel rims and tires as needed with • Buildup of debris around moving components and genuine Land Pride parts. Do not loosen split rim gearboxes is a fire hazard. Keep rotating parts and hardware (#1) until all air pressure in the tire has been removed.

  • Page 40: Skid Shoe Maintenance

    Do not sharpen back side of blade. f. Both blades should weigh the same with not more than 1 1/2 oz. difference. Unbalanced blades will cause excessive vibration which can damage gearbox bearings and create structural cracks. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 41 14. If replacing dishpan (#4), nut (#7) on gearbox output Cutter Blade Assembly shaft should be torqued to 450 ft-lbs. minimum and Figure 5-4 cotter pin (#8) installed with both legs bent opposite directions around nut (#7). RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 42: Clutch Run-In

    39 for exact spring length. 6. The clutch should be checked during the first hour of cutting and periodically each week. An additional set of scribe marks can be added to check for slippage. RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 43: Clutch Disassembly

    1.09"(S/N 566919+) 826-221C Jack Shaft 1000 1.02" (S/N 566918-) 826-226C Stub Shaft 14714 1.27" 826-888C Main 1000 4-Plate Slip Clutch Assembly (540 rpm Shown) (32.2 mm) Figure 5-6 Clutch Adjustment Figure 5-7 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 44 RCR(M)2510 Dual End Flex Couplers Flex Couplers Figure 5-8 Refer to Figure 5-9: Replace four rubber discs (#4), (Land Pride Part No. RCR2596 Dual End Flex Couplers 19-075), as follows. If additional repair parts are required, Refer to Figure 5-8: refer to Land Pride’s Parts Manual 327-088P.

  • Page 45: Long Term Storage

    4. Repaint parts where paint is worn or scratched to prevent rust. Ask your Land Pride dealer for aerosol touch-up paint. Paint is also available in touch-up bottles with brush, quarts, and gallon sizes by adding TU, QT, or GL to the end of the aerosol part number.

  • Page 46: Lubrication Points

    Quantity = Until grease purges from the relief hole Hours Pillow Block Bearing (Pull-Type Cutter) (RCR2510 & RCRM2510) Type of Lubrication: Grease Quantity = As required 16279 Required Ratchet Jack Type of Lubrication: Multi-Purpose Quantity = As required 2462 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 47 NOTE: Use a suction or siphon pump to drain gearbox of oil when there is not an oil drain plug. 35008 Hours Dual End Flex Coupler Type of Lubrication: Grease Quantity = As required RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 48: Driveline U-Joints

    Quantity = 6 pumps 27845 27847 Hours Driveline Profiles Without Grease Zerk Quantity = Clean & coat the inner tube of the driveline with a light film of grease and then reassemble. 14618 RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 49: Section 6: Specifications & Capacities

    4" x 8" x 15 1/4" Laminated Pull-type (2 ea.) 6" x 9" x 21" Laminated or 24" recap aircraft tires Optional safety shields Front & rear chain/ front & rear rubber RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 50 Table of Contents Section 6: Specifications & Capacities 38 1/2" RCR2596 = 102" 10 3/4" RCR2510 & RCRM2510 = 108" 26815 3-Point Type RCR25 Series RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...
  • Page 51 Table of Contents Section 6: Specifications & Capacities RCR2596 = 144 1/4" 13 1/4" RCR2510 & RCRM2510 = 153 1/2" 37 1/4" 26816 Pull Type RCR25 Series RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 52: Section 7: Features And Benefits

    Pull-type fits older tractors without a top link or smaller tractors without enough lift capacity. 3-Point or pull-type (RCR2596 3-point: Cat. 1 & 2) (RCR2510 & RCRM2510 3-point: Cat. 2 & 3) RCR2596 cuts 8'-0" width. High productive cutting width RCR2510 &...

  • Page 53: Section 8: Troubleshooting

    Blades loose Tighten blade bolts Blade carrier bent Replace blade carrier Excessive vibration Blade broken Replace blade Blade will not swing Remove and inspect blade Blades have unequal weight Replace both blades RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 54: Section 9: Torque & Tire Inflation Charts

    35 to 40 ft-lbs. (Beaded washer should be embedded halfway into rubber Blade Bolt Locknut 450 ft-lbs Blade Carrier Hub Nut 450 ft-lbs minimum Wheel Lug Nuts 85 ft-lbs Tire Inflation Chart Tire Size Inflation PSI 24" x 7.7" AC Tire RCR2596, RCR2510, and RCRM2510 Rotary Cutters 312-753M 7/29/20...

  • Page 55: Warranty

    This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items such as blades, belts, tines, etc. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 56 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
