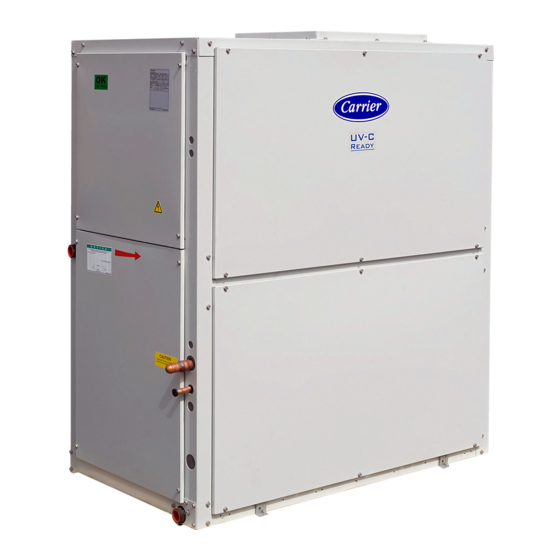

Carrier Gemini 38AUZ 08 Series Installation, Start-Up And Service Instructions Manual

Carrier Gemini 38AUZ 08 Series Installation, Start-Up And Service Instructions Manual

Air-cooled condensing units with puron (r-410a) refrigerant

Advertisement

Installation, Start-Up and Service Instructions
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . 1
INSTALLATION GUIDELINES . . . . . . . . . . . . . . . . . . . 2
R-22 to Puron Refrigerant . . . . . . . . . . . . . . . . . . . 2
Rated Indoor Airflow (cfm) . . . . . . . . . . . . . . . . . . . . . 2
Identify Factory Options . . . . . . . . . . . . . . . . . . . . . . . 3
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Jobsite Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Step 1 - Plan for Unit Location . . . . . . . . . . . . . . . . 6
Step 4 - Rig and Mount the Unit . . . . . . . . . . . . . . . 7
Suction Riser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Step 7 - Install Accessories . . . . . . . . . . . . . . . . . . 13
PRE-START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Turn On Crankcase Heater . . . . . . . . . . . . . . . . . . . . 20
Preliminary Charge . . . . . . . . . . . . . . . . . . . . . . . . . . 20
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Preliminary Checks . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Start Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
OPERATING SEQUENCE . . . . . . . . . . . . . . . . . . . . . 29
Base Unit Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 29
38AUDC with SVR Relays . . . . . . . . . . . . . . . . . . . . . 30
All Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
(and 30 days after initial start) . . . . . . . . . . . . . . . 31
Seasonal Maintenance . . . . . . . . . . . . . . . . . . . . . . . 31
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . 31
Comfort Alert Diagnostic Module . . . . . . . . . . . . . . 33
Compressor Protection . . . . . . . . . . . . . . . . . . . . . . 35
Fastener Torque Values . . . . . . . . . . . . . . . . . . . . . . 36
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . 36
APPENDIX B - WIRING DIAGRAMS . . . . . . . . . . . . 38
START-UP CHECKLIST . . . . . . . . . . . . . . . . . . . . . CL-1
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53380032-01
Printed in U.S.A.
Form 38AU-7-14-04SI
Air-Cooled Condensing Units
®
with Puron
(R-410A) Refrigerant

SAFETY CONSIDERATIONS

Improper
installation,
maintenance, or use can cause explosion, fire, electrical shock or
other conditions which may cause personal injury or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory-authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses and work gloves. Use
quenching cloths for brazing operations and have a fire
extinguisher available. Read these instructions thoroughly and
follow all warnings or cautions attached to the unit. Consult local
building codes and appropriate national electrical codes (in USA,
ANSI/NFPA70, National Electrical Code (NEC); in Canada, CSA
C22.1) for special requirements.
It is important to recognize safety information. This is the safety-
alert symbol
. When you see this symbol on the unit and in
instructions or manuals, be alert to the potential for personal
injury.
Understand the signal words DANGER, WARNING, CAUTION,
and NOTE. These words are used with the safety-alert symbol.
DANGER identifies the most serious hazards which will result in
severe personal injury or death. WARNING signifies hazards
which could result in personal injury or death. CAUTION is used
to identify unsafe practices, which may result in minor personal
injury or product and property damage. NOTE is used to highlight
suggestions which will result in enhanced installation, reliability,
or operation.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning will result in personal injury or
death.
Before performing service or maintenance operations on unit,
turn off main power switch to unit and install lock(s) and lock-
out tag(s). Ensure electrical service to rooftop unit agrees with
voltage and amperage listed on the unit rating plate. Unit may
have more than one power switch.
WARNING
UNIT OPERATION AND SAFETY HAZARD
Failure to follow this warning could cause personal injury,
death and/or equipment damage.
R-410A refrigerant systems operate at higher pressures than
standard R-22 systems. Do not use R-22 service equipment or
components on R-410A refrigerant equipment.
Pg 1
Gemini™
38AU**07-14
adjustment,
alteration,
DANGER
12-19
Replaces: 38AU-7-14-03SI
service,
